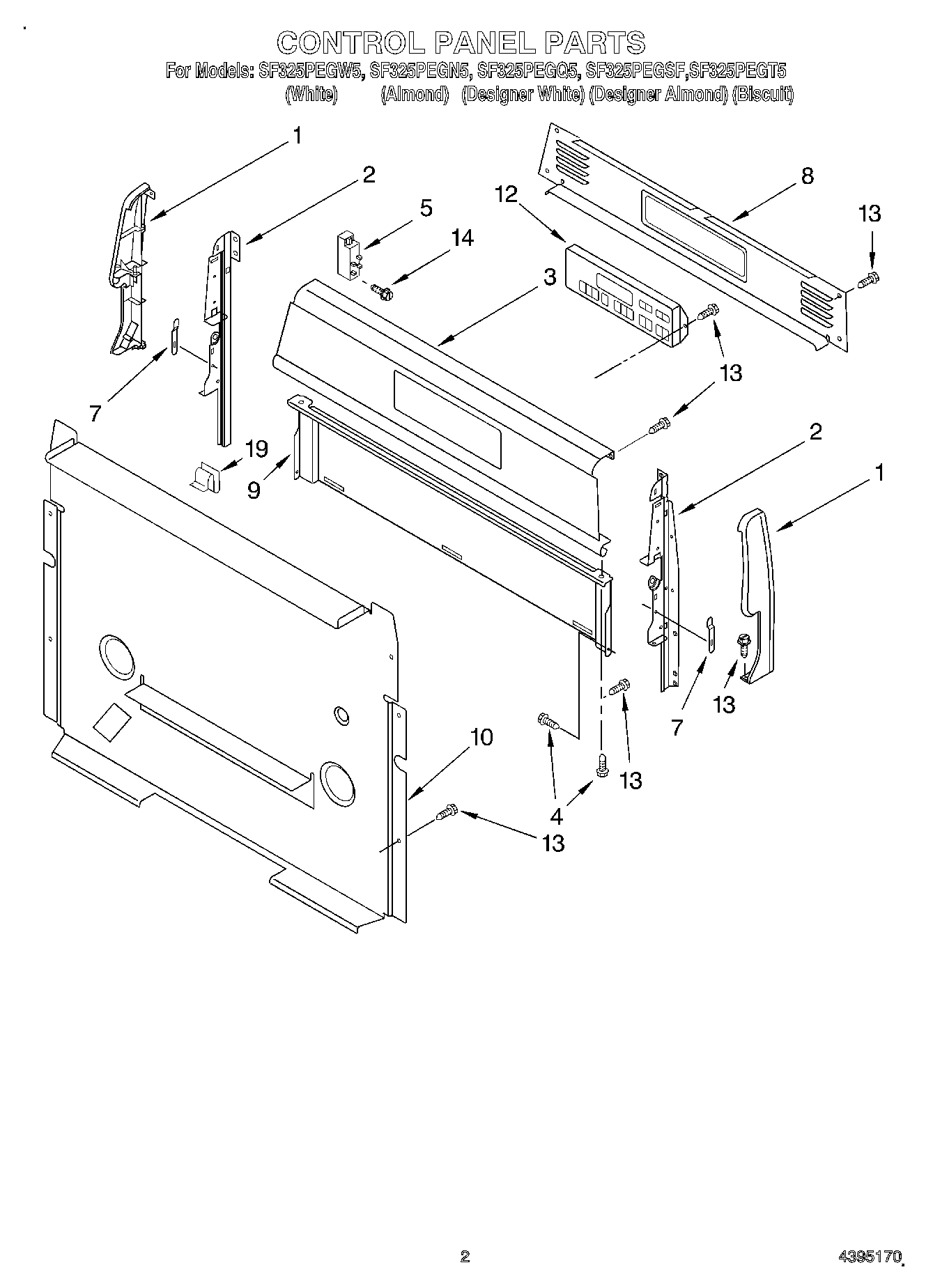

SF325PEGQ5 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Biscuit Right Hand)
1	Endcap (Black Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Almond Left Hand)
1	Endcap (Almond Right Hand)
1	Endcap (Biscuit Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Almond)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	Screw
5	WP8053421 Whirlpool Oven Spark Module
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
12	Control, Range (Black)
12	Control, Range (White)
12	Control, Range (Almond)
12	Control, Range (Biscuit)
13	SCREW
14	WPY706189 Whirlpool Stove Screw
19	WP8273564 Whirlpool Clip
