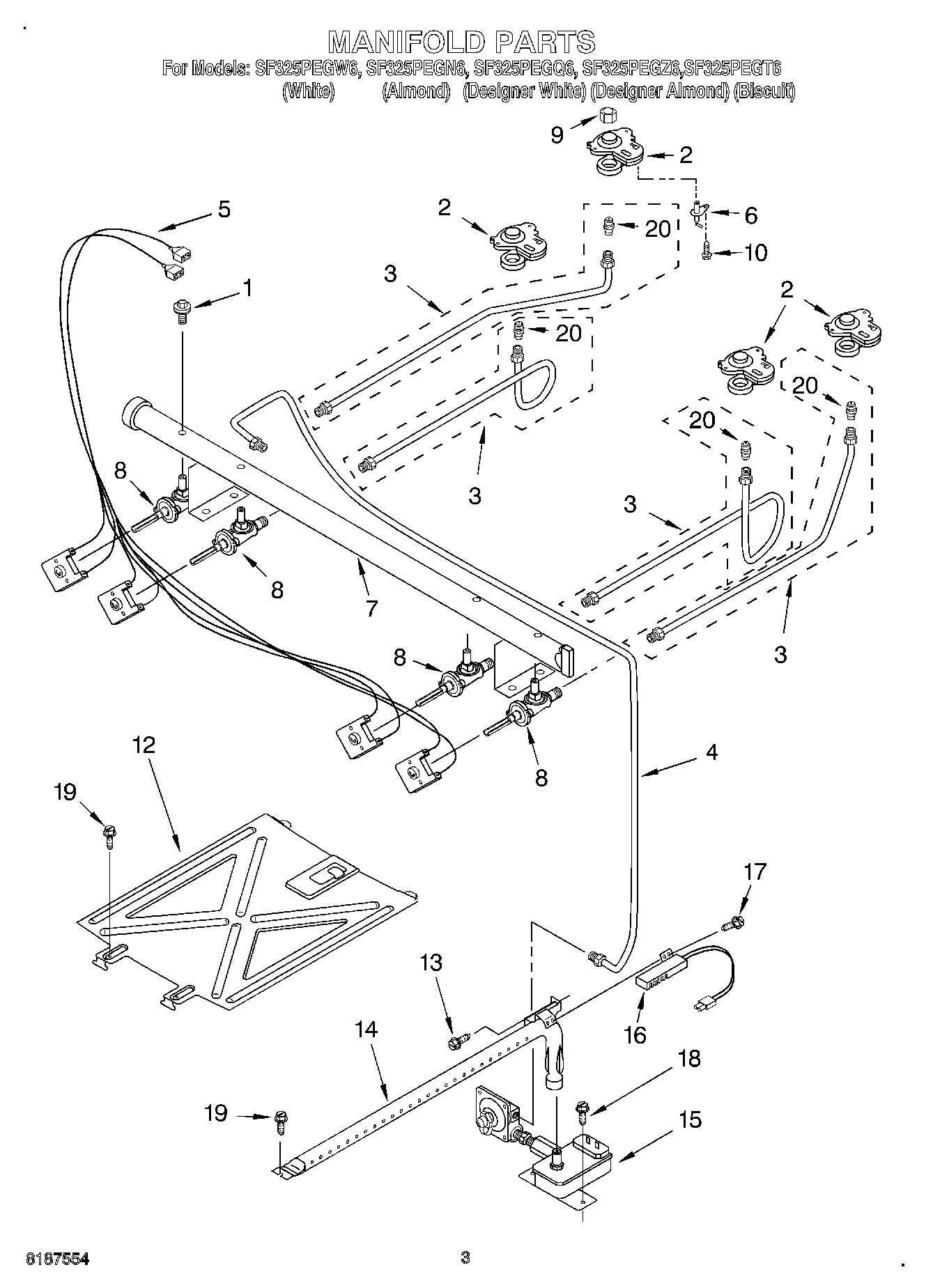

SF325PEGT6 03 – MANIFOLD

Products

PositionProduct
1WP8273096 Whirlpool Screw
2WP8273700 Whirlpool Base Burner
2Burner Base (Small (1))
3Tubing, Burner W/Orifice (Left Rear)
3Tubing, Burner W/Orifice (Right Rear)
3Tubing, Burner W/Orifice (Right Front)
3WP8273693 Whirlpool Gas Tubing
4Tubing (Manifold to Regulator)
5Harness, Igniter (W/Switches)
6WP8523793 Whirlpool Oven Surface Igniter
7Pipe, Manifold
8WP9757218 Whirlpool Burner Valve
8Valve (Right Rear)
9Nut (4)
10WP8273062 Whirlpool Screw
12Spreader, Flame (Oven)
133196265 Whirlpool Oven Screw
14Burner, Bake
15Valve, Gas Combo
16WP3186491 Whirlpool Oven Igniter
17W11684507 Whirlpool Screw
19SCREW
20WP8273067 Whirlpool Orifice
20WP8273066 Whirlpool Orifice
20WP8273065 Whirlpool Orifice
20Spuds, LP Gas (Kit of 4)
20WP8273064 Whirlpool Orifice
