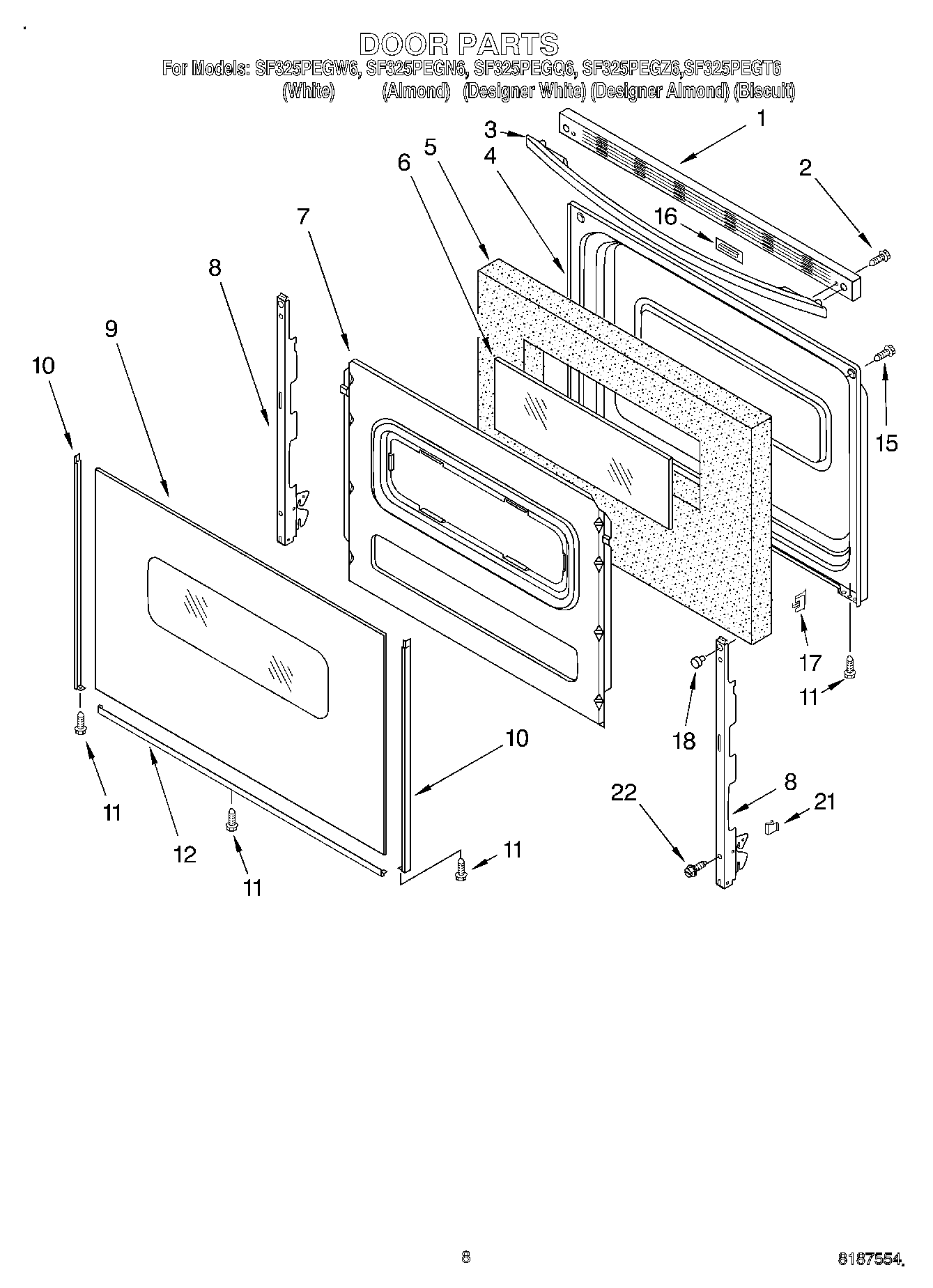

SF325PEGW6 06 – DOOR, OPTIONAL

Products

Position	Product
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
6	WP9758164 Whirlpool Door Glass
7	9761500 Whirlpool Oven Retainer
8	Hinge, Door (2)
9	WP9762476 Whirlpool Door Glass
9	Glass, Door (Biscuit)
9	WP9762477 Whirlpool Glass Door
9	Glass, Outer Door (Almond)
11	W10491985 Whirlpool Screw
12	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
12	8184860 Whirlpool Oven Door Trim
12	8184858 Whirlpool Door Trim
15	WP179051 Whirlpool Screw
16	Plug, Door
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
21	WP3196925 Whirlpool Clip Assembly
22	3400964 Whirlpool Oven Clip
22	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
22	Grease
22	WPL 8273903
22	3196896 Whirlpool Clip
22	WPL 8053527
22	WPL 8274195
22	4392899 Whirlpool Biscuit Touch-Up Paint
22	8212471 Whirlpool Oven Paint
22	1
22	Wire (14 Ga. 200 c Brown)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 799832
22	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
22	511873 Whirlpool Refrigerator Paint
22	4392901 Whirlpool Biscuit Spray Paint
22	350942 Whirlpool Spray Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	WP3196175 Whirlpool Screw
22	Wire, 25` Roll (Black 14 Ga.)
22	Wire, 25` Roll (Red 14 Ga.)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	242831 Whirlpool Oven Wire
22	16515 Whirlpool Clip
22	814381 Whirlpool Pin
22	285006 Whirlpool Spray
22	Wire, 25“ Roll (White 14 GA.)
22	350930 Whirlpool White Spray Paint
