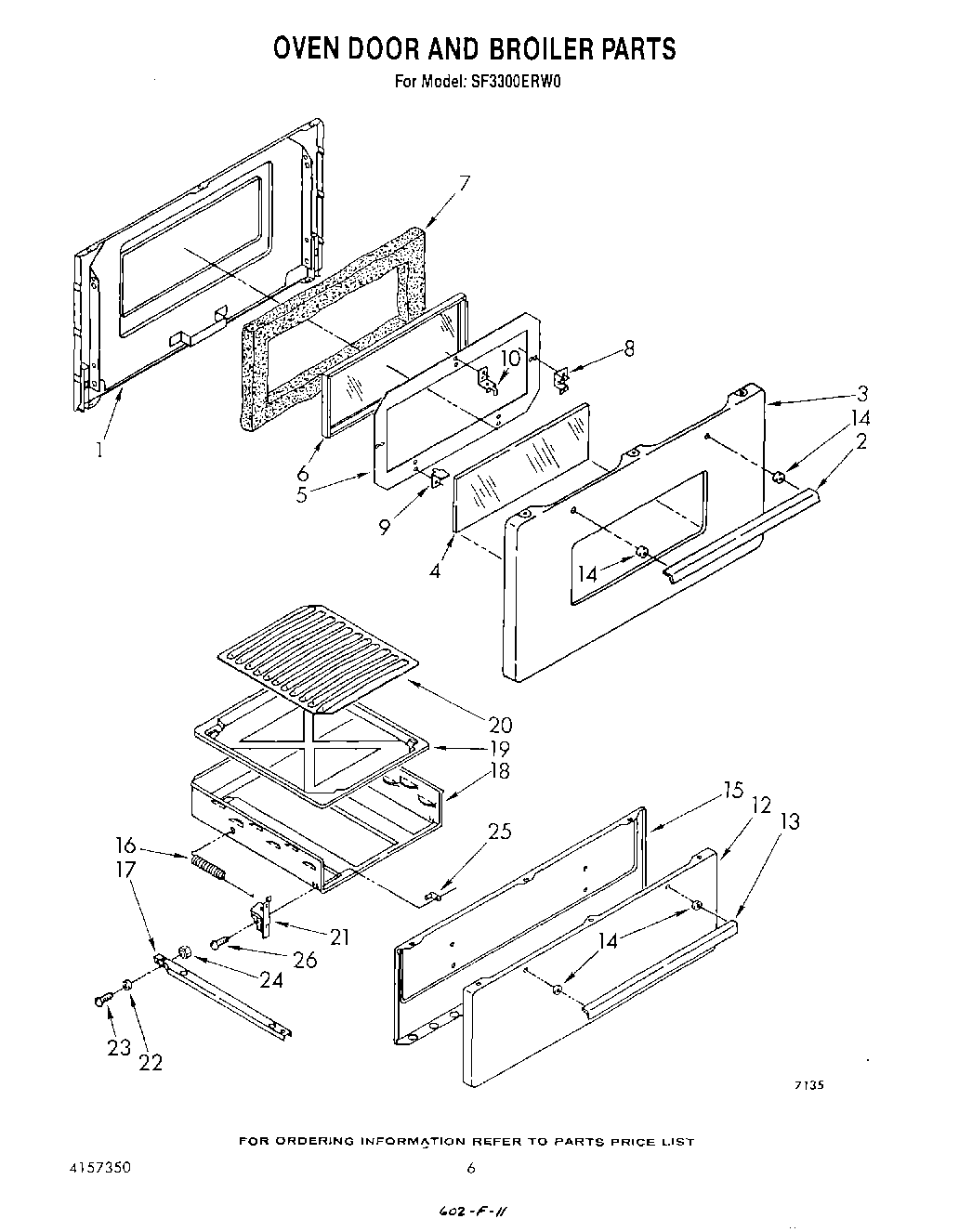

SF3300ERW0 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Shield, Wire (2)
2	Handle, Door
2	Screw, 8-18 X 3/8 (4)
3	Panel, Door (Toast)
3	Panel, Door (Almond)
3	Panel, Door (Platinum)
3	Panel, Door (White)
4	Glass
5	SCREW
5	Baffle
6	Window
7	Insulation
8	Clip, Side (2)
9	Clip, Bottom (2)
10	Clip, Top
12	Panel, Broiler (White)
12	Panel, Side (2) (Platinum)
12	Panel, Broiler (Almond)
12	Panel, Side (2) (Toast)
13	Washer (2)
13	Handle
13	Screw, 10-12 X 5/8 (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (R.H.)
21	Hinge, Door (L.H.)
21	WP308685 Whirlpool Microwave Screw
22	Roller (2)
23	Pin, Roller (2)
24	W10080180 Whirlpool Nut
25	Plate (2)
26	Screw (2)
