SF3300ERW3 02 – EXTERNAL OVEN
Written by
in

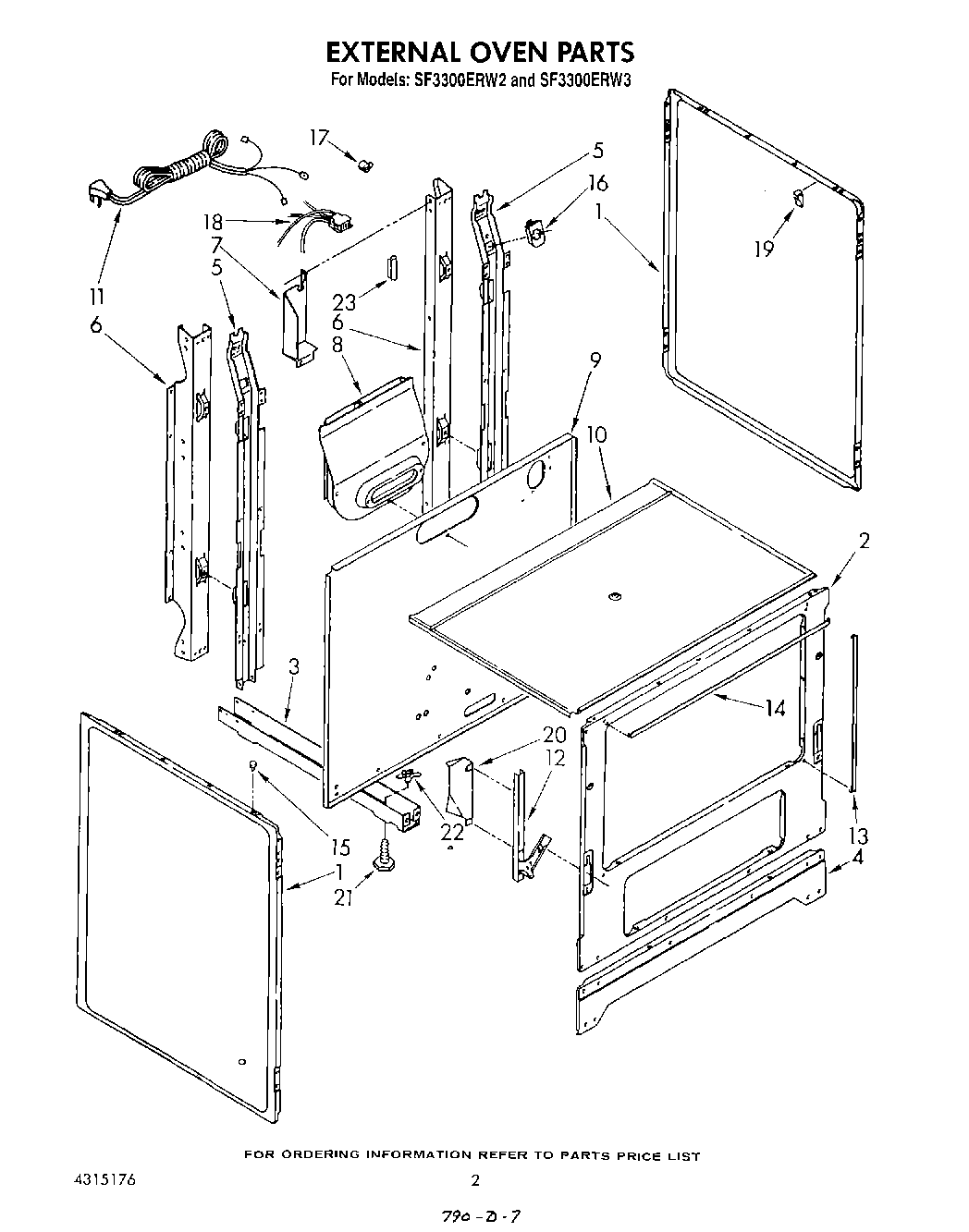

SF3300ERW3 02 – EXTERNAL OVEN
Products
Position
Product
1
Panel, Side (2) (White)
1
Panel, Side (2) (Almond)
2
Frame, Front
3
Rail, Base (2)
4
Base, Front
4
Screw, 10-12 X 1/2 (4)
5
Screw, 10-32 X 1/2 (1)
5
Support, Main (2)
6
Support, Rear (2)
7
Cover, Wire
7
Screw, 10-12 X 3/8 (2)
8
Flue, Box
8
SCREW
9
Panel, Rear
10
WP308685 Whirlpool Microwave Screw
10
Burner Box
11
WP9757891 Whirlpool Power Cord
12
Screw, 10-24 X 3/8 (2)
12
Hinge, Door (2)
13
Seal, Door (2) (Side)
14
Seal, Door (Top)
15
Bumper, Cooktop (2)
16
Bracket, Receptable
17
Strain Relief
18
Block, Disconnect
19
Clip, Wire
20
Shield, Insulation
21
Leg, Leveler (4)
22
Nut (4)
23
Safe Edge
←
