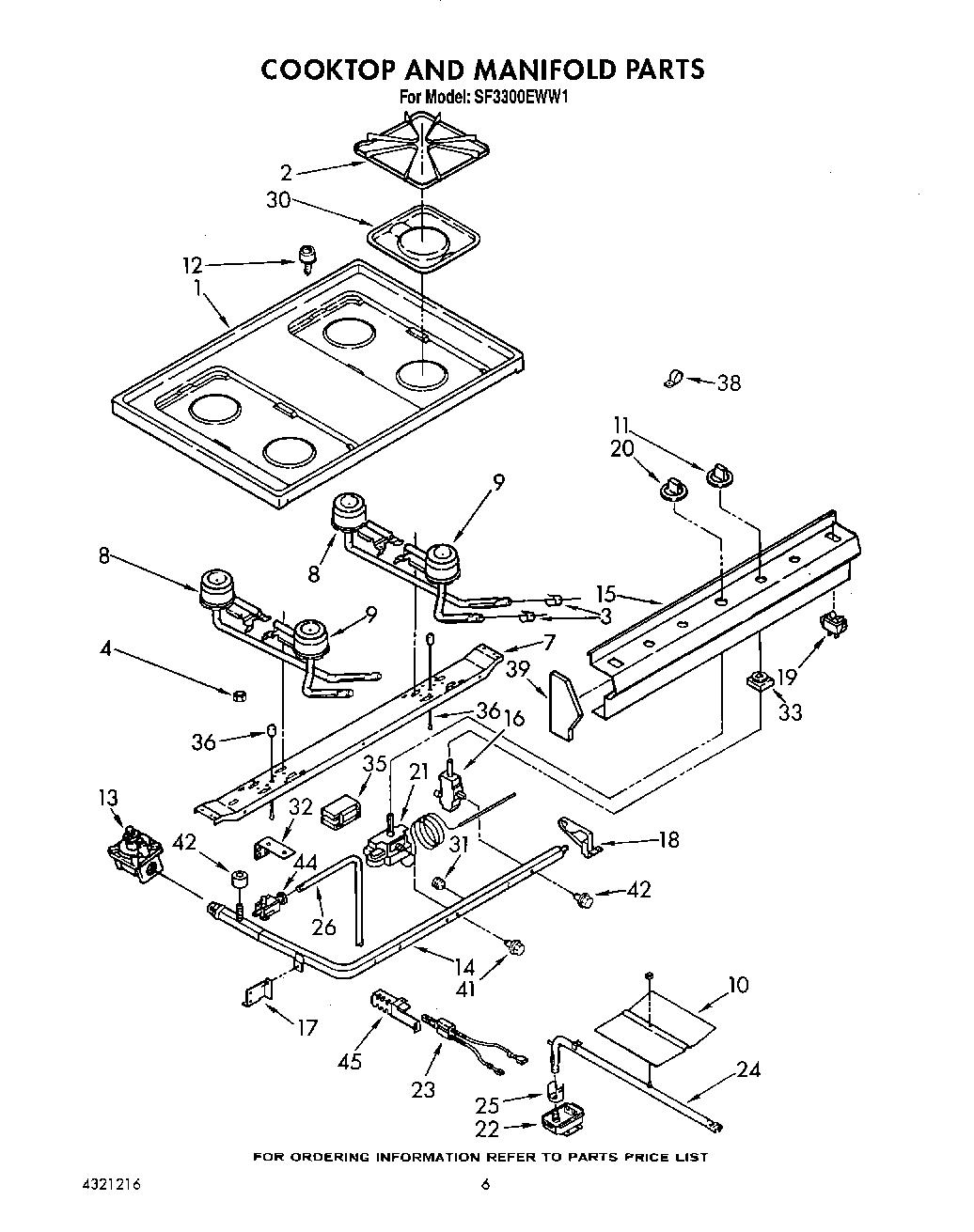

SF3300EWW1 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Guide
	Guide, Cooking
	WPL LIT4321216
	Instuctions, Installation
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
7	Wire, Tie
8	Burner, Rear (2)
9	Burner, Front (2)
10	W10080180 Whirlpool Nut
10	Spreader, Flame
11	WP4320580 Whirlpool Knob Assembly
12	Screw, 10-12 X 1/2 (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	Burner, Oven
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
22	Screw, 10-12 X 1/2 (6)
23	Screw, 10-12 X 3/8 (2)
23	Pilot
24	Manifold
25	Shutter, Burner
26	Burner, Oven
30	WPY0060872 Whirlpool Drip Pan
31	W10295523 Whirlpool Plug
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
35	Module, Spark
36	Ignitor (L.H.)
36	Ignitor (R.H.)
38	Strain Relief
39	Endcap (R.H.)
39	Endcap (L.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
44	Valve, Shut Off
45	WPW10208653 Whirlpool Insulation
45	FOIL, ALUMINUM OVEN (18“ X 25 )
45	Bumper, Rubber (2)
