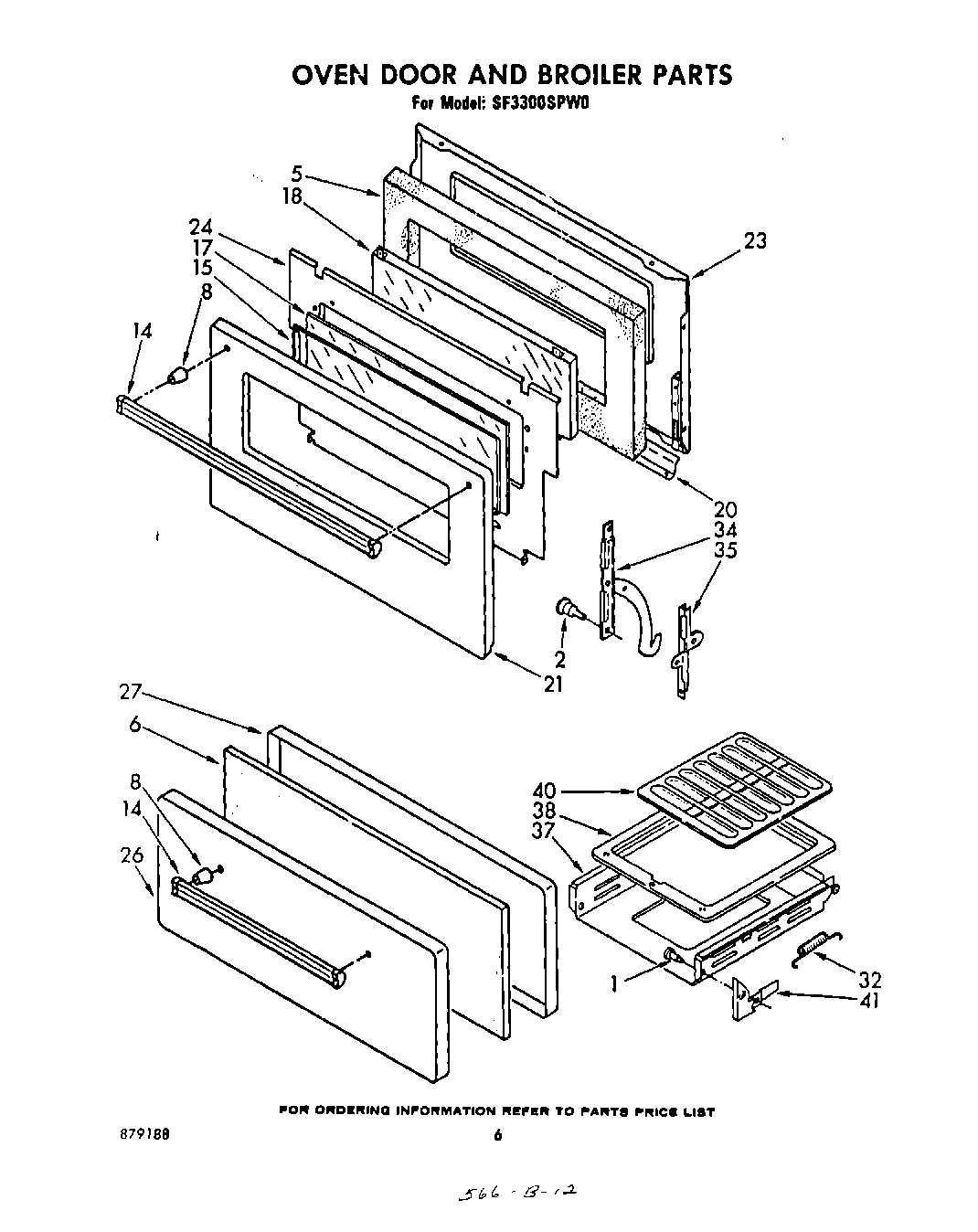

SF3300SPW0 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16
2	Bolt, Shoulder 10-24 x 7/16 (2)
5	WPW10208653 Whirlpool Insulation
6	Insulation, Broiler Door
8	Spacer, Oven Door Handle (2)
14	Handle, Oven Door
15	Bezel, Oven Door
17	Glass, Oven Door (Outside)
18	Glass, Oven Door
20	Strip, Door Seal
21	Panel, Oven Door (Almond)
21	Panel, Oven Door (White)
21	panel, oven door (toast)
21	Panel, Oven Door (Platinum)
23	Lining, Oven Door
24	Baffle, Door
26	Panel, Broiler Door (Toast)
26	Panel, Broiler Door (White)
26	Panel, Broiler Door (Almond)
26	Panel, Broiler Door (Black)
26	Panel, Broiler Door (Platinum)
27	Lining, Broiler Door
32	Spring, Broiler Door (2)
34	Hinge, Oven Door (2)
35	Support, Oven Door (Right Side)
35	Support, Oven Door (Left Side)
37	Drawer, Broiler
38	Pan, Broiler
40	Tray, Broiler Pan
41	Hinge, Broiler Door (Right Side)
41	Hinge, Broiler Door (Left Side)
