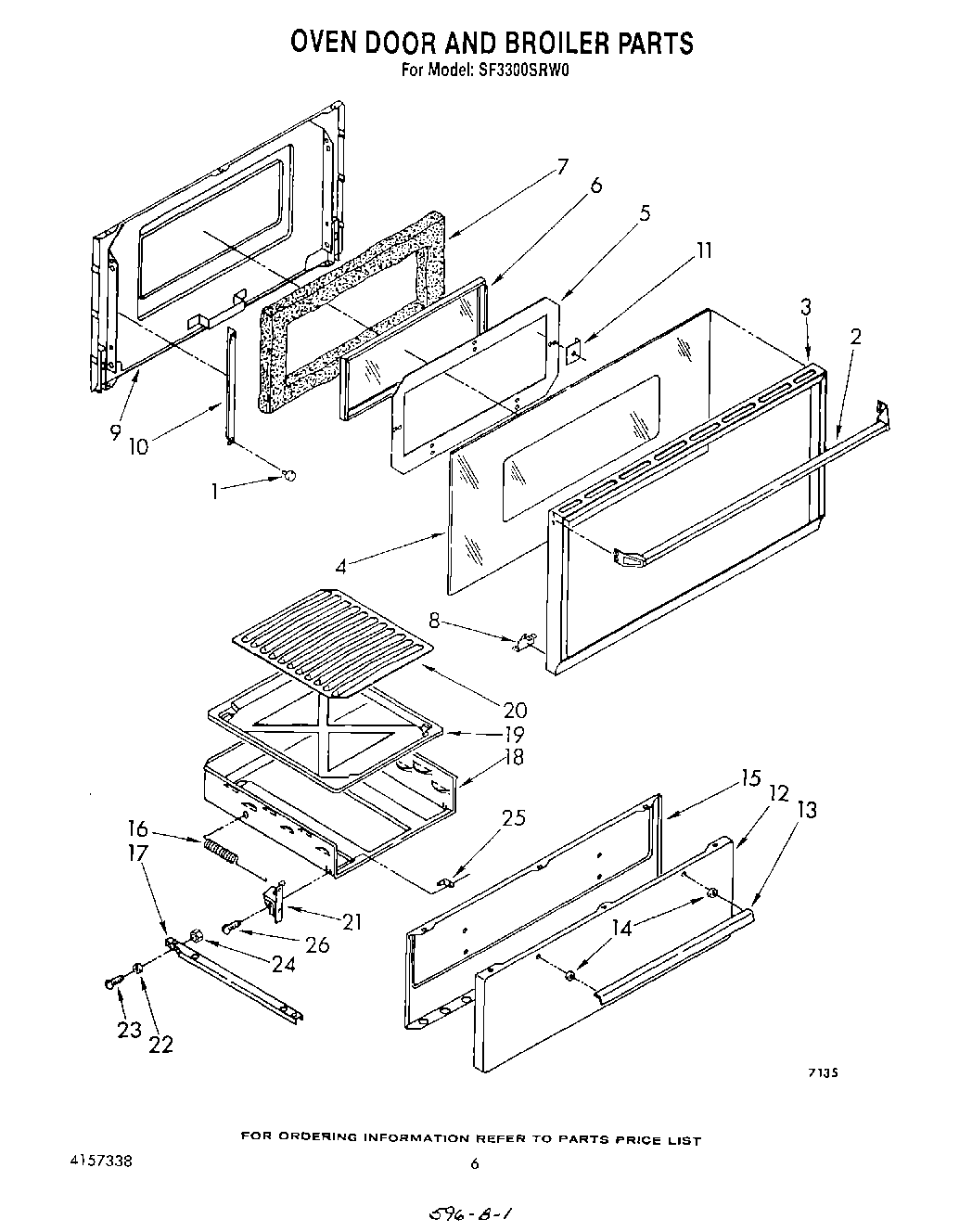

SF3300SRW0 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Screw, 8-18 X 3/8 (4)
2	Handle, Door
3	Frame, Door
4	Glass
5	Baffle
6	Window Assy
7	Insulation
8	Support, Glass (Right Hand)
8	Speed Clip (4)
8	Support, Glass
8	SCREW
9	Shield, Wire (2)
10	Support, Glass (2)
11	Plate (2)
12	Panel, Broiler (Almond)
12	Panel, Broiler (Platinum)
12	Panel, Broiler (Toast)
12	Panel, Broiler (White)
13	Handle
13	Screw, 10-12 X 5/8 (2)
13	Washer (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (L.H.)
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (R.H.)
22	Roller (2)
23	Pin, Roller (2)
24	W10080180 Whirlpool Nut
25	Plate (2)
26	Screw (2)
