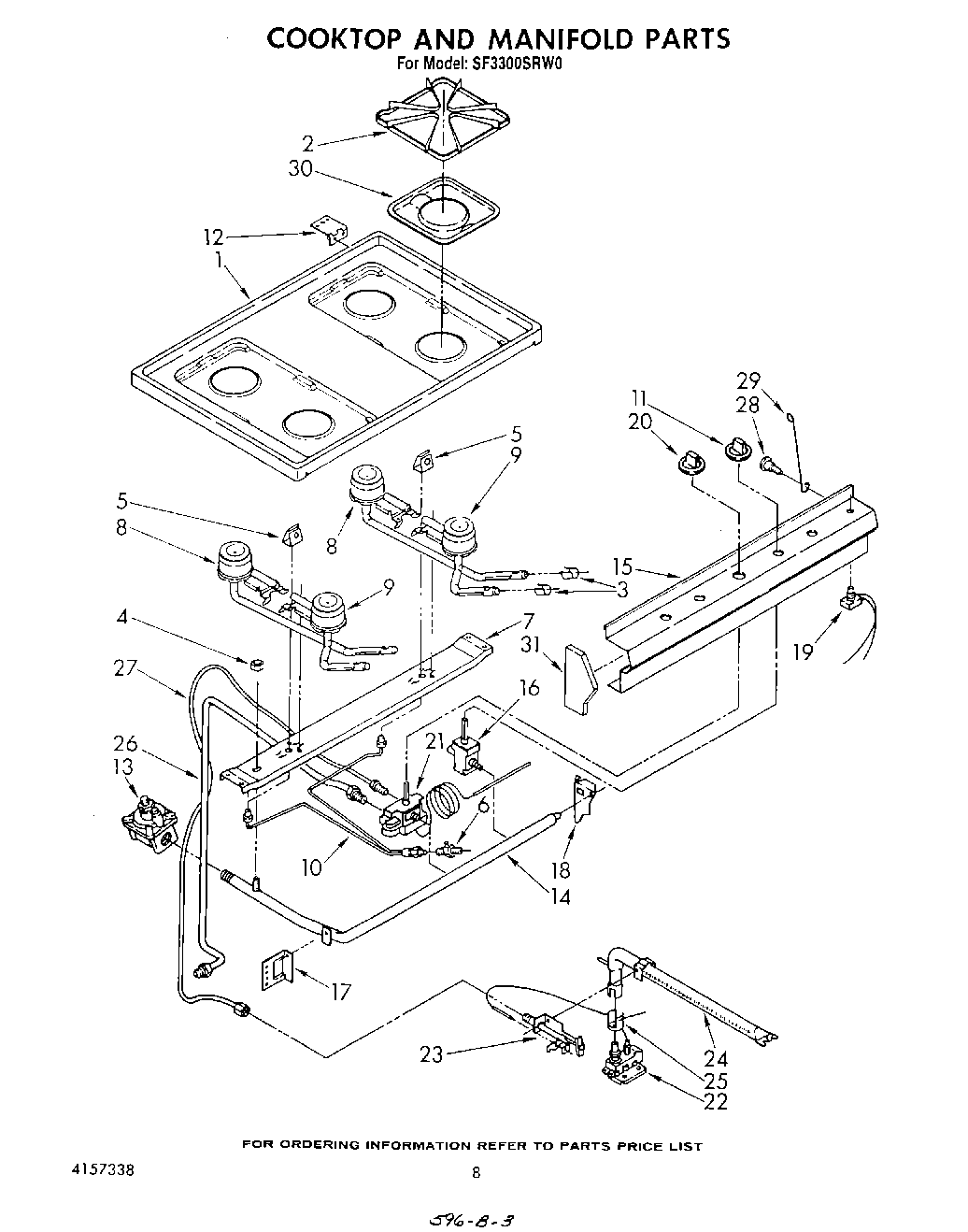

SF3300SRW0 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT786735
Guide
Guide, Cooking
List, Repair Parts
1Cooktop (Almond)
1Cooktop (Toast)
1Cooktop (White)
1Cooktop (Platinum)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12SCREW
12Speed Clip (4)
12Hinge, Maintop (2)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat
22Valve, Safety
22WP3387230 Whirlpool Screw
23Pilot
23Screw, 10-24 X 1/4 (1)
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30WP786333 Whirlpool Drip Bowl
31Endcap (R.H.)
31Endcap (L.H.)
31WPW10208653 Whirlpool Insulation
31FOIL, ALUMINUM OVEN (18“ X 25 )
