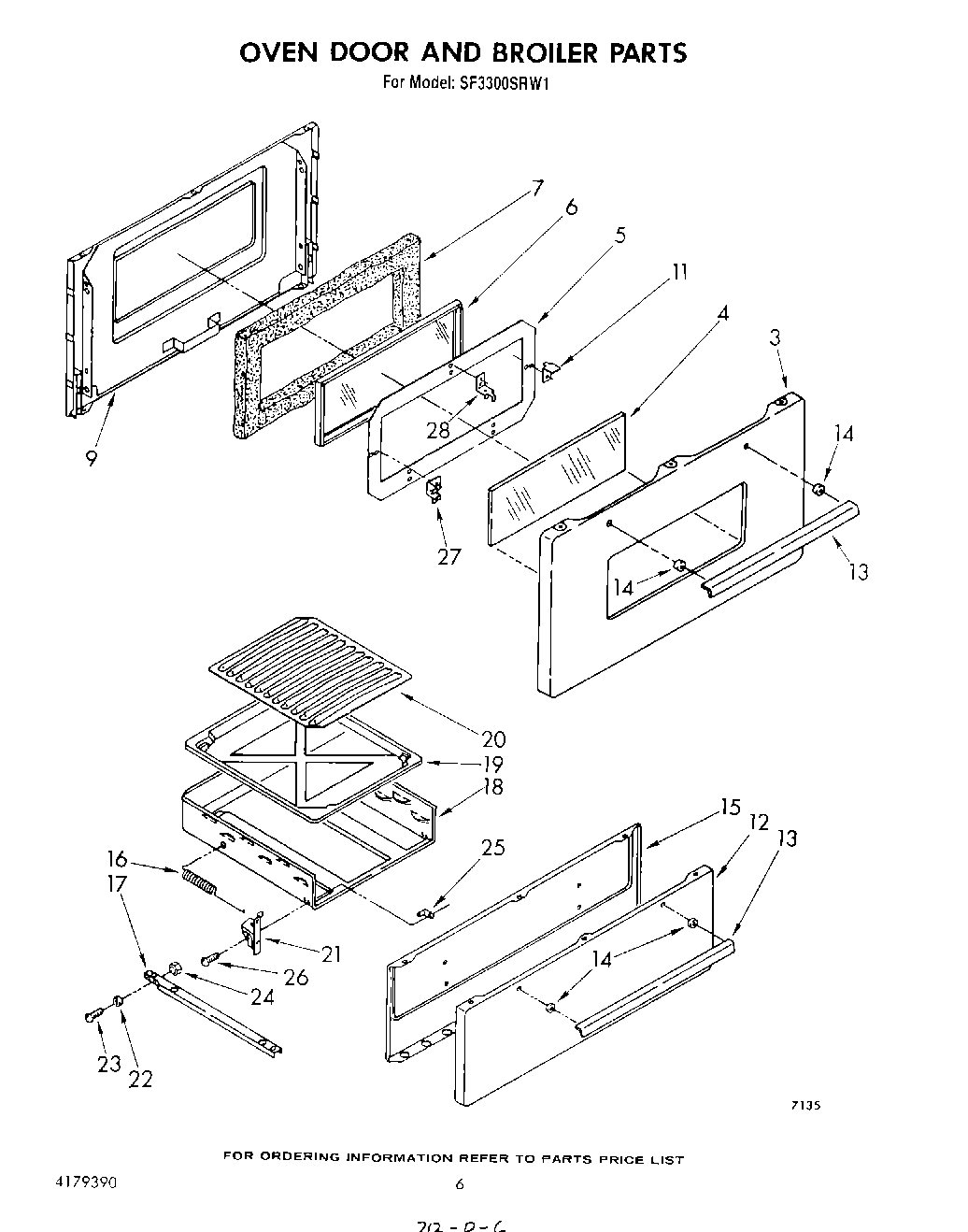

SF3300SRW1 05 – OVEN DOOR AND BROILER

SF3300SRW1 05 – OVEN DOOR AND BROILER

Written by

in

SF3300SRW1 05 – OVEN DOOR AND BROILER

Products

PositionProduct
3Panel, Door (Almond)
3Panel, Door (White)
4Glass
5SCREW
5Baffle
6Window
7Insulation
9Shield, Wire (2)
11Clip, Side (2)
12Panel, Broiler (White)
12Panel, Broiler (Almond)
13Washer (2)
13Handle
13Screw, 10-12 X 5/8 (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door (L.H.)
21W10080180 Whirlpool Nut
21WP308685 Whirlpool Microwave Screw
21Hinge, Door (R.H.)
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
27Clip, Bottom (2)
28Clip, Top
