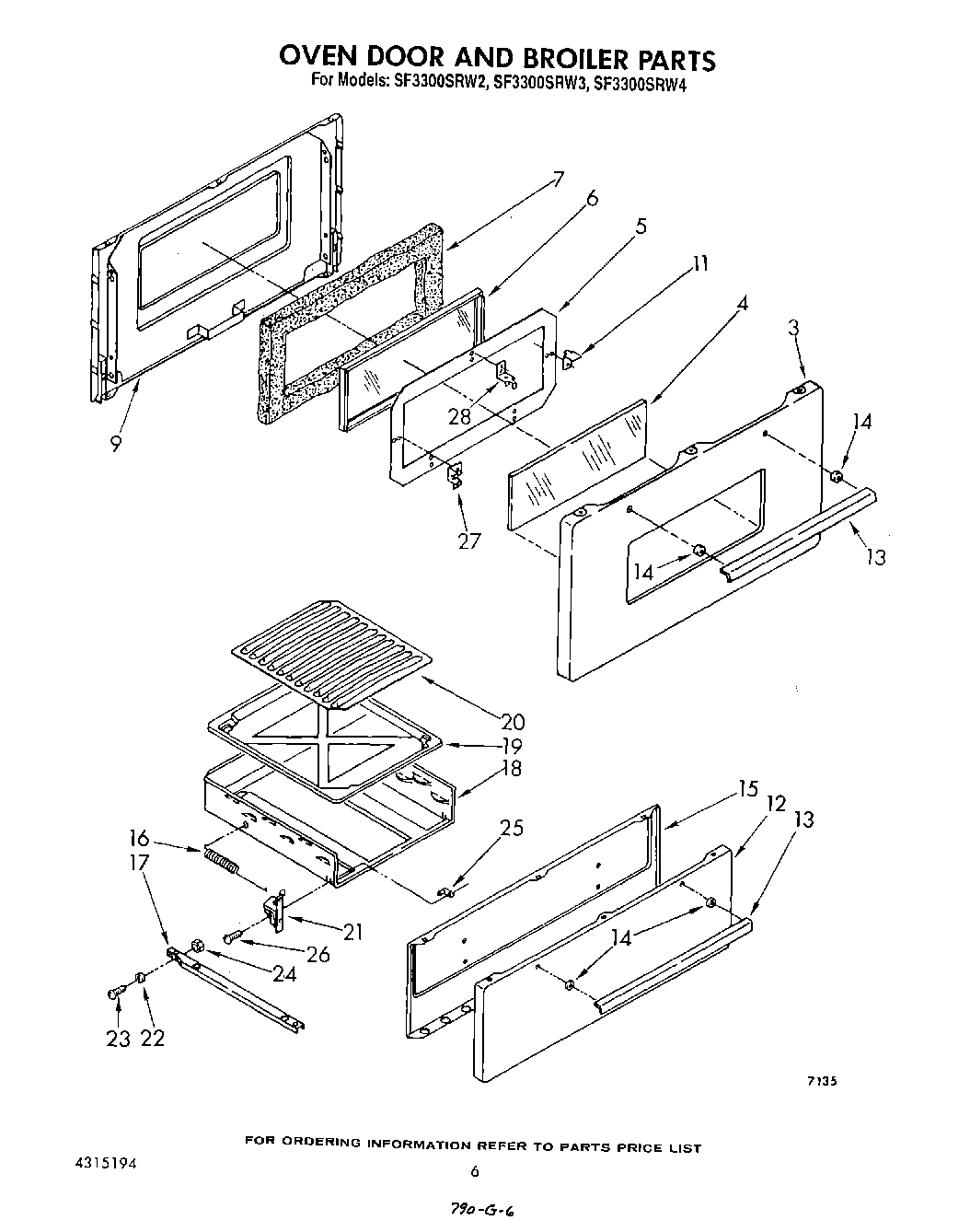

SF3300SRW3 05 – OVEN DOOR AND BROILER

Products

Position	Product
3	Panel, Door (Almond)
3	Panel, Door (White)
4	Glass
5	SCREW
5	Baffle
6	Window
7	Insulation
9	Liner, Door
11	Clip, Side (2)
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Handle
13	Washer (2)
13	Screw, 10-12 X 5/8 (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	W10080180 Whirlpool Nut
21	Hinge, Door (R.H.)
21	Hinge, Door (L.H.)
21	WP308685 Whirlpool Microwave Screw
22	Roller (2)
23	Pin, Roller (2)
25	Plate (2)
26	Screw (2)
27	Clip, Bottom (2)
28	Clip, Top
