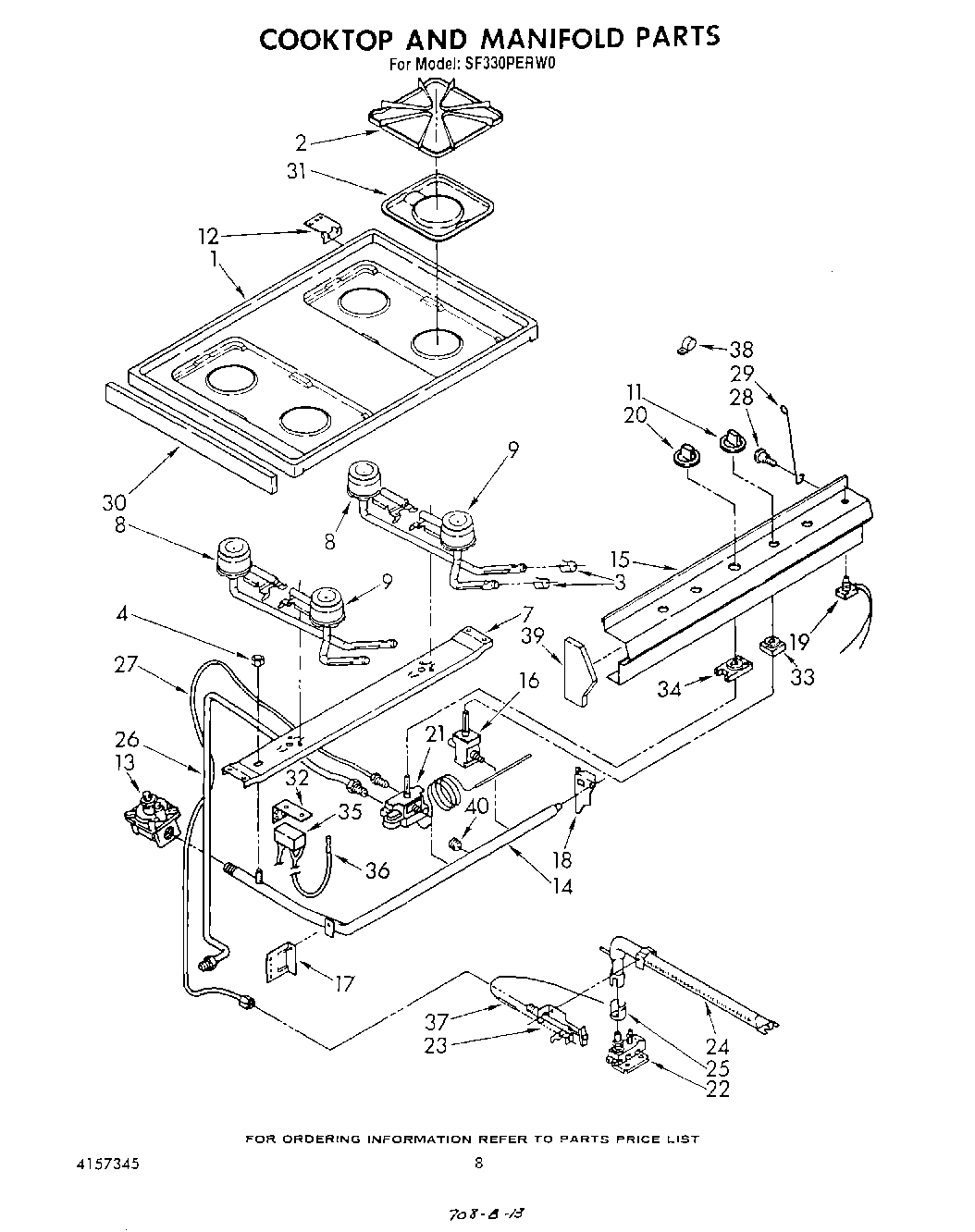

SF330PERW0 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
Guide
Guide, Cooking
WPL LIT786735
WPL LIT4157345
1Cooktop (Almond)
1Cooktop (White)
1Cooktop (Toast)
1Cooktop (Platinum)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
11WP4179282 Whirlpool Knob
12Speed Clip (4)
12SCREW
12Hinge, Maintop (2)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat
22WP3387230 Whirlpool Screw
22Valve, Safety
23Screw, 10-24 X 1/4 (1)
23Pilot
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30WPL 4157189
31WP786333 Whirlpool Drip Bowl
32Plate, Spark Module
33WP4157180 Whirlpool Surface Burner Ignition Switch
34WP878009 Whirlpool Igniter Switch
35Module, Spark
36Ignitor (R.H.)
36Ignitor (L.H.)
37Ignitor, Oven
38Strain Relief
39Endcap (L.H.)
39Endcap (R.H.)
40W10295523 Whirlpool Plug
40WPW10208653 Whirlpool Insulation
40FOIL, ALUMINUM OVEN (18“ X 25 )
