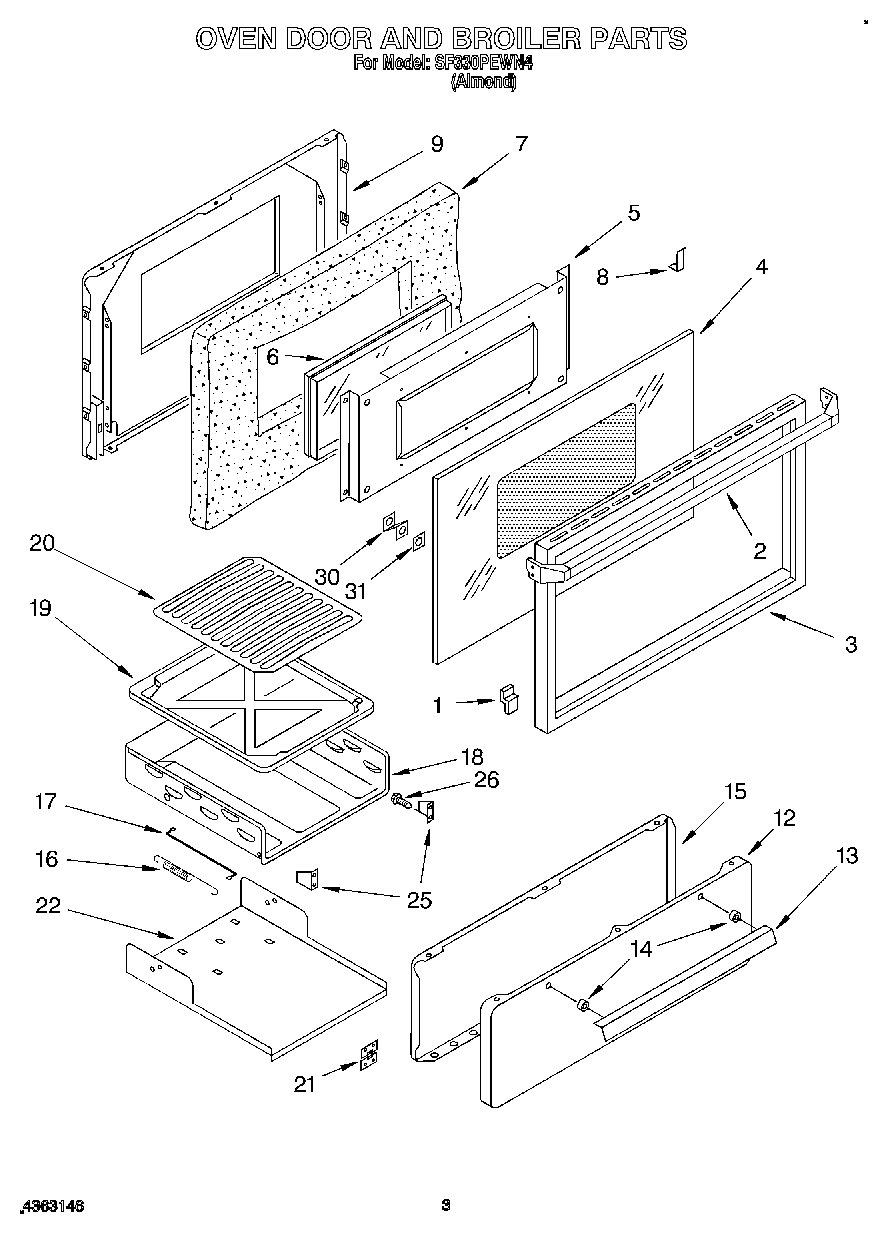

SF330PEWN4 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door
2	Screw, 8-18 X 3/8 (4)
3	Frame, Door
4	Glass, Oven Door
5	Ring, Hold Down
6	Window
7	Insulation
8	Plate (2)
9	Liner, Door
12	Panel, Broiler (Almond)
12	Panel, Broiler (Screw)
13	Handle
13	Screw
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Rod, Push-Pull
18	Body, Brolier
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
21	WP308685 Whirlpool Microwave Screw
22	Carriage Broiler
25	Bracket
30	Bracket “Z“ (8)
31	Bumper, Rubber (2)
