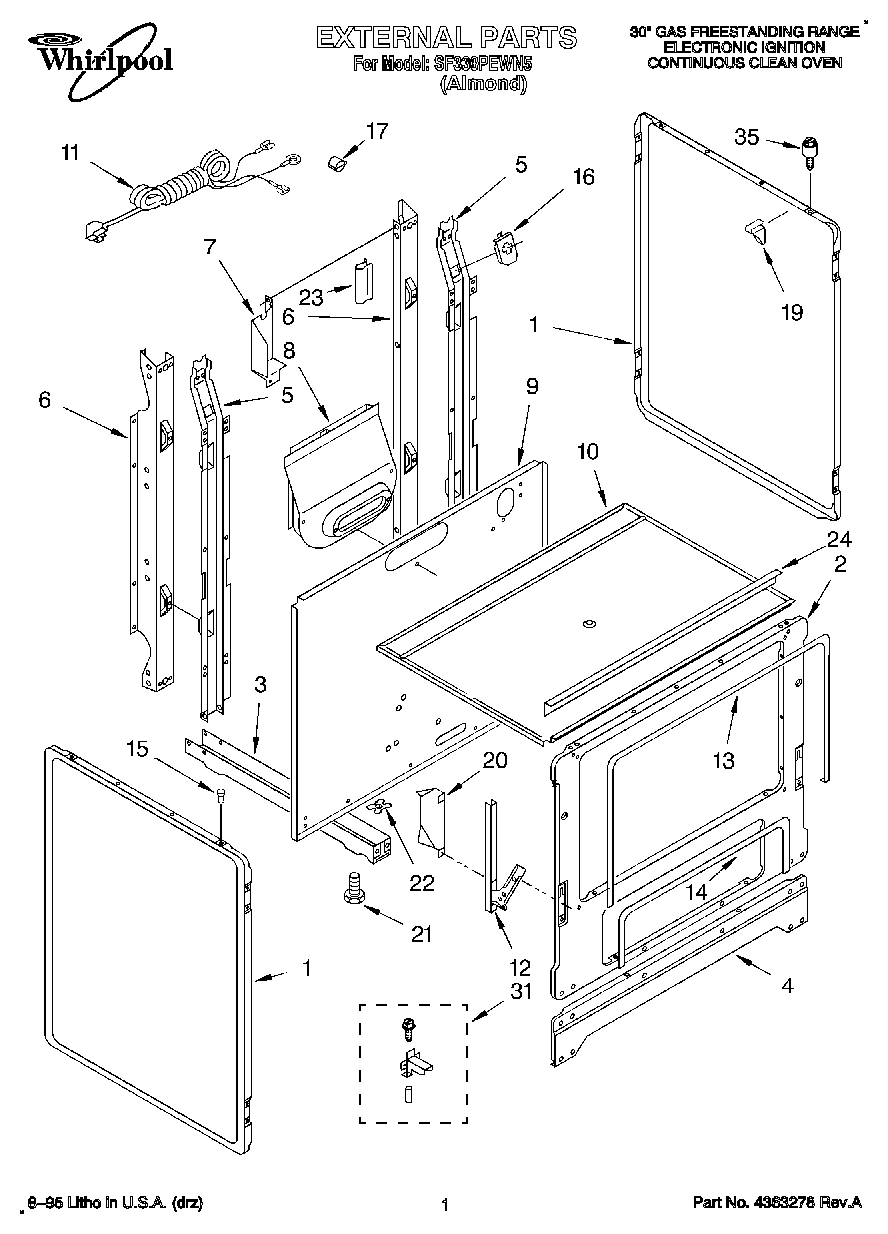

SF330PEWN5 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Ignitor (Screw, 8 X 1/2 (4))
4	Base, Front
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
7	Screw, 10-12 X 3/8 (2)
7	Cover, Wire
8	SCREW
8	Box, Flue
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
11	Cord, Power
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
16	Bracket, Receptable
17	Strain Relief
19	Wire, Tie
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Extension Burner Box
31	Anti-Tip Kit
35	Locator stud (2)
35	Stud Screw (2)
