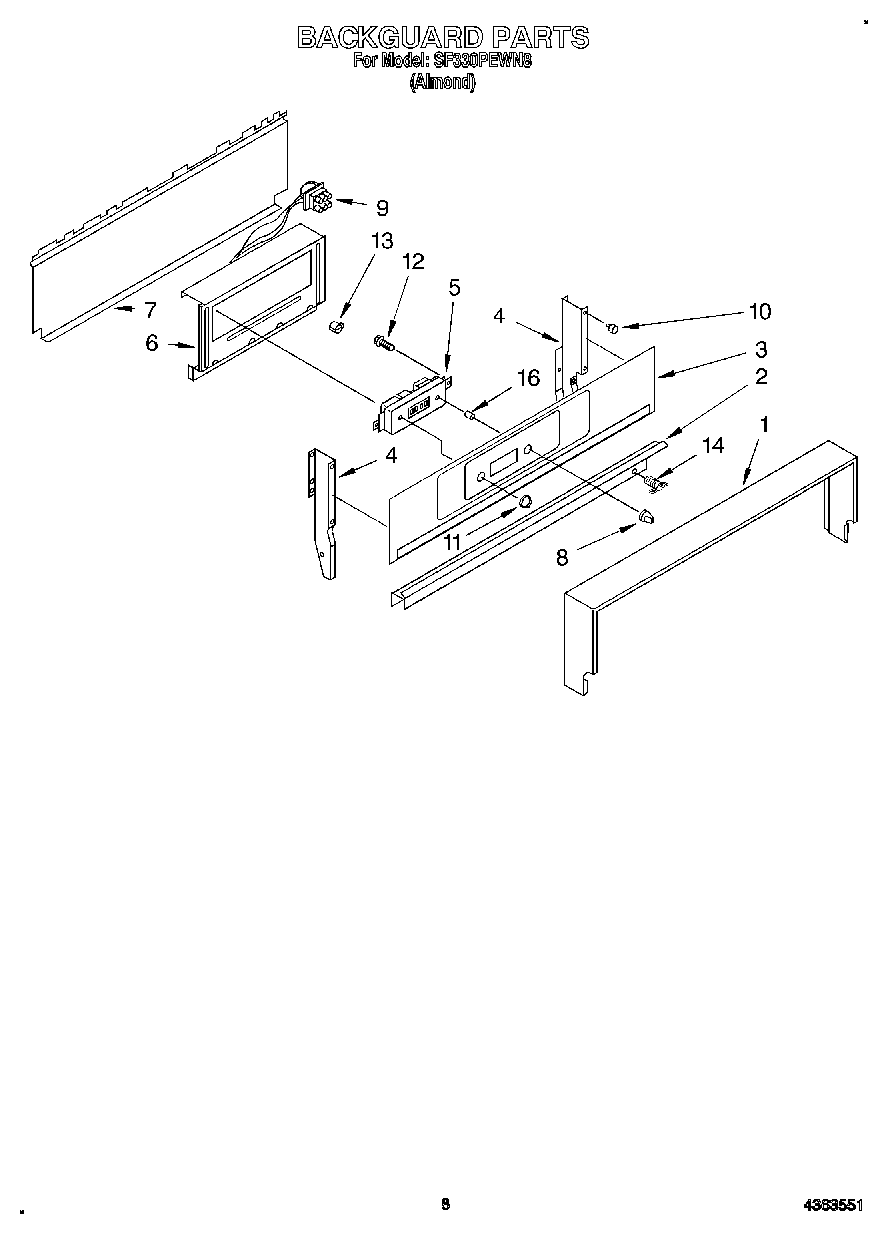

SF330PEWN8 05 – BACKGUARDadmin2025-04-26T12:22:07+00:00SF330PEWN8 05 – BACKGUARD
Products
| Position | Product |
|---|
| 1 | Frame |
| 2 | Screw, 10-12 x 1/2 (4) |
| 2 | Bottom, Backguard |
| 3 | Glass |
| 4 | Support, Backguard (Left Hand) |
| 4 | Support, Backguard (Right Hand) |
| 4 | Screw, 10-32 X 1/2 (1) |
| 5 | Clock, Timer |
| 6 | Bracket, Clock |
| 7 | Screw, 10-12 X 3/8 (2) |
| 7 | Panel, Rear |
| 8 | Knob, Clock |
| 9 | Harness, Backguard |
| 10 | Bumper, Rubber (6) |
| 11 | Button, Set |
| 12 | WP488729 Whirlpool Refrigerator Door Screw |
| 13 | Clip, Wire |
| 14 | Strain Relief |
| 14 | WP308685 Whirlpool Microwave Screw |
| 16 | Shaft, Timer |
