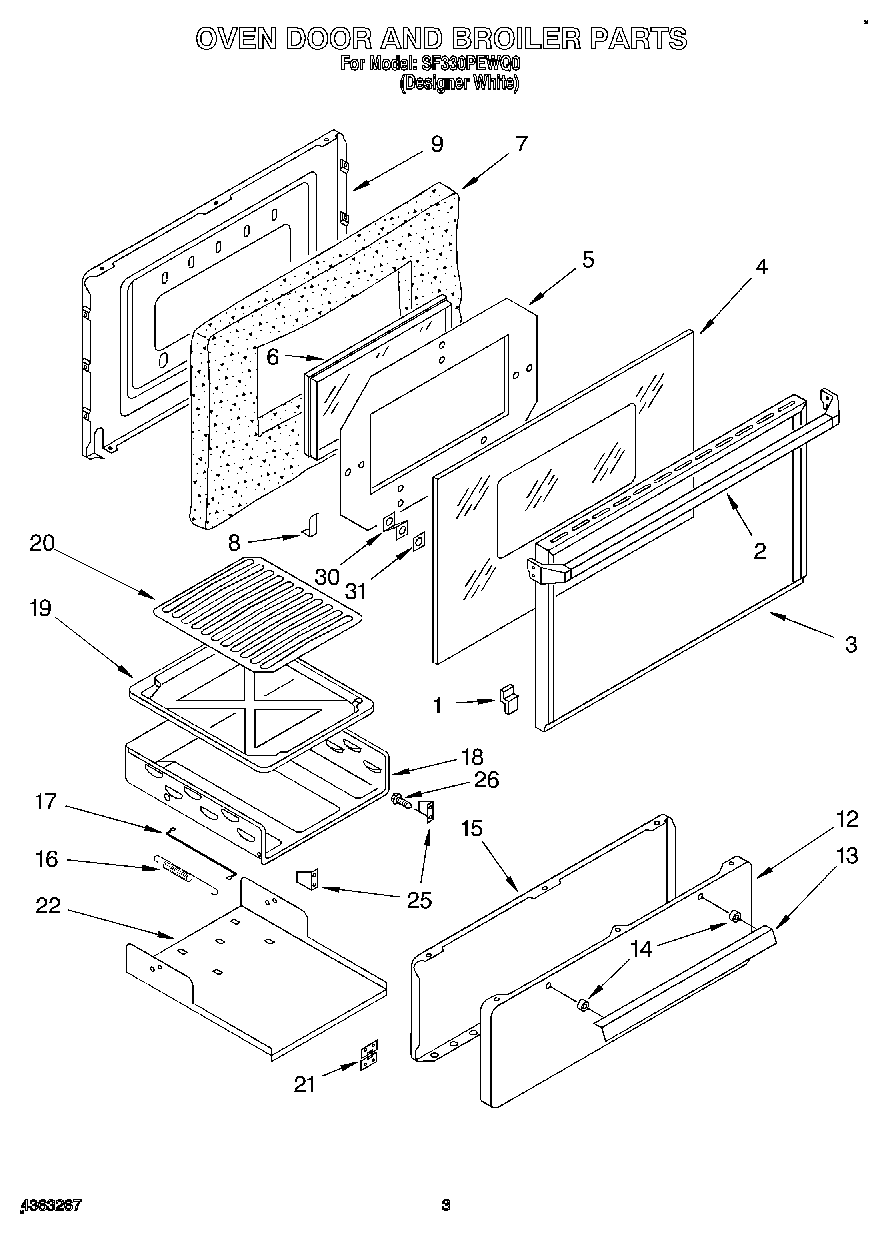

SF330PEWQ0 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Screw, 8-18 X 3/8 (4)
2	Handle, Door (White)
3	Frame, Door (White)
4	Glass, Outer Door ((White Model))
5	Ring, Hold Down
6	Window
7	Insulation
8	Plate (2)
9	Liner, Door
12	Panel, Broiler (Screw)
12	Panel, Broiler (White)
13	Handle
13	Screw
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Body, Brolier
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	WP308685 Whirlpool Microwave Screw
21	Grate, Top Burner
22	Carriage Broiler
25	Bracket
30	Bracket “Z“ (8)
31	Bumper, Rubber (2)
