SF330PEWQ2 02 – OVEN DOOR AND BROILER

SF330PEWQ2 02 – OVEN DOOR AND BROILER

Written by

in

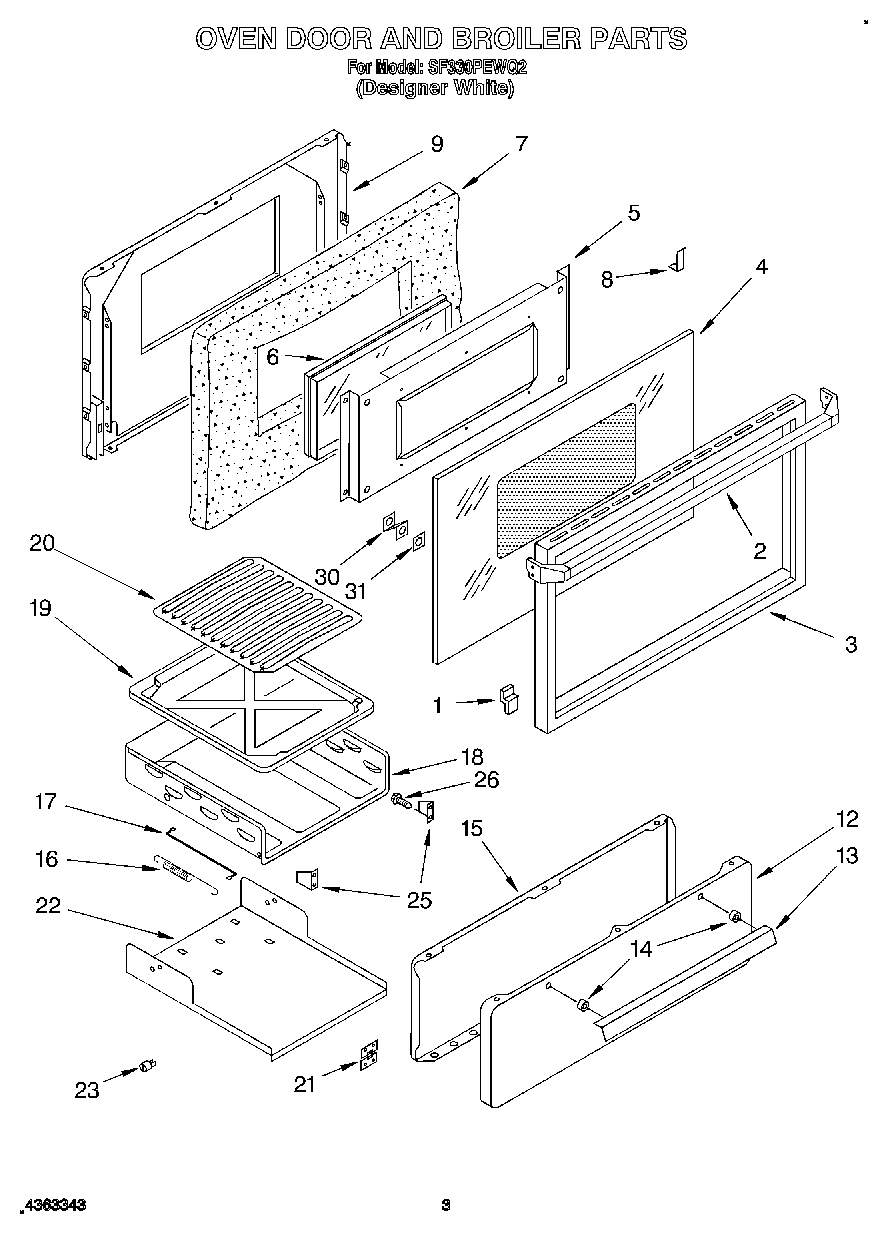

SF330PEWQ2 02 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Handle, Door (White)
2Screw, Door Handle
3Frame, Door (White)
4Glass, Outer Door ((White Model))
5Baffle, Door
5Screw
6Window
7Insulation
8Bumper (4)
9Liner, Door
12Panel, Broiler (White)
12Panel, Broiler (Screw)
13Screw
13Handle
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Rod, Push-Pull
18Body, Brolier
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door
21WP308685 Whirlpool Microwave Screw
22Carriage Broiler
23W10709871 Whirlpool Drawer Glide
25Bracket
30Bracket “Z“ (8)
31Bumper, Rubber (2)
