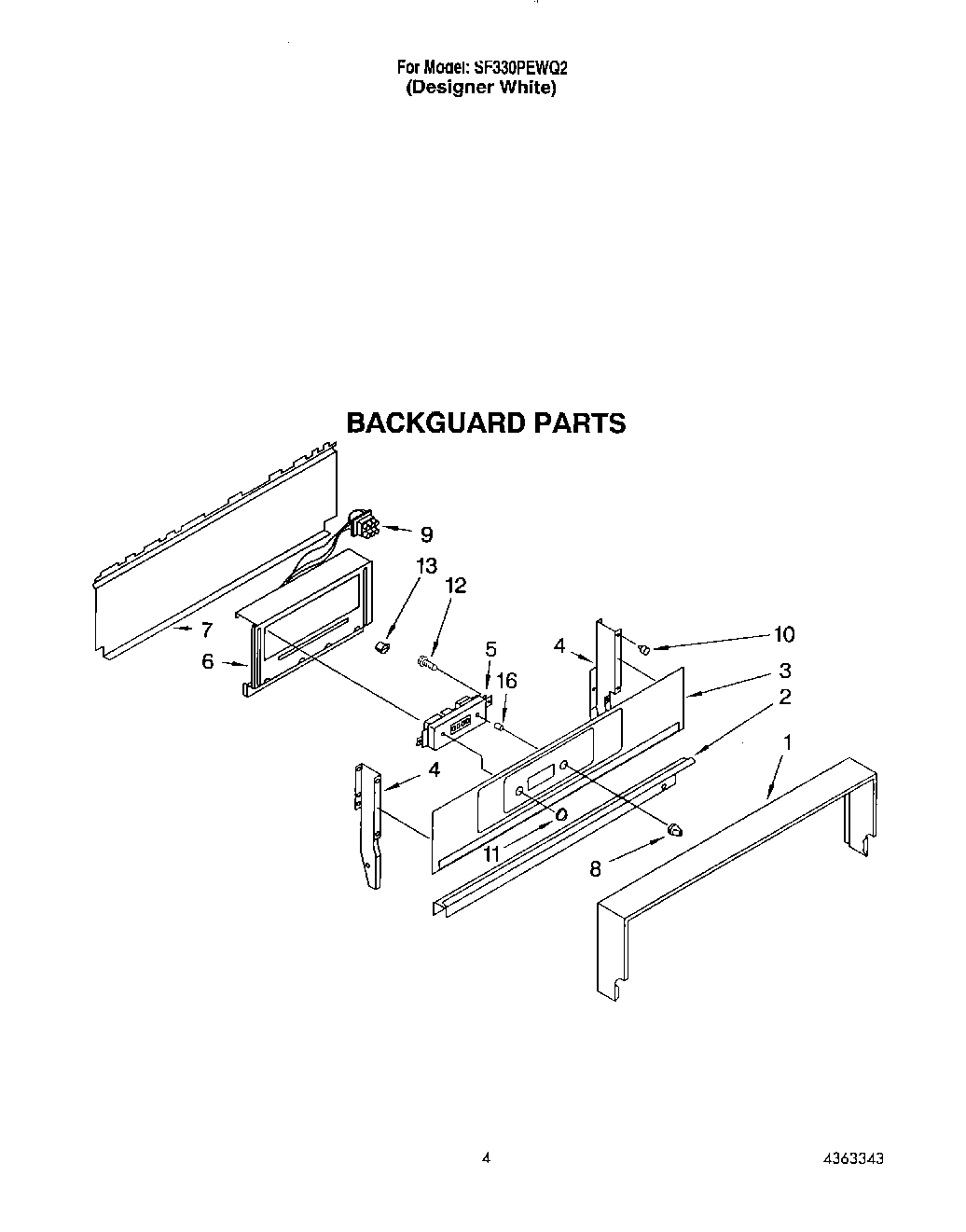

SF330PEWQ2 03 – BACKGUARD

Products

Position	Product
1	Frame, Backguard (White)
2	Bottom, Backguard (White)
2	Screw, 10-12 x 1/2 (4)
3	Glass, Backguard
4	Support, Backguard (Left Hand)
4	Support, Backguard (Right Hand)
4	Screw, 10-32 X 1/2 (1)
5	Clock, Timer
6	Bracket, Clock
7	Panel, Rear
7	Screw, 10-12 X 3/8 (2)
8	Knob, Clock ((White Model))
9	Harness, Backguard
10	Bumper, Rubber (6)
11	Set Button ((White Model))
12	WP488729 Whirlpool Refrigerator Door Screw
13	Clip, Wire
16	Shaft, Timer
