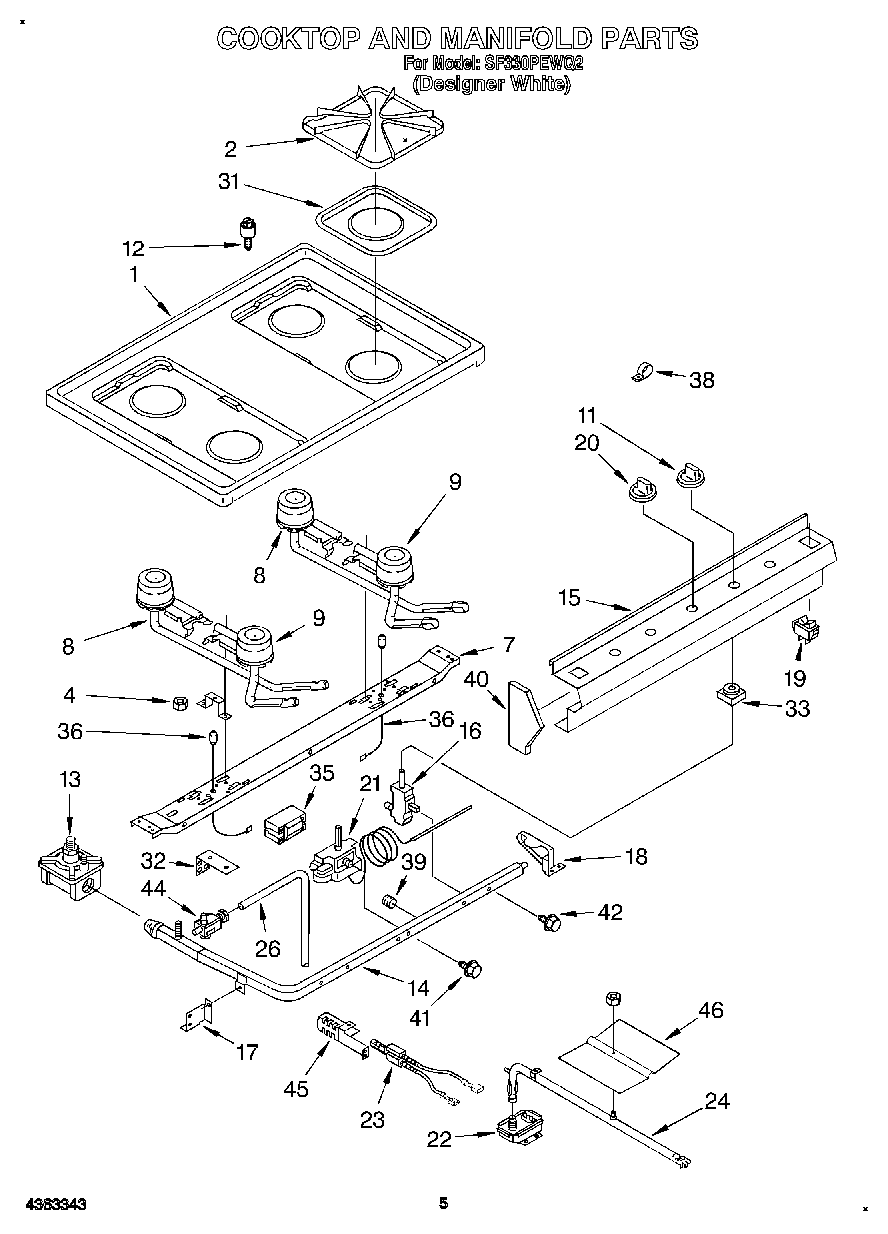

SF330PEWQ2 04 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Guide, Cooking
	Guide, Use & Care
	Instuctions, Installation
1	Cooktop (White)
2	Grate (4) ((White Model))
4	Nut, Hex
7	Wire, Tie
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	Knob, Burner (4) ((White Model))
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (White)
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
23	Screw, 10-12 X 3/8 (2)
23	Pilot
24	Burner, Oven
26	Burner, Oven
31	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
35	Spark Module
36	Ignitor (L.H.)
36	Ignitor (R.H.)
38	Strain Relief
39	W10295523 Whirlpool Plug
40	Endcap (R.H.)
40	Endcap (L.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
44	Valve, Shut Off
45	Shield, Ignitor
46	Spreader, Flame
46	W10080180 Whirlpool Nut
