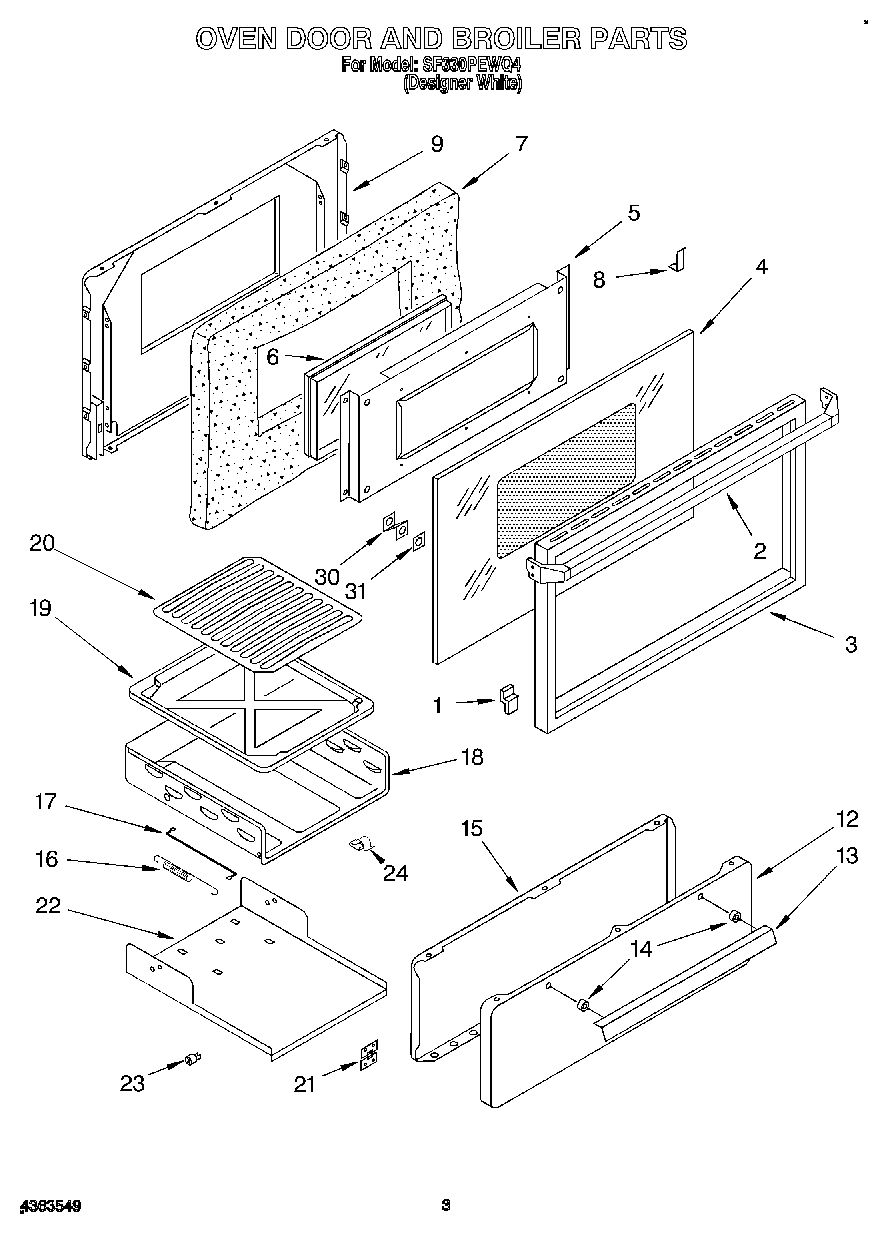

SF330PEWQ4 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door (White)
2	Screw, Door Handle
3	Frame, Door (White)
4	Glass, Outer Door ((White Model))
5	Baffle, Door
6	Window
7	Screw
7	Insulation
8	Bumper (4)
9	Liner, Door
12	Panel, Broiler (Screw)
12	Panel, Broiler (White)
13	Handle
13	Screw
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Rod, Push-Pull
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
22	Carriage Broiler
23	W10709871 Whirlpool Drawer Glide
24	Clip, Broiler
30	WP308685 Whirlpool Microwave Screw
30	Bracket “Z“ (8)
31	Bumper, Rubber (2)
