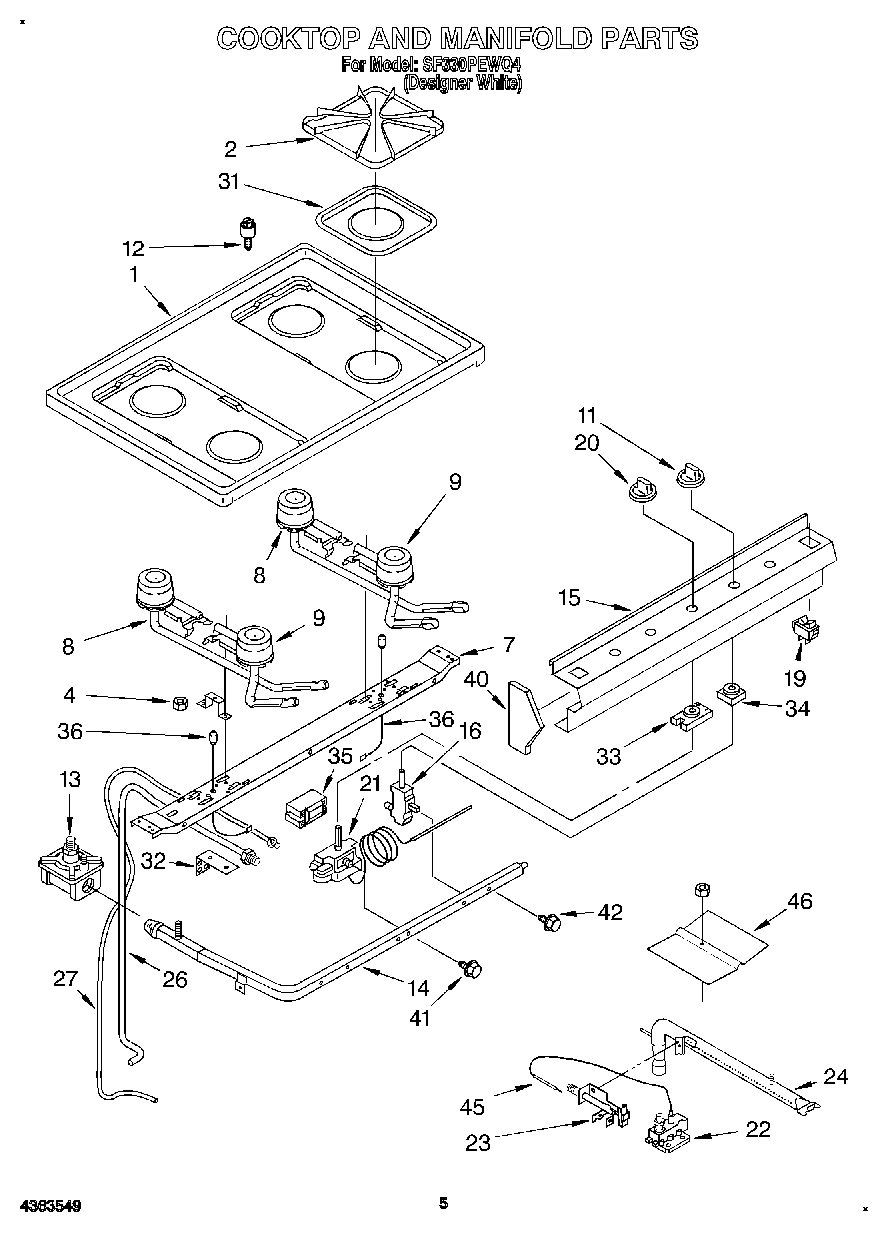

SF330PEWQ4 04 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Diagram, Wiring
	Guide, Use & Care
	Installation Instuctions
	Guide, Cooking
1	Cooktop (White)
2	Grate (4) ((White Model))
4	Nut, Hex
7	Support, Burner
7	Wire, Tie
8	Burner, Rear (2)
9	Screw
9	Burner, Front (2)
11	Knob, Burner (4) ((White Model))
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold (White)
15	Panel, Broiler (Screw)
16	Valve, 90~ (4) (Includes Ill. No. 32)
19	Switch, Oven Light (White)
20	Knob, Thermostat (White)
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Pilot
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
31	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
32	WP308685 Whirlpool Microwave Screw
33	WP878009 Whirlpool Igniter Switch
34	WP4157180 Whirlpool Surface Burner Ignition Switch
35	Ignitor (Screw, 8 X 1/2 (4))
35	Module, Spark
36	Ignitor (R.H.)
36	Ignitor (L.H.)
40	Endcap (R.H.)
40	Endcap (L.H.)
40	Endcap (Screw)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
45	Screw, Thermostat Mounting (2)
45	Ignitor, Oven
46	W10080180 Whirlpool Nut
46	Spreader, Flame
