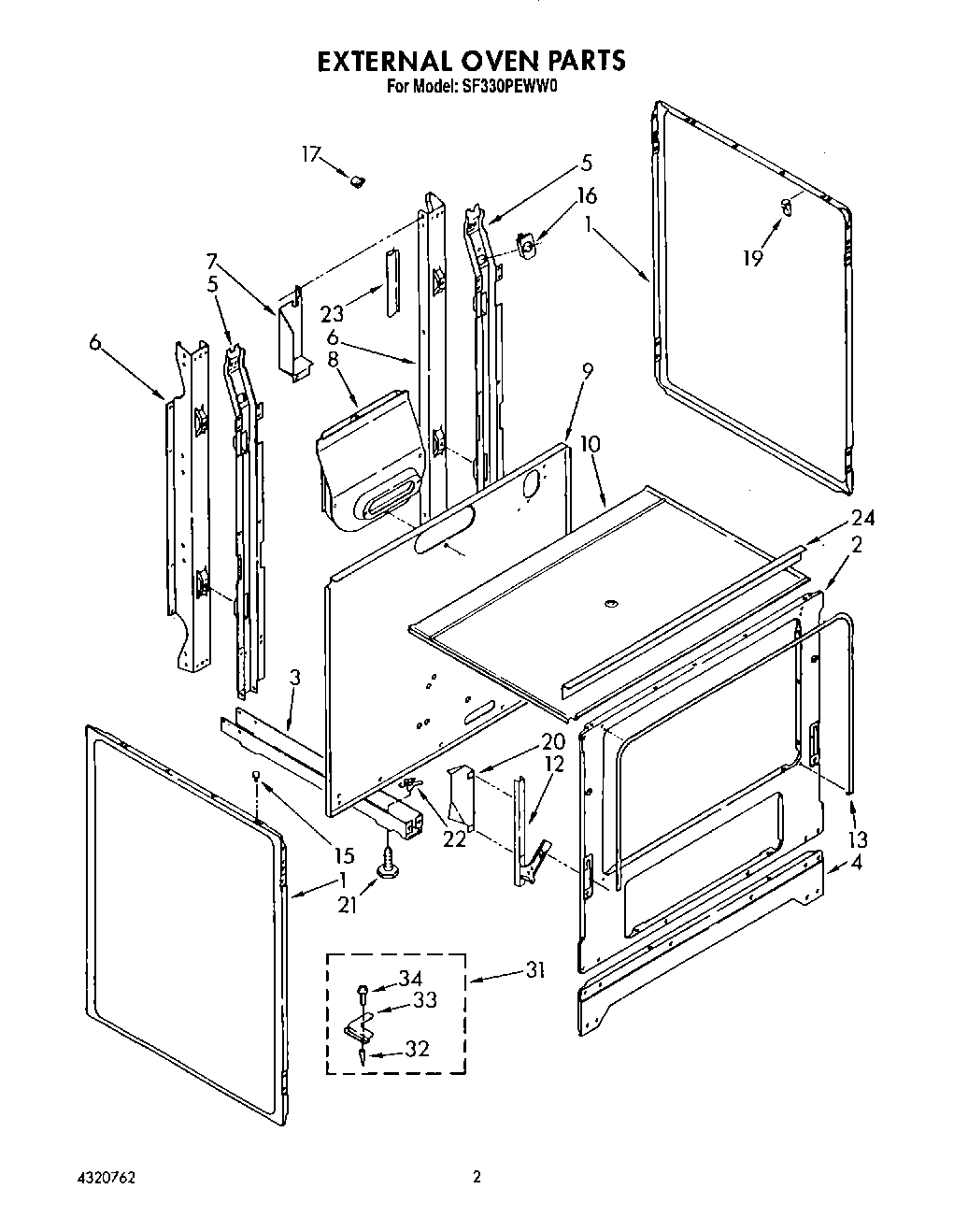

SF330PEWW0 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Ignitor (Screw, 8 X 1/2 (4))
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
7	Cover, Wire
7	Screw, 10-12 X 3/8 (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
12	Screw, 10-24 X 3/8 (2)
12	Hinge, Door (2)
13	Seal, Door (2)
15	Locator stud (2)
16	Bracket, Receptable
17	Strain Relief
19	Wire, Tie
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Extension Burner Box
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	W11693756 Whirlpool Screw Assembly
