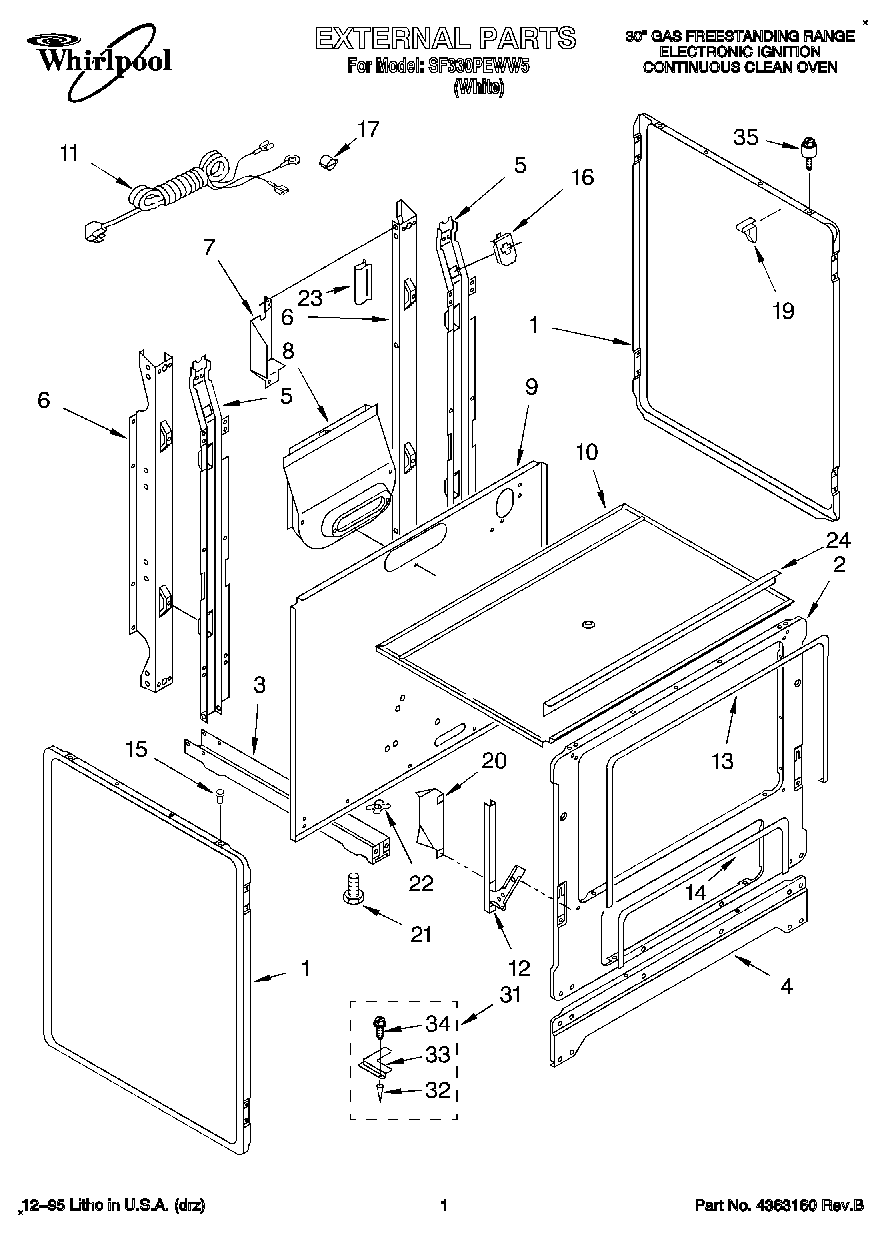

SF330PEWW5 01 – EXTERNAL
Written by
in
SF330PEWW5 01 – EXTERNAL
Products
Position
Product
1
Panel, Side (2) (White)
2
Frame, Front
3
Rail, Base (2)
4
Ignitor (Screw, 8 X 1/2 (4))
4
Base, Front
5
Screw, 10-32 X 1/2 (1)
5
Support, Main (2)
6
Support, Rear (2)
7
Cover, Wire
7
Screw, 10-12 X 3/8 (2)
8
Box, Flue
8
SCREW
9
Panel, Rear
10
Burner Box
10
WP308685 Whirlpool Microwave Screw
11
Cord, Power
12
Screw, 10-24 X 3/8 (2)
12
Hinge, Door (2)
13
Seal, Door (2)
14
Seal, Door (Top)
15
Bumper, Cooktop (2)
16
Bracket, Receptable
17
Strain Relief
19
Wire, Tie
20
Shield, Insulation
21
Leg, Leveler (4)
22
Nut (4)
23
Safe Edge
24
Extension Burner Box
31
Anti-Tip Kit
32
Anchor
33
Bracket
34
Screw
35
Locator stud (2)
35
Stud Screw (2)
←
