SF330PEWW9 01 – EXTERNAL
Written by
in

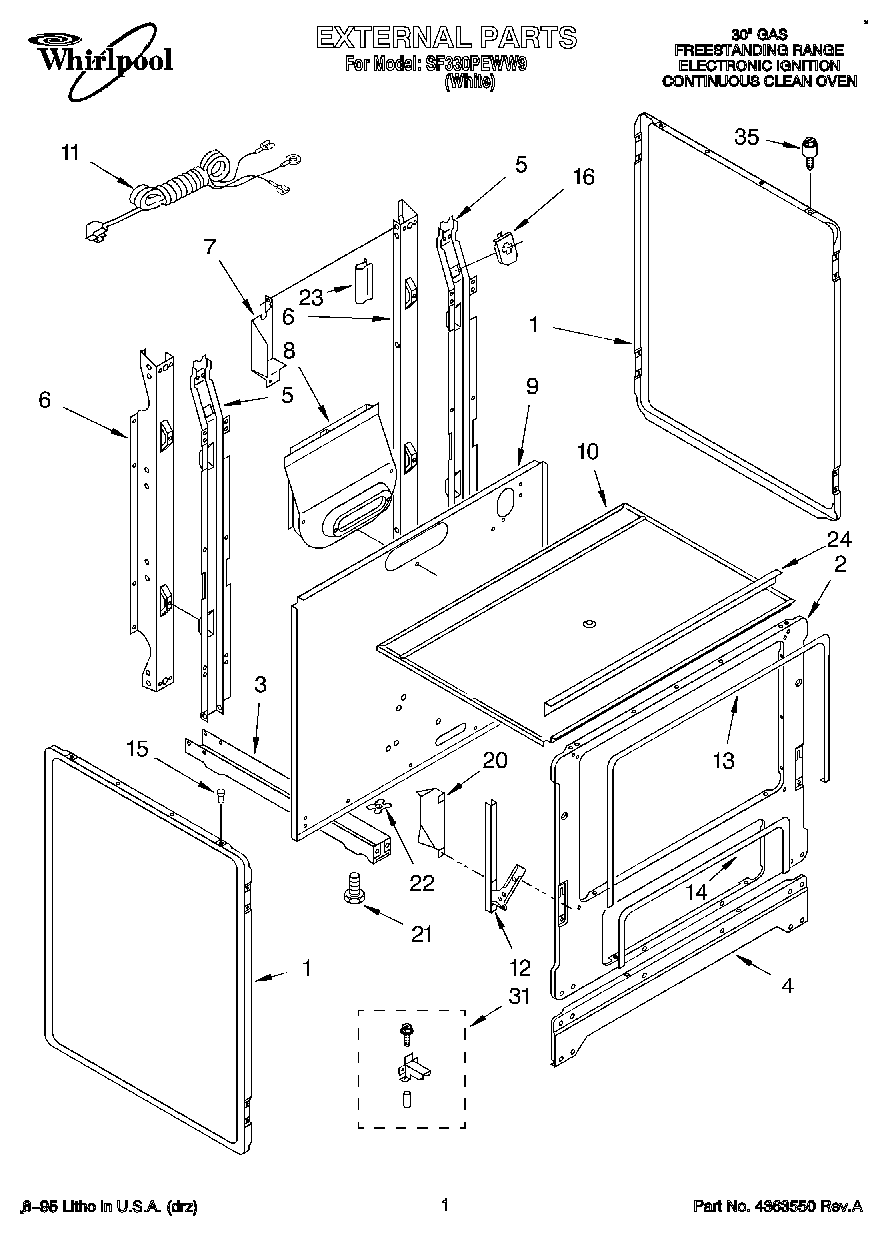

SF330PEWW9 01 – EXTERNAL
Products
Position
Product
1
Panel, Side (2) (White)
2
Frame, Front
3
Rail, Base (2)
4
Base, Front
4
Ignitor (Screw, 8 X 1/2 (4))
5
Screw, 10-32 X 1/2 (1)
5
Support, Main (2)
6
Support, Rear (2)
7
Cover, Wire
7
Screw, 10-12 X 3/8 (2)
8
Box, Flue
9
Panel, Rear
10
Burner Box
11
WP9757891 Whirlpool Power Cord
12
Hinge, Door (2)
12
Screw
13
Seal, Door (2)
14
Seal, Door (Top)
15
Bumper, Cooktop (2)
16
Bracket, Receptable
20
Shield, Insulation
21
Leg, Leveler
22
Nut (4)
23
Safe Edge
24
WP308685 Whirlpool Microwave Screw
24
Extension Burner Box
31
Anti-Tip Kit
35
Locator Stud (2)
←
