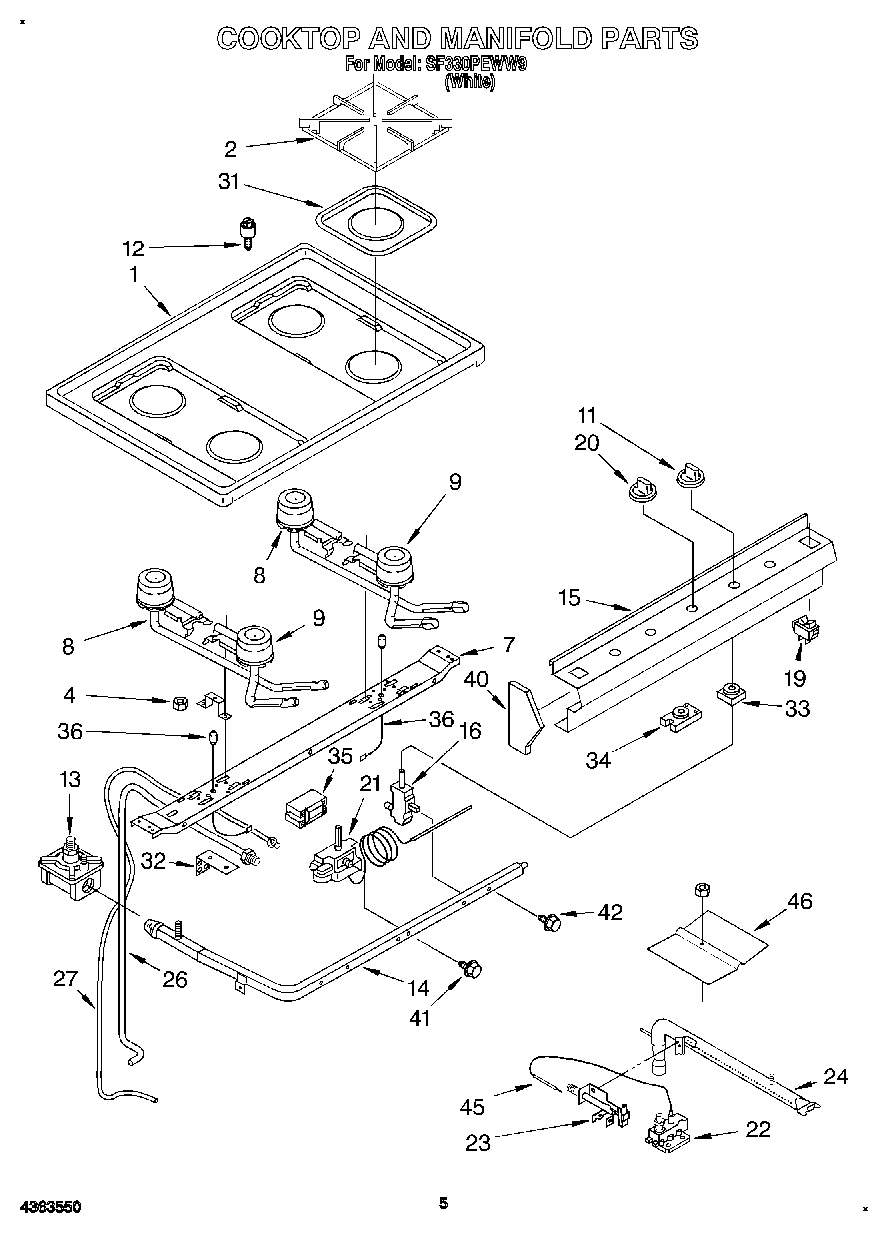

SF330PEWW9 04 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Guide, Use & Care
	Installation Instuctions
	Guide, Cooking
	Diagram, Wiring
1	Cooktop (White)
2	Grate, Top Burner (4)
4	Nut, Hex
7	Support, Burner
7	Wire, Tie
8	Burner, Rear (2)
9	Screw
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
14	WP308685 Whirlpool Microwave Screw
15	Panel, Manifold
15	Endcap (Screw)
16	Valve, 90~ (4) (Includes Ill. No. 32)
19	Switch, Oven Light
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
23	Screw, Thermostat Mounting (2)
23	Pilot
24	Burner, Oven
24	Screw
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
31	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
35	Ignitor (Screw, 8 X 1/2 (4))
36	Ignitor (R.H.)
36	Ignitor (L.H.)
40	Endcap (L.H.)
40	Endcap (R.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
45	Ignitor, Oven
46	Spreader, Flame
46	W10080180 Whirlpool Nut
