SF330PEWZ0 02 – OVEN DOOR AND BROILER

SF330PEWZ0 02 – OVEN DOOR AND BROILER

Written by

in

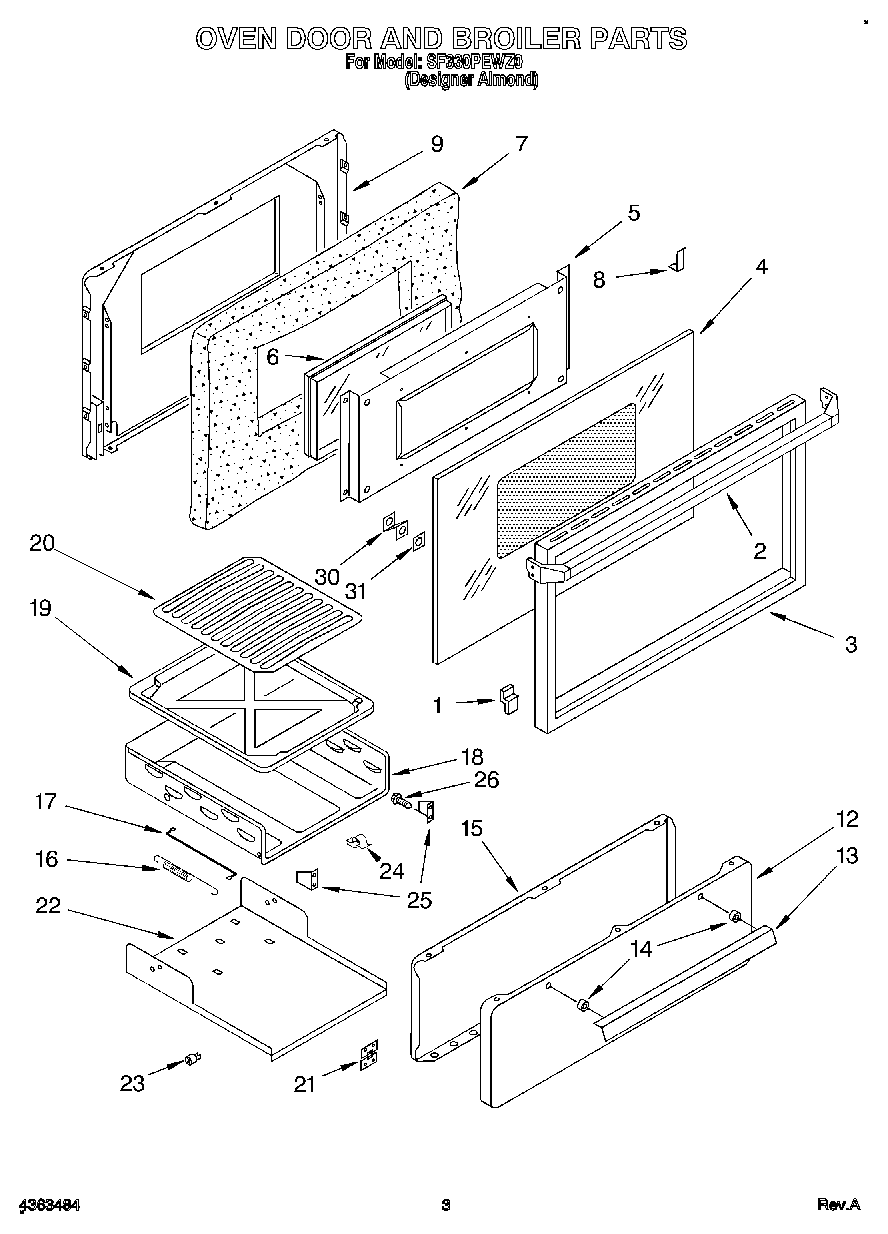

SF330PEWZ0 02 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Handle, Door ((Almond Model))
2Screw, Door Handle
3Frame, Door (Almond)
4Glass, Outer Door ((Almond Model))
5Baffle, Door
5Screw
6Window
7Insulation
8Bumper (4)
9Liner, Door
12Panel, Broiler (Almond)
12Panel, Broiler (Screw)
13Handle
13Screw
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Rod, Push-Pull
18Body, Brolier
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21WP308685 Whirlpool Microwave Screw
21Hinge, Door
22Carriage Broiler
23W10709871 Whirlpool Drawer Glide
24Clip, Broiler
25Bracket
30Bracket “Z“ (8)
31Bumper, Rubber (2)
