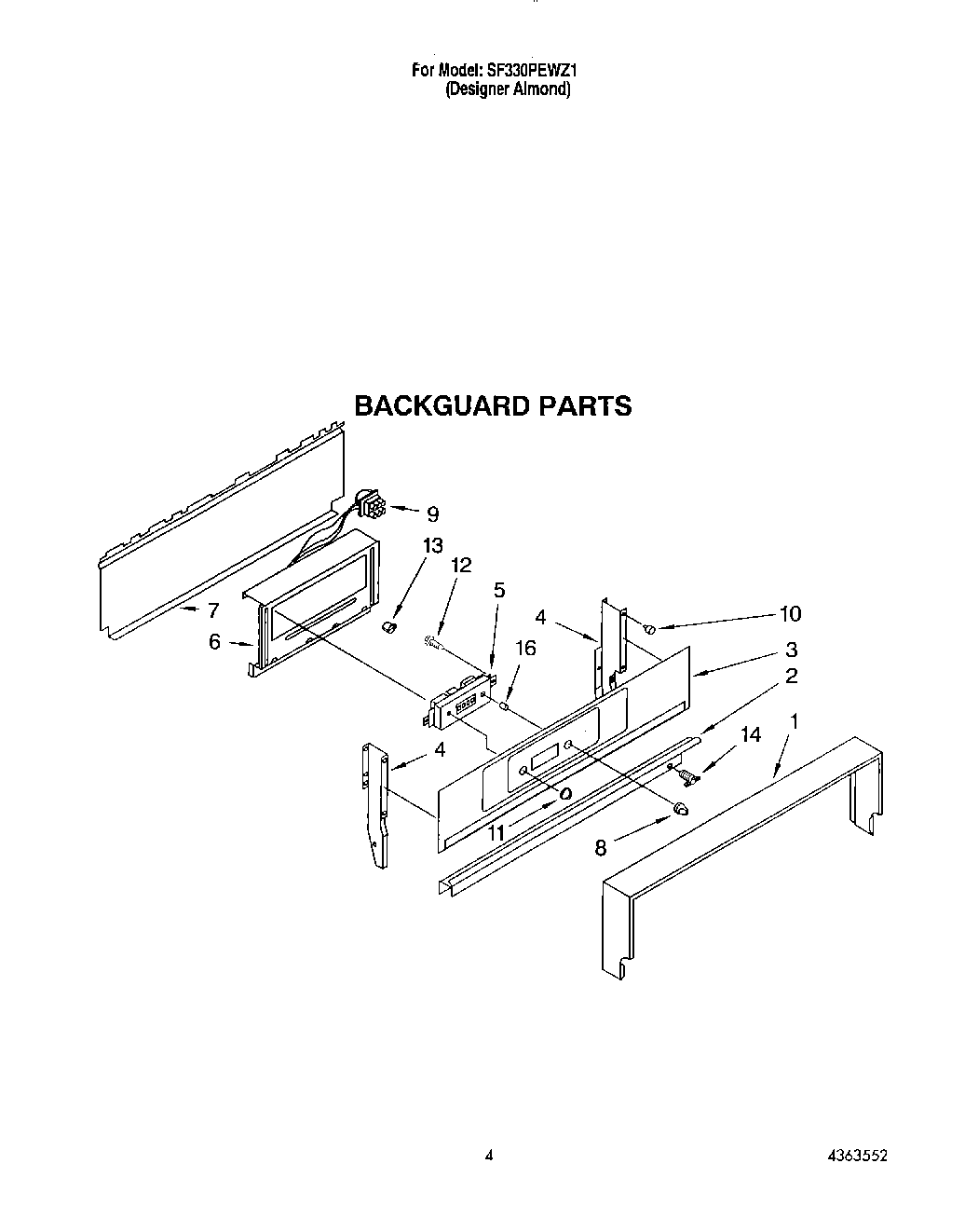

SF330PEWZ1 03 – BACKGUARD

Products

Position	Product
1	Frame, Backguard (Almond)
2	Screw, 10-12 x 1/2 (4)
2	Bottom, Backguard (Almond)
3	Glass, Backguard
4	Support, Backguard (Left Hand)
4	Screw, 10-32 X 1/2 (1)
4	Support, Backguard (Right Hand)
5	Clock, Timer
6	Bracket, Clock
7	Panel, Rear
7	Screw, 10-12 X 3/8 (2)
8	Knob, Clock ((Almond Model))
9	Harness, Backguard
10	Bumper, Rubber (6)
11	Set Button ((Almond Model))
12	WP488729 Whirlpool Refrigerator Door Screw
13	Clip, Wire
14	Strain Relief
14	WP308685 Whirlpool Microwave Screw
16	Shaft, Timer
