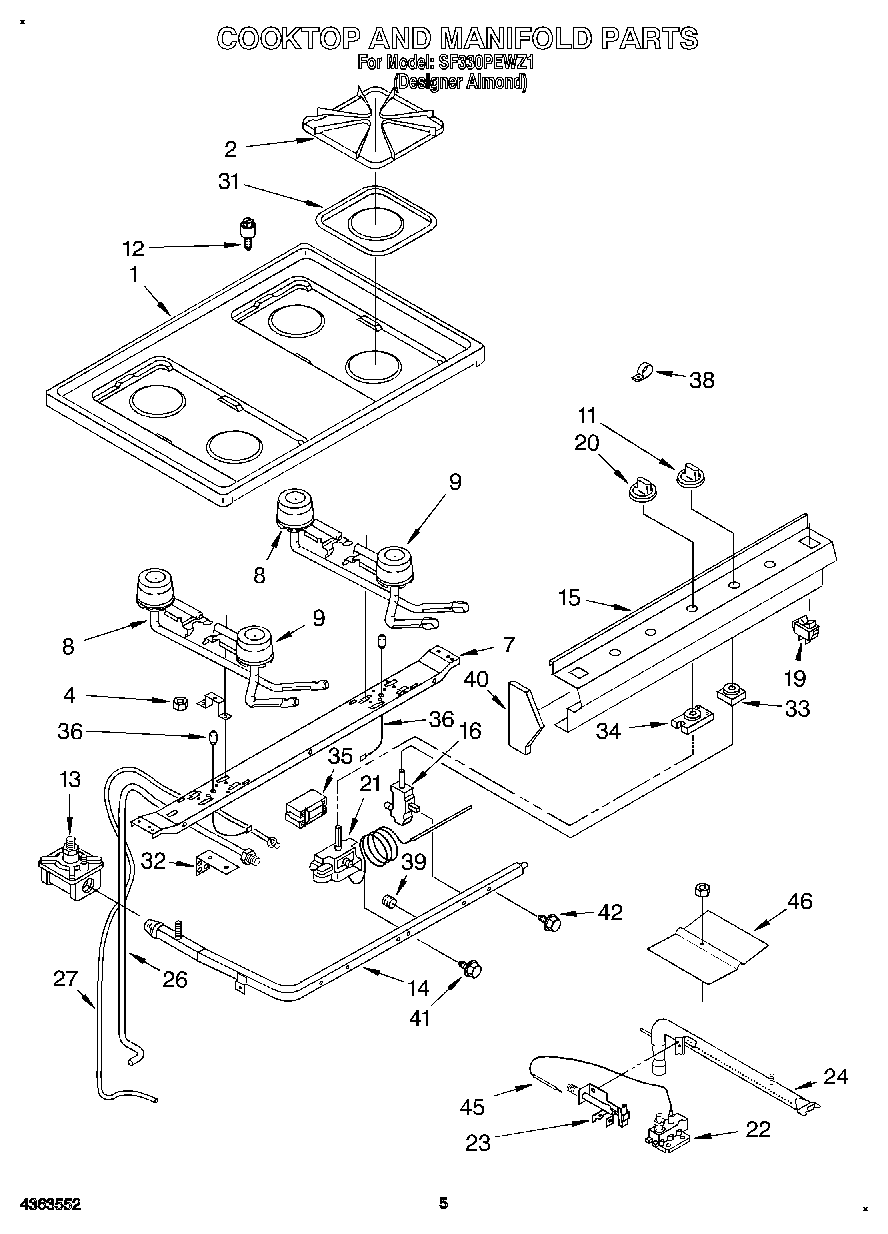

SF330PEWZ1 04 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Installation Instuctions
	Guide, Cooking
	Guide, Use & Care
1	Cooktop (Almond)
2	Grate, Top Burner (4)
4	Nut, Hex
7	Support, Burner
7	Wire, Tie
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	Knob, Burner (4) ((Almond Model))
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Broiler (Screw)
15	Panel, Manifold (Almond)
16	Valve, 90~ (4) (Includes Ill. No. 32)
19	Switch, Oven Light (Almond)
20	Knob, Thermostat (Almond)
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
22	WP308685 Whirlpool Microwave Screw
23	Pilot
23	Screw
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
31	WPY0060872 Whirlpool Drip Pan
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (L.H.)
36	Ignitor (R.H.)
38	Strain Relief
39	W10295523 Whirlpool Plug
40	Endcap (R.H.)
40	Endcap (L.H.)
41	Bolt, Thermostat Mounting (2)
42	Bolt, Valve Mounting
45	Screw, Thermostat Mounting (2)
45	Ignitor, Oven
46	Spreader, Flame
46	W10080180 Whirlpool Nut
