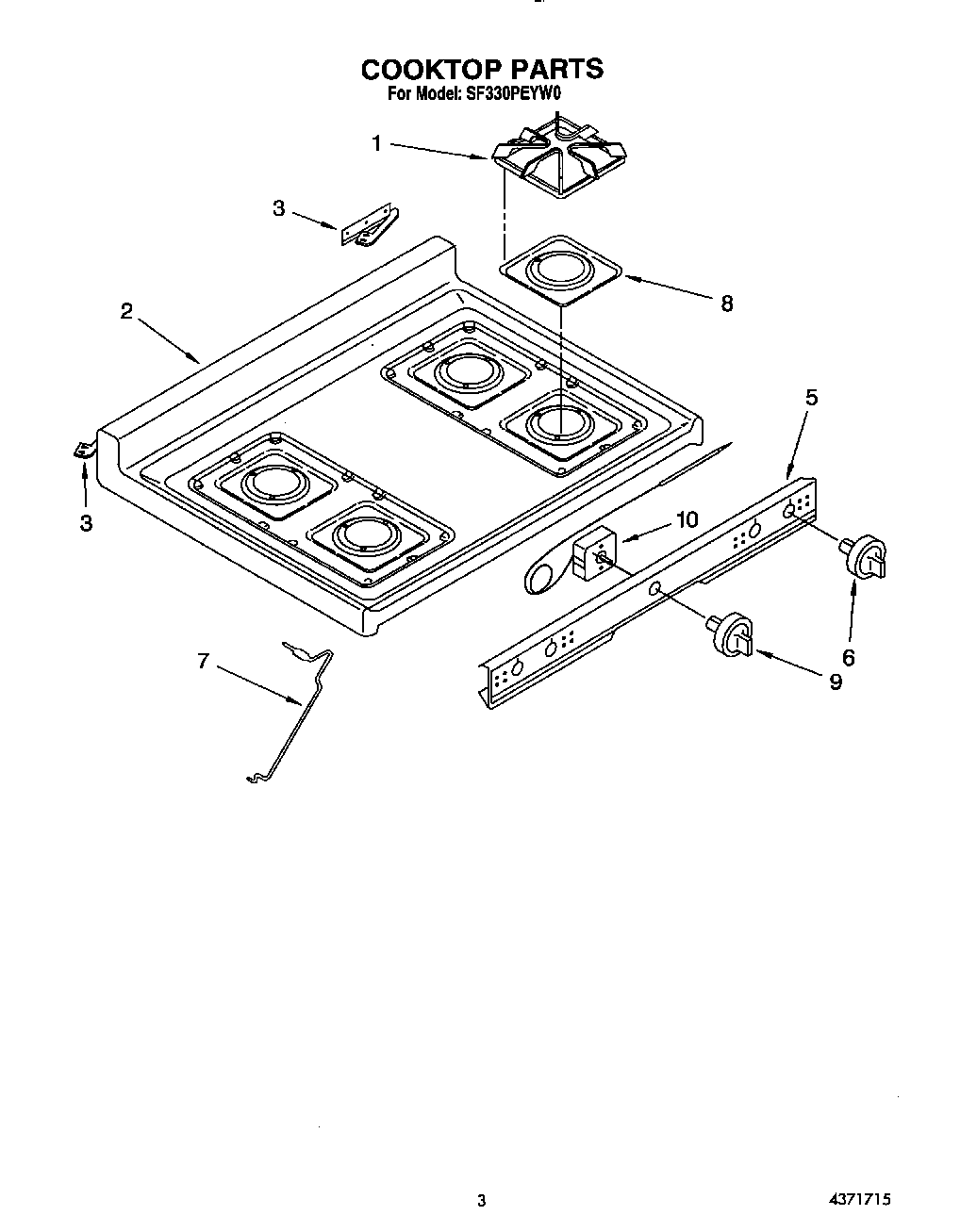

SF330PEYW0 03 – COOKTOP

SF330PEYW0 03 – COOKTOP

Written by

in

SF330PEYW0 03 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main
2Top, Main (Almond)
3Bracket, Hinge (Left Side)
3Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Burner (4)
7Rod, Support Top
8Pan, Burner (4)
9Knob, Thermostat
10Thermostat, Oven
