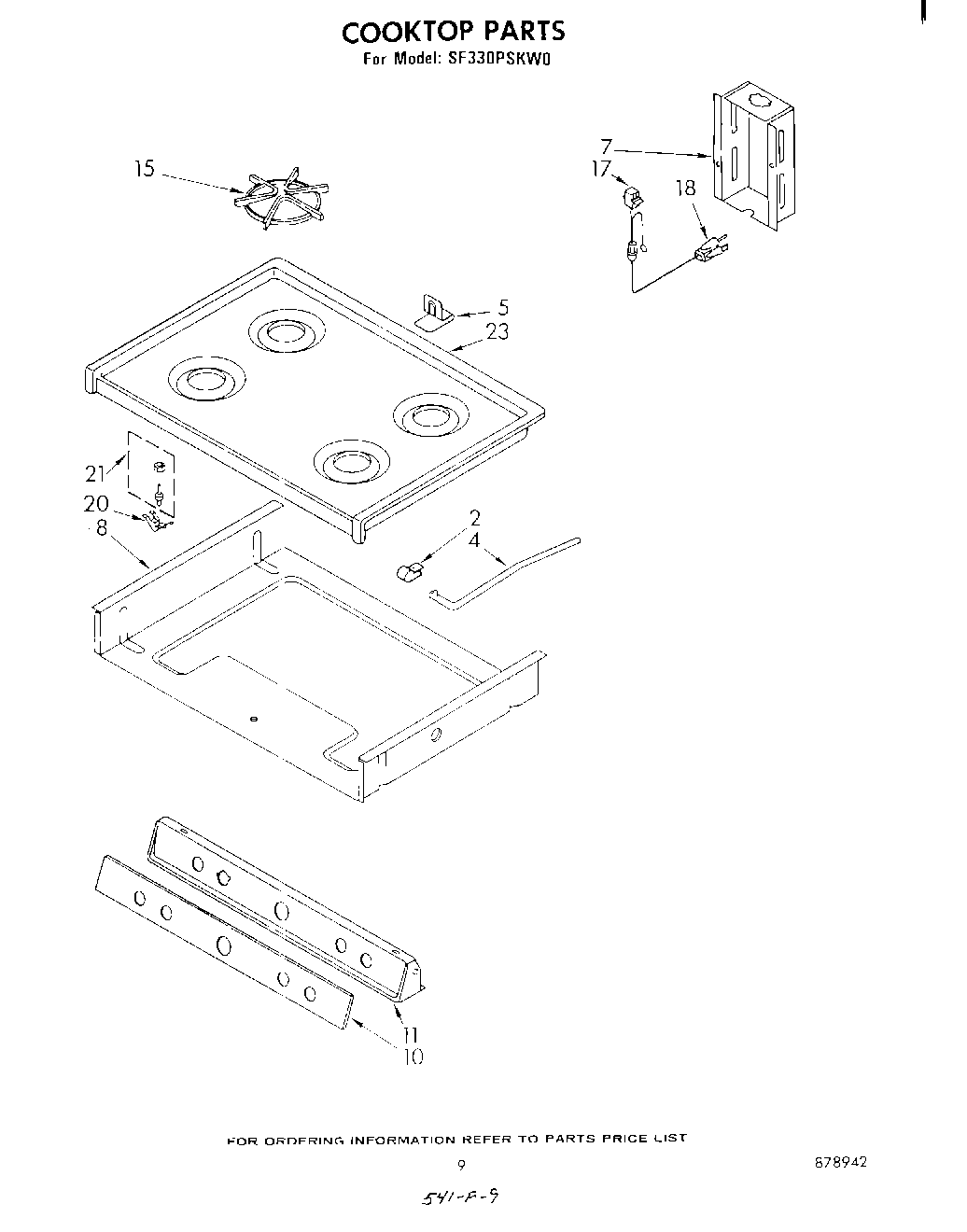

SF330PSKW0 06 – COOK TOP

SF330PSKW0 06 – COOK TOP

Written by

in

SF330PSKW0 06 – COOK TOP

Products

Position	Product
2	Clamp, Top Stop
4	Stop, Cook Top
5	Spacer, Main Top
7	Cover, Wire
8	Bottom, Burner Box
10	Inlay, Manifold Panel
11	Panel, Manifold (Toast)
11	Panel, Manifold (Harvest Gold)
11	Panel, Manifold (White)
11	Panel, Manifold (Coffee)
11	Panel, Manifold (Almond)
11	Panel, Manifold (Toast)
15	Grate, Burner (4)
17	Block, Disconnect Socket
18	Cord, Extension
20	Catch, Main Top (2)
21	Strike, Main Top (2)
23	Top, Main (Toast)
23	Top, Main (Almond)
23	Top, Main (White)
23	Top, Main (Platinum)
23	Top, Main (Coffee)
23	Top, Main (Harvest Gold)
23	Top, Main (Brushed Chrome)
