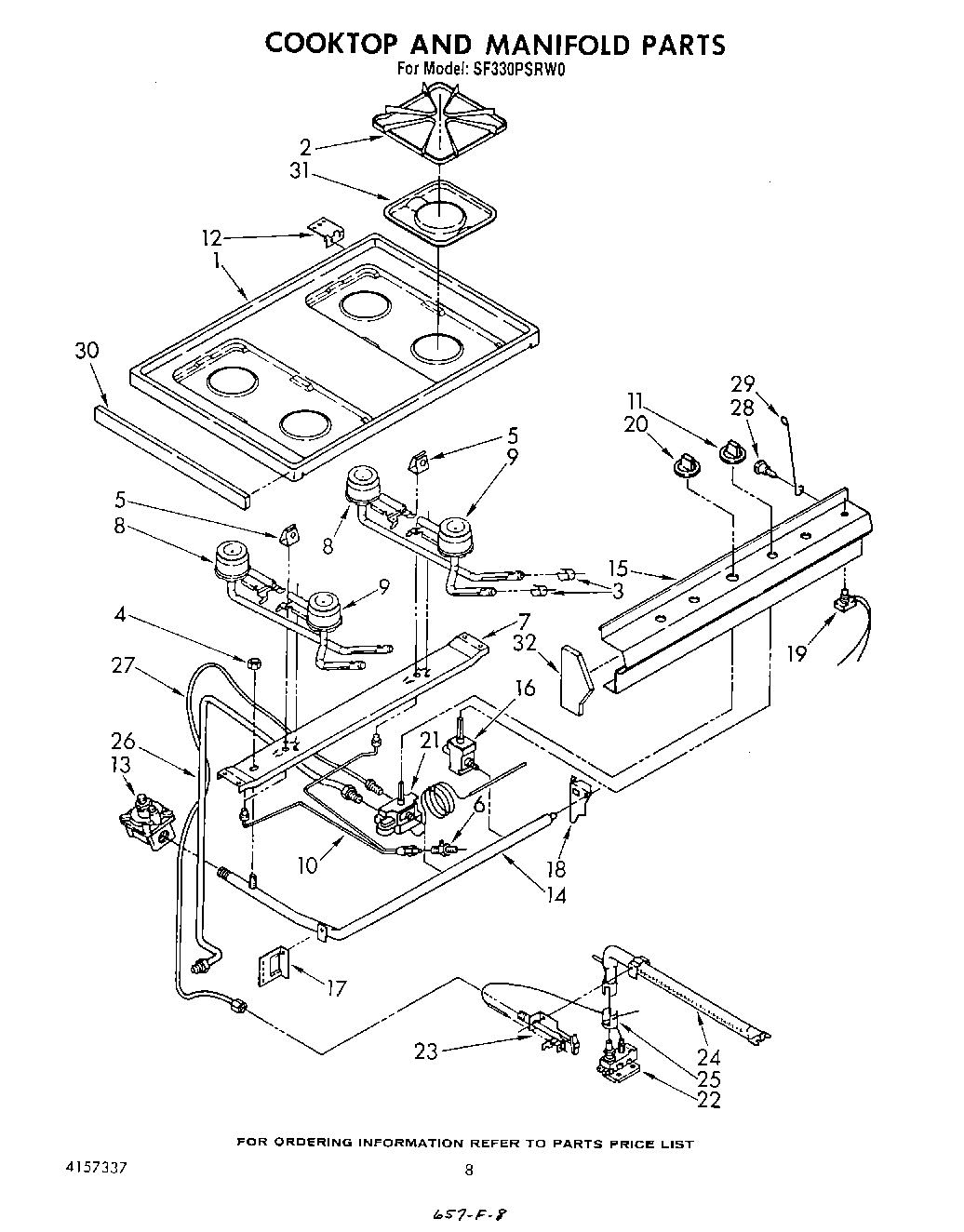

SF330PSRW0 06 – COOKTOP AND MANIFOLD, LITERATURE AND OPTIONAL

Products

PositionProduct
Guide
Guide, Cooking
List, Repair Parts
WPL LIT786735
1Cooktop (White)
1Cooktop (Toast)
1Cooktop (Almond)
1Cooktop (Platinum)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12Speed Clip (4)
12Hinge, Maintop (2)
12SCREW
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat
22Valve, Safety
22WP3387230 Whirlpool Screw
23Screw, 10-24 X 1/4 (1)
23Pilot
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30WPL 4157189
31WP786333 Whirlpool Drip Bowl
32Endcap (R.H.)
32Endcap (L.H.)
32WPW10208653 Whirlpool Insulation
32FOIL, ALUMINUM OVEN (18“ X 25 )
