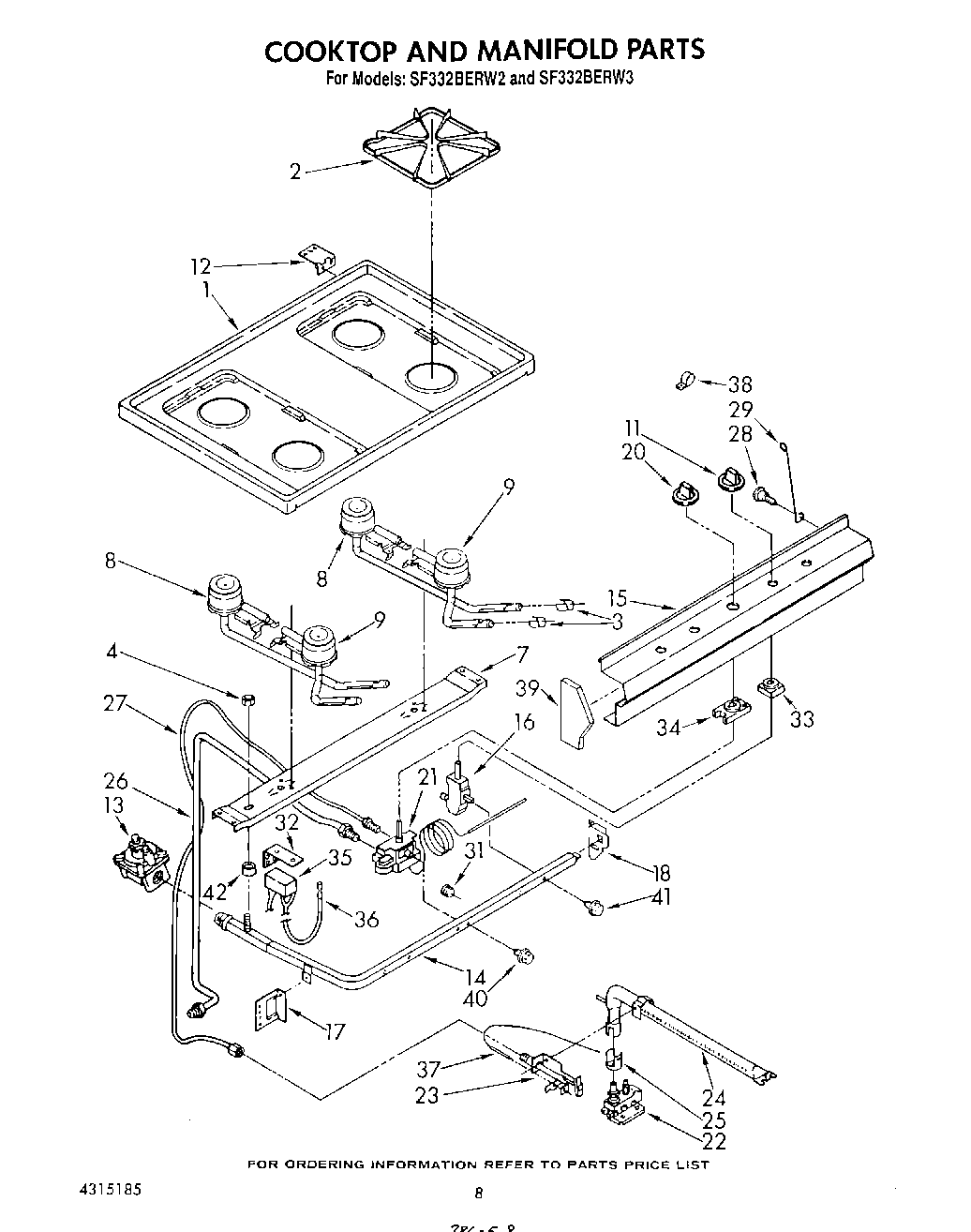

SF332BERW2 06 – COOK TOP AND MANIFOLD , LITERATURE

Products

Position	Product
	WPL LIT4315185
	Guide, Cooking
	WPL LIT786735
	WPL LIT786767
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4179282 Whirlpool Knob
12	SCREW
12	Speed Clip (4)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 45)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
31	W10295523 Whirlpool Plug
32	Plate, Spark Module
33	WP4157180 Whirlpool Surface Burner Ignition Switch
34	WP878009 Whirlpool Igniter Switch
35	Module, Spark
36	Ignitor (R.H.)
36	Ignitor (L.H.)
37	Ignitor, Oven
38	Strain Relief
39	Endcap (L.H.)
39	Endcap (R.H.)
40	Bolt, Thermostat Mounting (2)
41	Bolt, Valve Mounting
42	WPW10208653 Whirlpool Insulation
42	FOIL, ALUMINUM OVEN (18“ X 25 )
42	Spacer, Manifold
