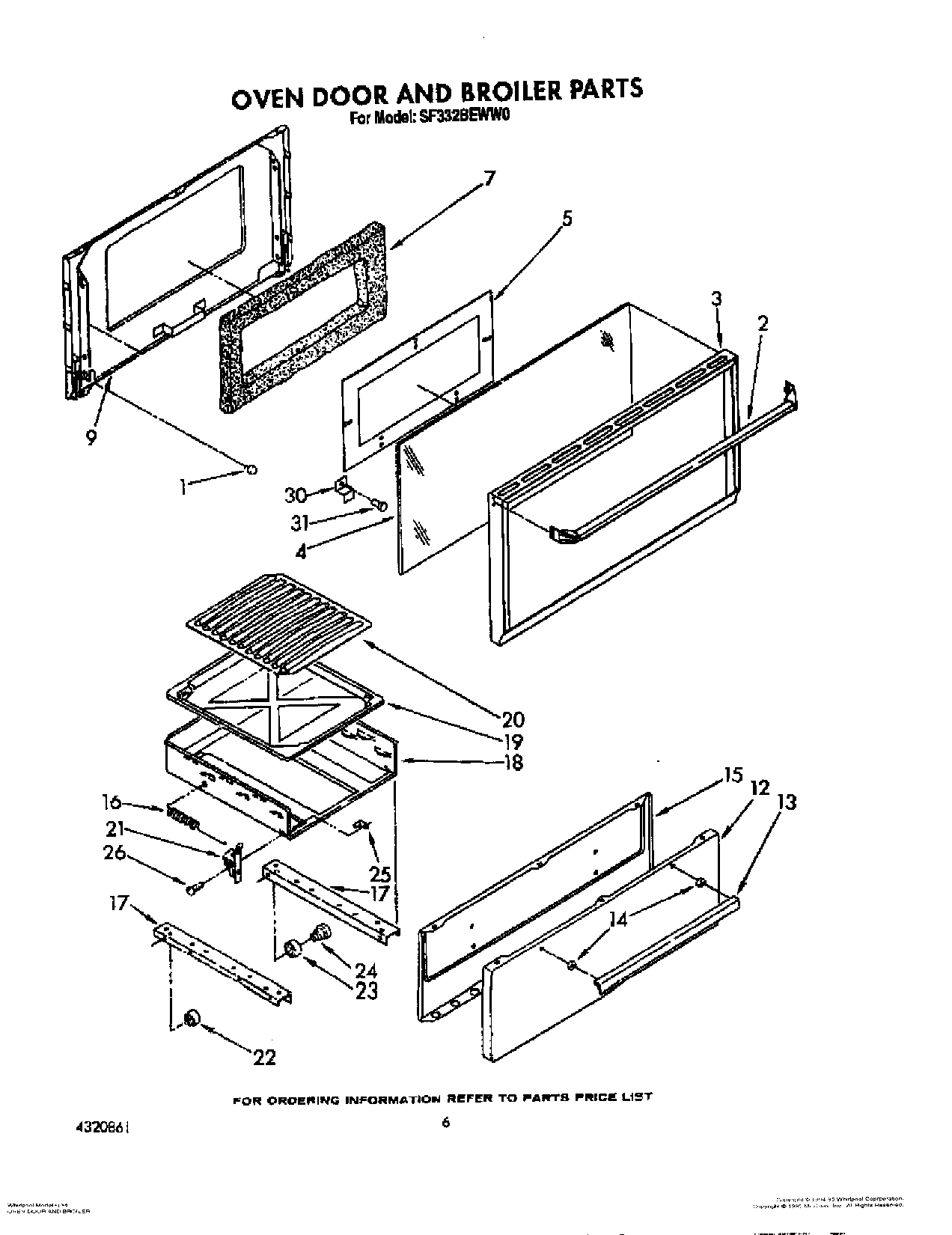

SF332BEWN0 05 – OVEN DOOR AND BROILERadmin2025-04-26T12:25:23+00:00SF332BEWN0 05 – OVEN DOOR AND BROILER
Products
| Position | Product |
|---|
| 1 | Bumper, Rubber (6) |
| 2 | Handle, Door |
| 2 | Screw, 8-18 X 3/8 (4) |
| 3 | Frame, Door |
| 4 | Glass, Outer |
| 5 | Ring, Hold Down |
| 7 | Speed Clip (4) |
| 7 | Insulation |
| 9 | Lining |
| 12 | Panel, Broiler (Almond) |
| 12 | Panel, Broiler (White) |
| 13 | Screw |
| 13 | Handle |
| 14 | Spacer (2) |
| 15 | Liner, Broiler Door |
| 16 | Spring (2) |
| 17 | Track, Upper (2) |
| 18 | Liner, Broiler |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Grid |
| 21 | Hinge, Door (L.H.) |
| 21 | W10080180 Whirlpool Nut |
| 21 | WP308685 Whirlpool Microwave Screw |
| 21 | Hinge, Door (R.H.) |
| 22 | Bumper, Nylon (4) |
| 23 | Roller (2) |
| 24 | Pin, Roller (2) |
| 25 | Plate (2) |
| 26 | Screw (2) |
| 30 | Bracket ``Z`` (8) |
| 31 | Bumper, Rubber (2) |
