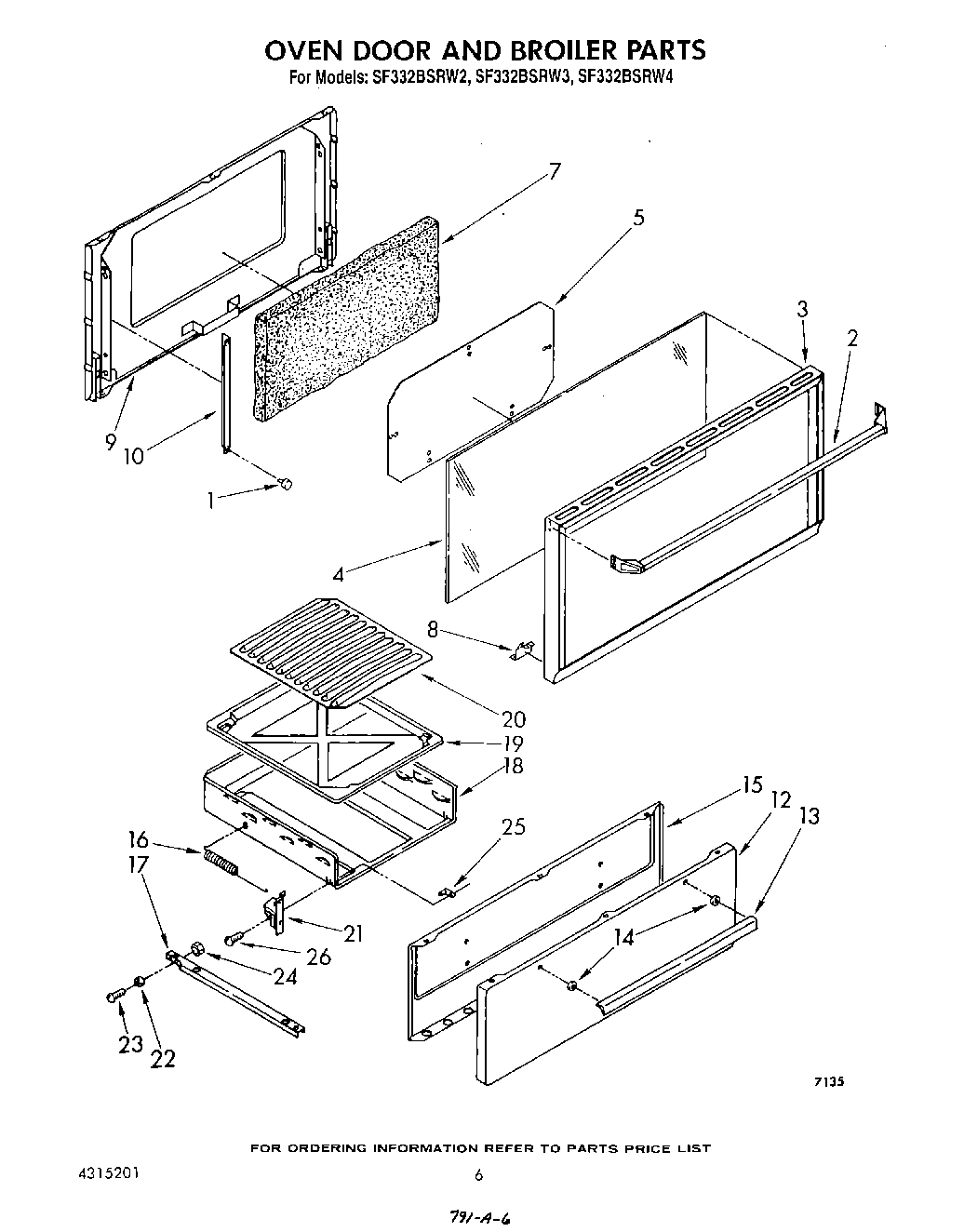

SF332BSRW4 05 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bumper, Rubber (6)
2	Handle, Door
2	Screw, 8-18 X 3/8 (4)
3	Frame, Door
4	Glass
5	Baffle, Door
7	Insulation
8	Support, Glass
8	SCREW
8	Speed Clip (4)
9	Liner, Door
10	Support, Glass (2)
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Handle
13	Screw, 10-12 X 5/8 (2)
13	Washer (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (R.H.)
21	Hinge, Door (L.H.)
21	W10080180 Whirlpool Nut
21	WP308685 Whirlpool Microwave Screw
22	Roller (2)
23	Pin, Roller (2)
25	Plate (2)
26	Screw (2)
