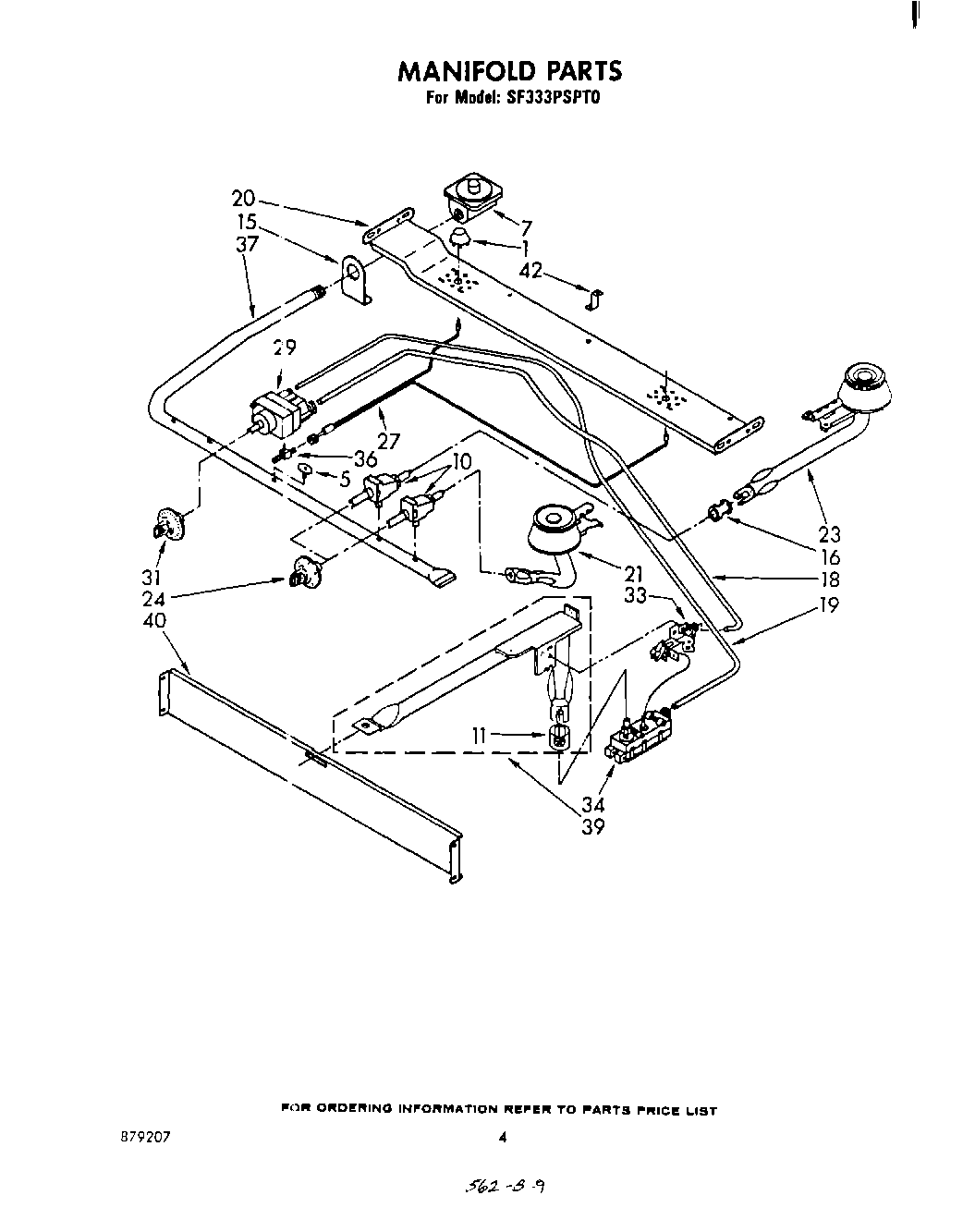

SF333PSPT0 03 – MANIFOLD

Products

Position	Product
1	Cone, Top Lighter (2)
5	Fitting, Flange
7	Regulator, Pressure
10	Valve, Top Burner (4)
11	Shutter, Oven Burner Air
15	Support, Inlet Pipe
16	Cap, Top Burner Air Mixer
18	Tubing, Control/Pilot
19	Tubing, Oven
20	Hanger, Top Burner
21	Burner, Top Front (2) (Includes Illus. 16)
23	Burner, Top Rear (2) (Includes Illus. 16)
24	Handle, Top Valve (4)
27	Lighter, Top Burner
29	Control, Oven
31	Dial, Oven Control
33	Lighter, Oven Burner
34	Valve, Oven Lighter Safety
36	Filter, Top Lighter
37	Pipe, Manifold
39	Burner, Oven
40	Deflector, Heat
42	Support, Burner Hanger
