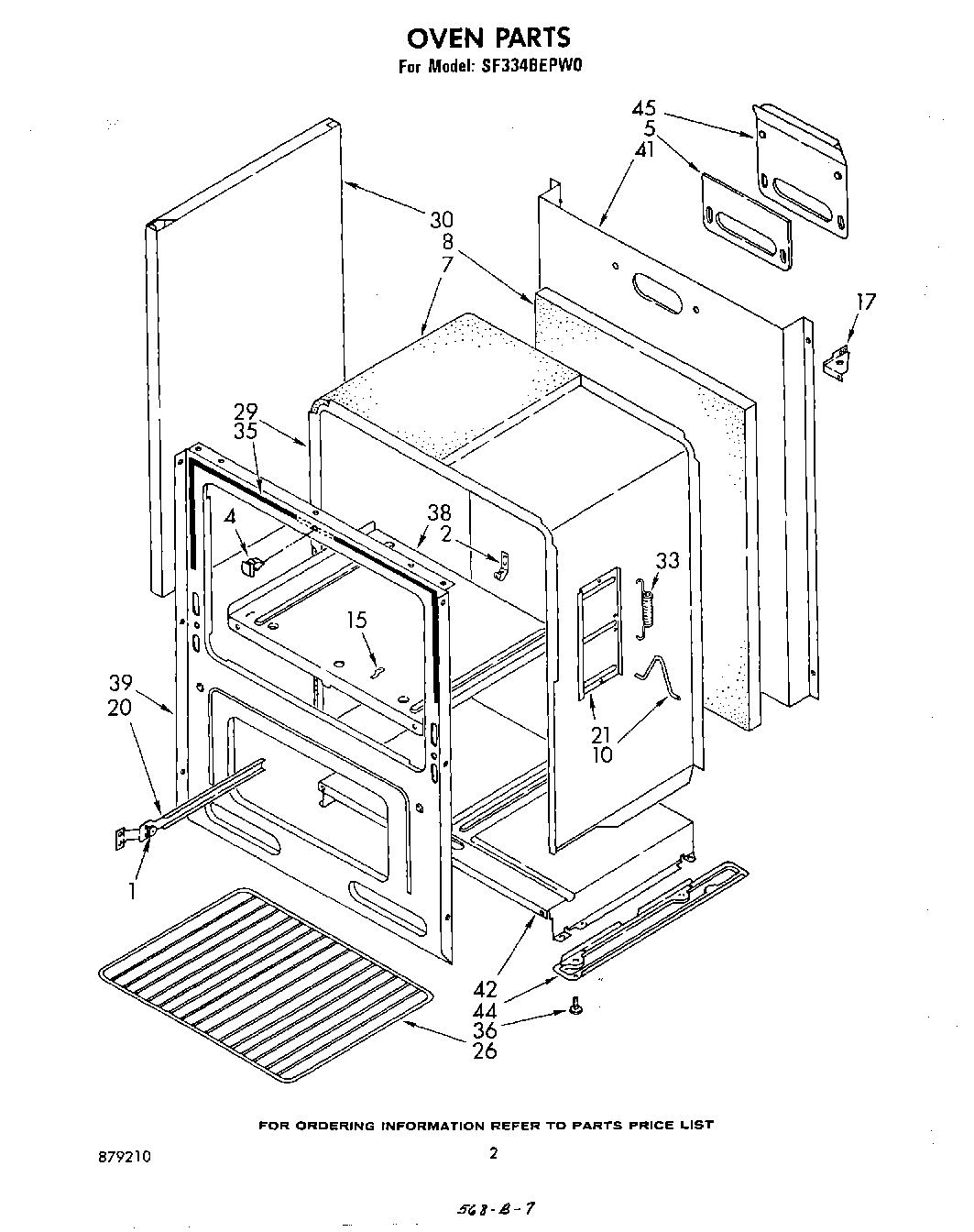

SF334BEPW0 02 – OVEN , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Diagram, Wiring
	Diagram, Installation Instructions
	Guide, Use & Care
	Instructions, Installation
1	Bearing, Roller (4)
4	Clip, Door Seal
5	Gasket, Vent Deflector
7	WPW10208653 Whirlpool Insulation
10	Link, Oven Door Spring (2)
15	Clip, Oven Bottom Plate (2)
17	Bracket, Corner Support (Left Side)
17	Bracket, Corner Support (Right Side)
20	Track, Broiler (Left Side)
20	Track, Broiler (Right Side)
21	Cover, Hinge (2)
26	Rack, Oven (2)
29	Oven 30“ Continuous Clean (Not Serviceable)
30	98005642 Whirlpool Clip
30	Panel, End (2) (White)
30	Panel, End (2) (Almond)
30	Clamp, Wire
33	Spring, Oven Door (2)
35	Seal, Oven Door (Top)
35	Seal, Oven Door (Side (2))
36	Screw, Leveling (4)
38	Plate, Oven Bottom
39	Front, Main
41	Back, Main
42	Bottom, Main
44	Runner, Base (Left Side)
44	Runner, Base (Right Side)
45	Deflector, Vent
