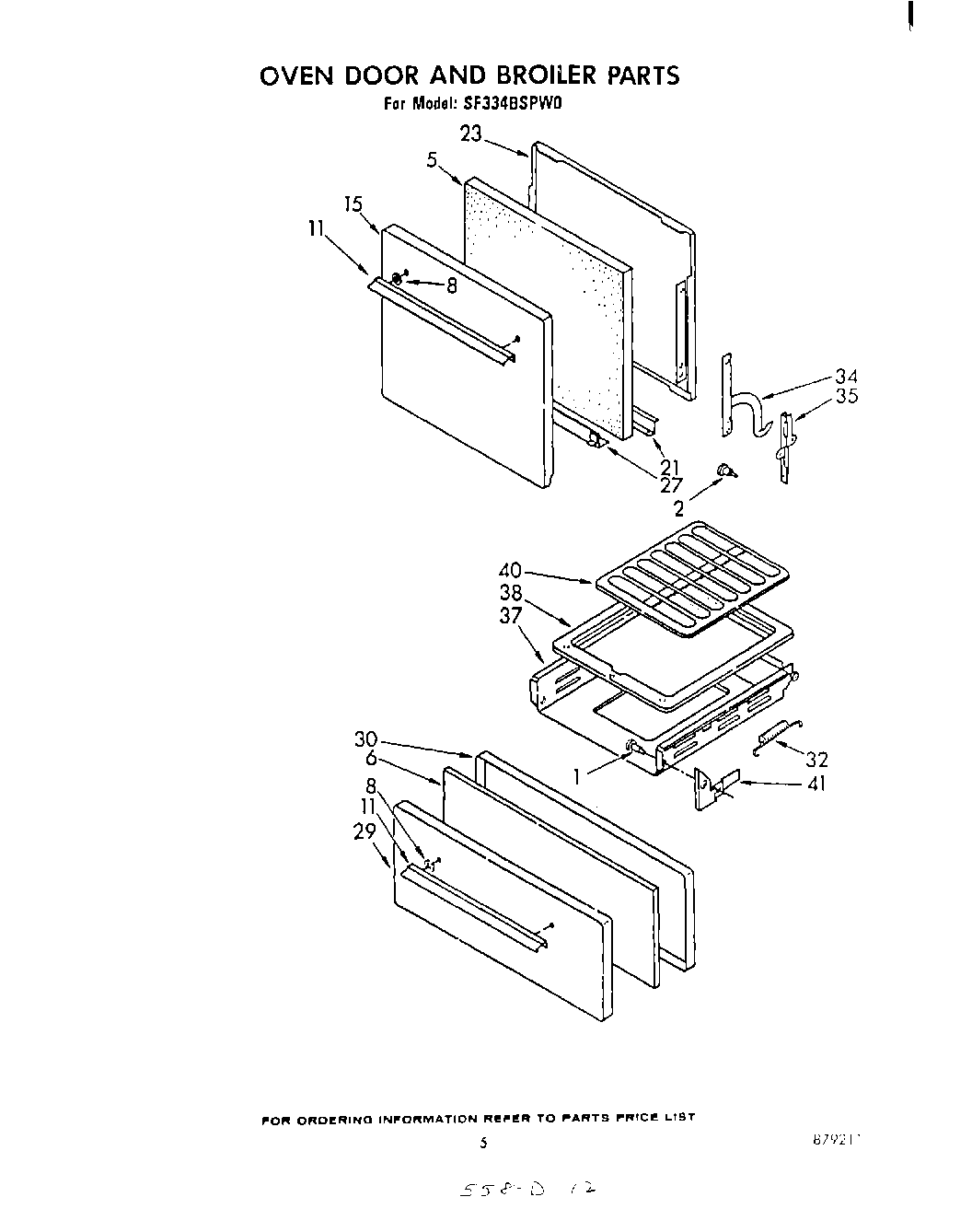

SF334BSPW0 04 – OVEN DOOR AND BROILER

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16
2	Bolt, Shoulder 10-24 x 7/16 (2)
5	WPW10208653 Whirlpool Insulation
6	Insulation, Broiler Door
8	Spacer, Oven Door Handle (2)
11	Handle, Broiler Door
15	Panel, Oven Door (Almond)
15	Panel, Oven Door (White)
15	Panel, Oven Door (Toast)
15	Panel, Oven Door (Platinum)
21	Strip, Door Seal
23	Lining, Oven Door
27	Retainer, Insulation
29	Panel, Broiler Door (White)
29	Panel, Broiler Door (Almond)
29	Panel, Broiler Door (Toast)
29	Panel, Broiler Door (Platinum)
30	Lining, Broiler Door
32	Spring, Broiler Door (2)
34	Hinge, Oven Door (2)
35	Support, Oven Door Hinge (Left Side)
35	Support, Oven Door Hinge (Right Side)
37	Drawer, Broiler
38	Pan, Broiler
40	Tray, Broiler Pan
41	Hinge, Broiler Door (Right Side)
41	Hinge, Broiler Door (Left Side)
