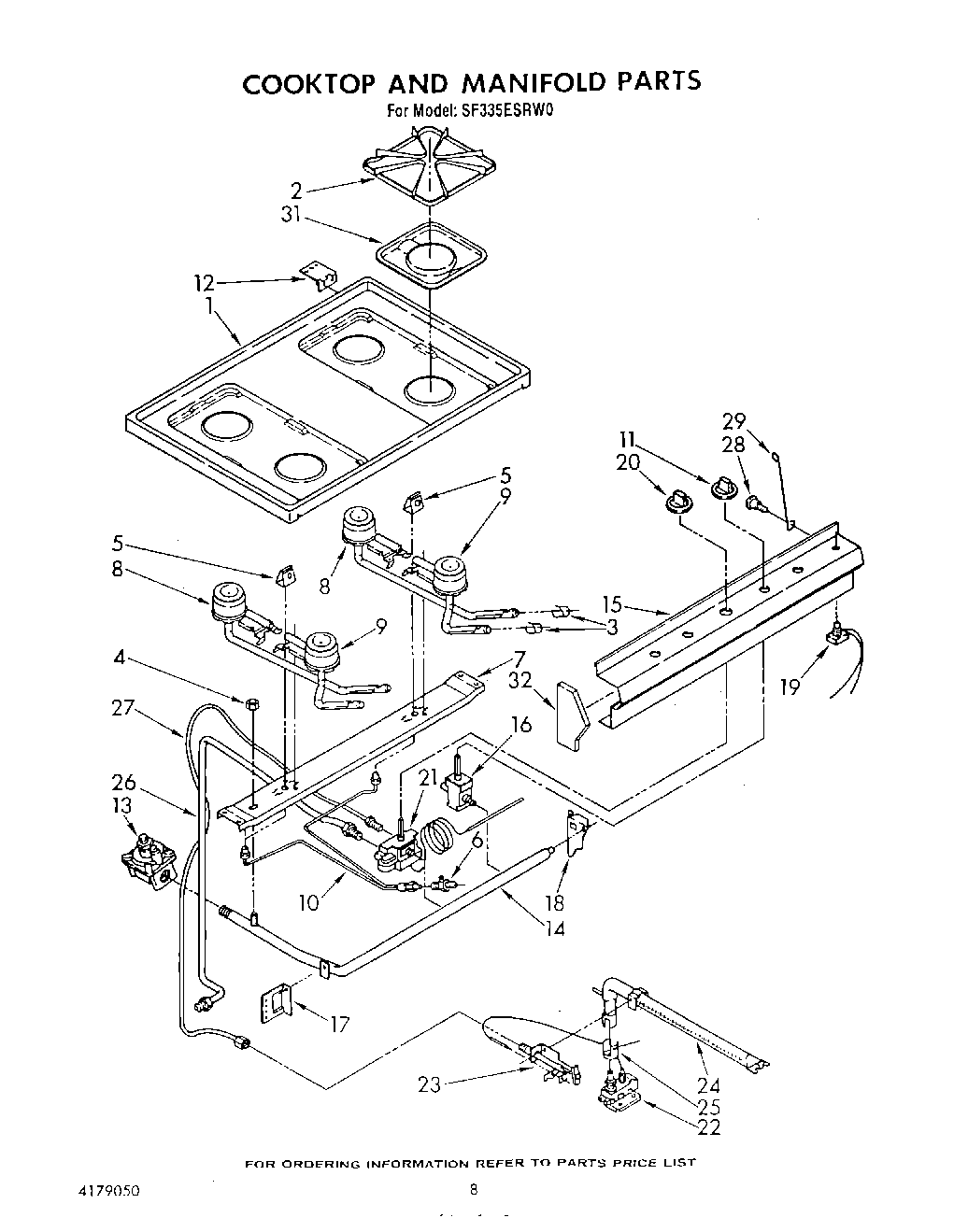

SF335ESRW0 06 – COOK TOP AND MANIFOLD , LITERATURE

SF335ESRW0 06 – COOK TOP AND MANIFOLD , LITERATURE

Written by

in

SF335ESRW0 06 – COOK TOP AND MANIFOLD , LITERATURE

Products

PositionProduct
WPL LIT786735
WPL LIT4157063
Guide, Cooking
List, Repair Parts
1Cooktop (Almond)
1Cooktop (Platinum)
1Cooktop (White)
1Cooktop (Toast)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12SCREW
12Speed Clip (4)
12Hinge, Maintop (2)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 180~ (4)
17Support, Manifold (L.H.)
18WP308685 Whirlpool Microwave Screw
18Support, Manifold (R.H.)
19Switch, Oven Light (2)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat
22Valve, Safety
22WP3387230 Whirlpool Screw
23Screw, 10-24 X 1/4 (1)
23Pilot
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
31WP786333 Whirlpool Drip Bowl
32Endcap (R.H.)
32Endcap (L.H.)
32WPW10208653 Whirlpool Insulation
32FOIL, ALUMINUM OVEN (18“ X 25 )
