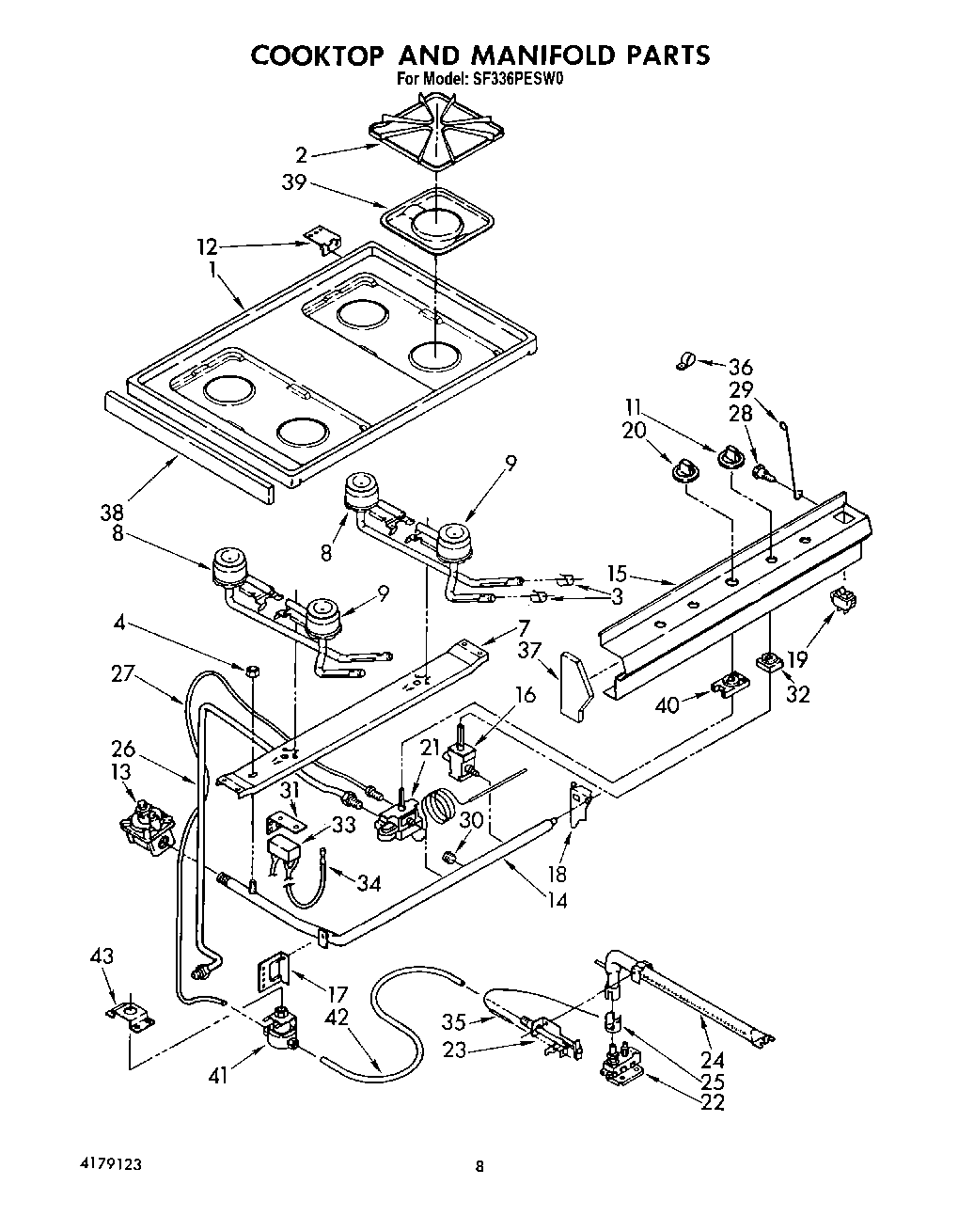

SF336PESW0 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Guide, Cooking
	WPL LIT786735
	WPL LIT4179123
	WPL LIT4179034
1	Cooktop (Toast)
1	Cooktop (Platinum)
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing, (Thermostat To Solenoid)
28	Screw
29	Rod, Support
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	Module, Spark
34	Ignitor (R.H.)
34	Ignitor (L.H.)
35	Ignitor, Oven
36	Strain Relief
37	Endcap (L.H.)
37	Endcap (R.H.)
38	WPL 4157189
39	WP786333 Whirlpool Drip Bowl
40	WP878009 Whirlpool Igniter Switch
41	Valve, Solenoid
42	FOIL, ALUMINUM OVEN (18“ X 25 )
42	WPW10208653 Whirlpool Insulation
42	Tubing, (Solenoid to Burner Pilot)
42	Bracket, Solenoid
