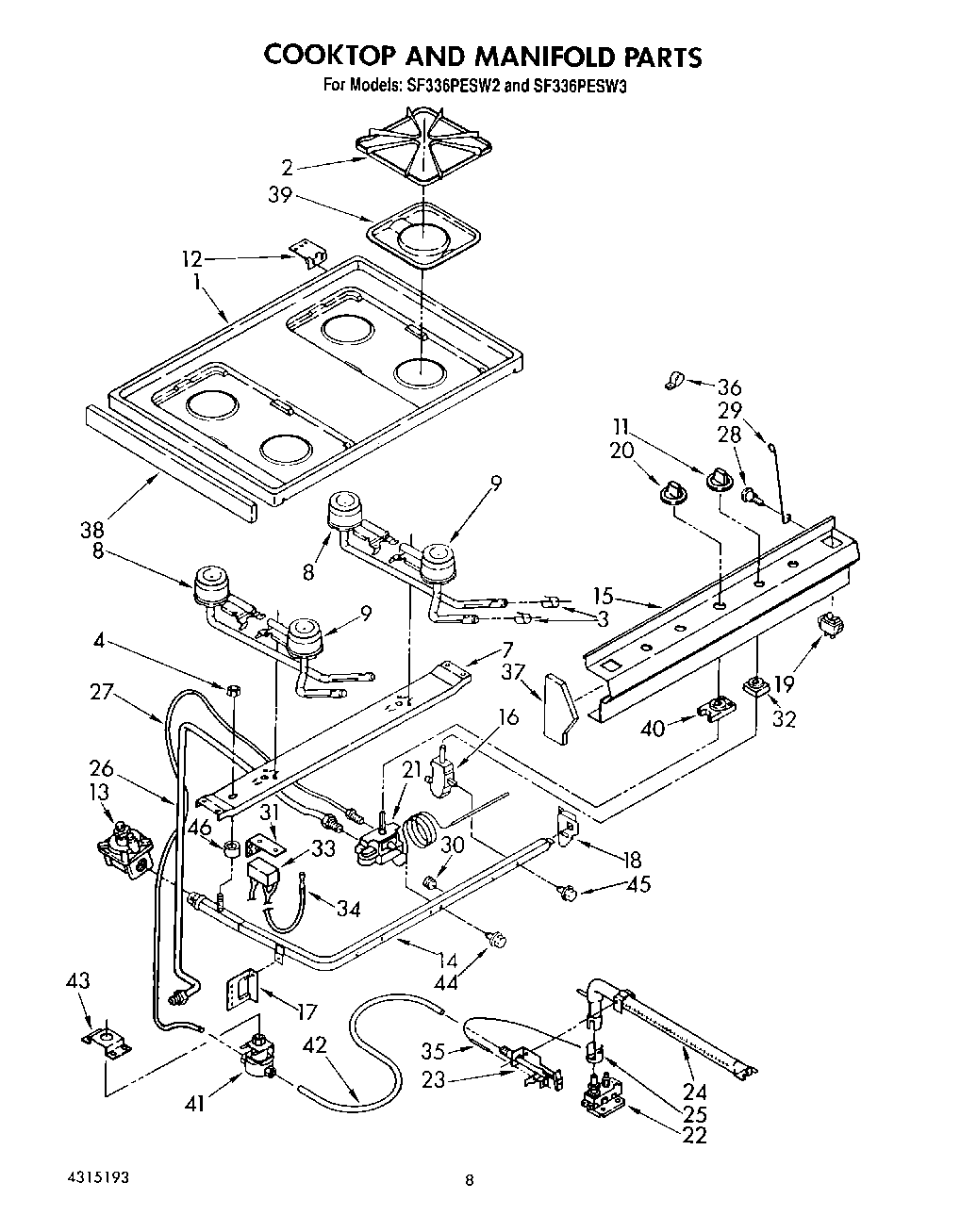

SF336PESW3 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	WPL LIT786735
	Guide, Cooking
	WPL LIT4179034
	WPL LIT4315193
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	WP4179282 Whirlpool Knob
12	SCREW
12	Speed Clip (4)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 180~ (4) (Includes Ill. No. 46)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
19	Switch, Oven Light (2)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 45)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing, (Thermostat To Solenoid)
28	Screw
29	Rod, Support
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	Module, Spark
34	Ignitor (L.H.)
34	Ignitor (R.H.)
35	Ignitor, Oven
36	Strain Relief
37	Endcap (R.H.)
37	Endcap (L.H.)
38	WPL 4157189
39	WP786333 Whirlpool Drip Bowl
40	WP878009 Whirlpool Igniter Switch
41	Valve, Solenoid
42	Tubing, (Solenoid to Burner Pilot)
43	Bracket, Solenoid
44	Bolt, Thermostat Mounting (2)
45	Bolt, Valve Mounting
46	Spacer, Manifold
46	FOIL, ALUMINUM OVEN (18“ X 25 )
46	WPW10208653 Whirlpool Insulation
