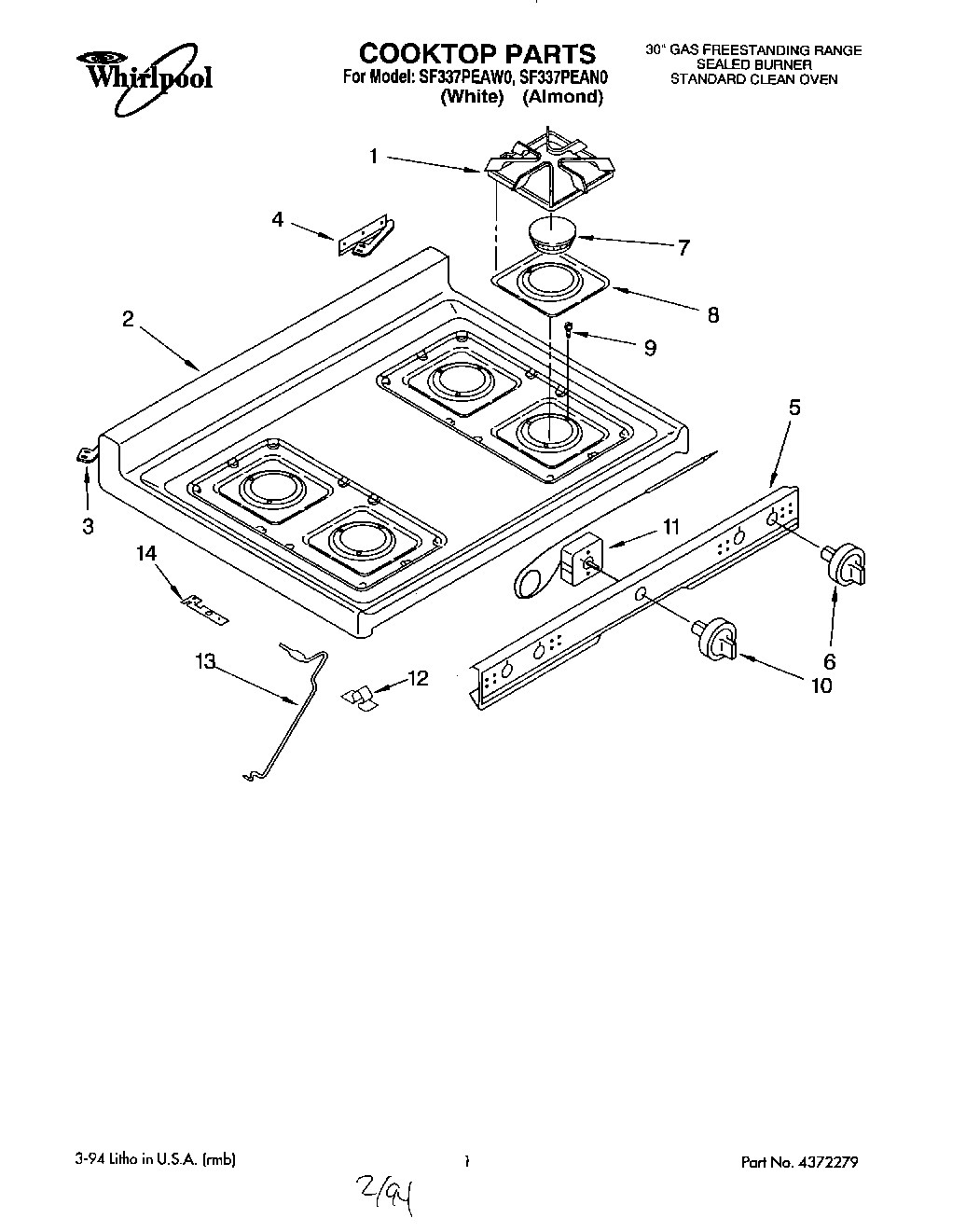

SF337PEAN0 01 – COOKTOP

Products

PositionProduct
1Grate
2Top, Main (Almond)
2Top, Main
3Bracket, Hinge (Left Side)
4Bracket, Hinge (Right Side)
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (4)
8Pan, Burner (4)
9Screw, Burner Mtg.
10Knob, Thermostat
11Thermostat, Oven
12Clip, Top Mtg.
13Rod, Support Top
14Bracket, Mounting (L.H.)
14Bracket, Mounting (R.H.)
