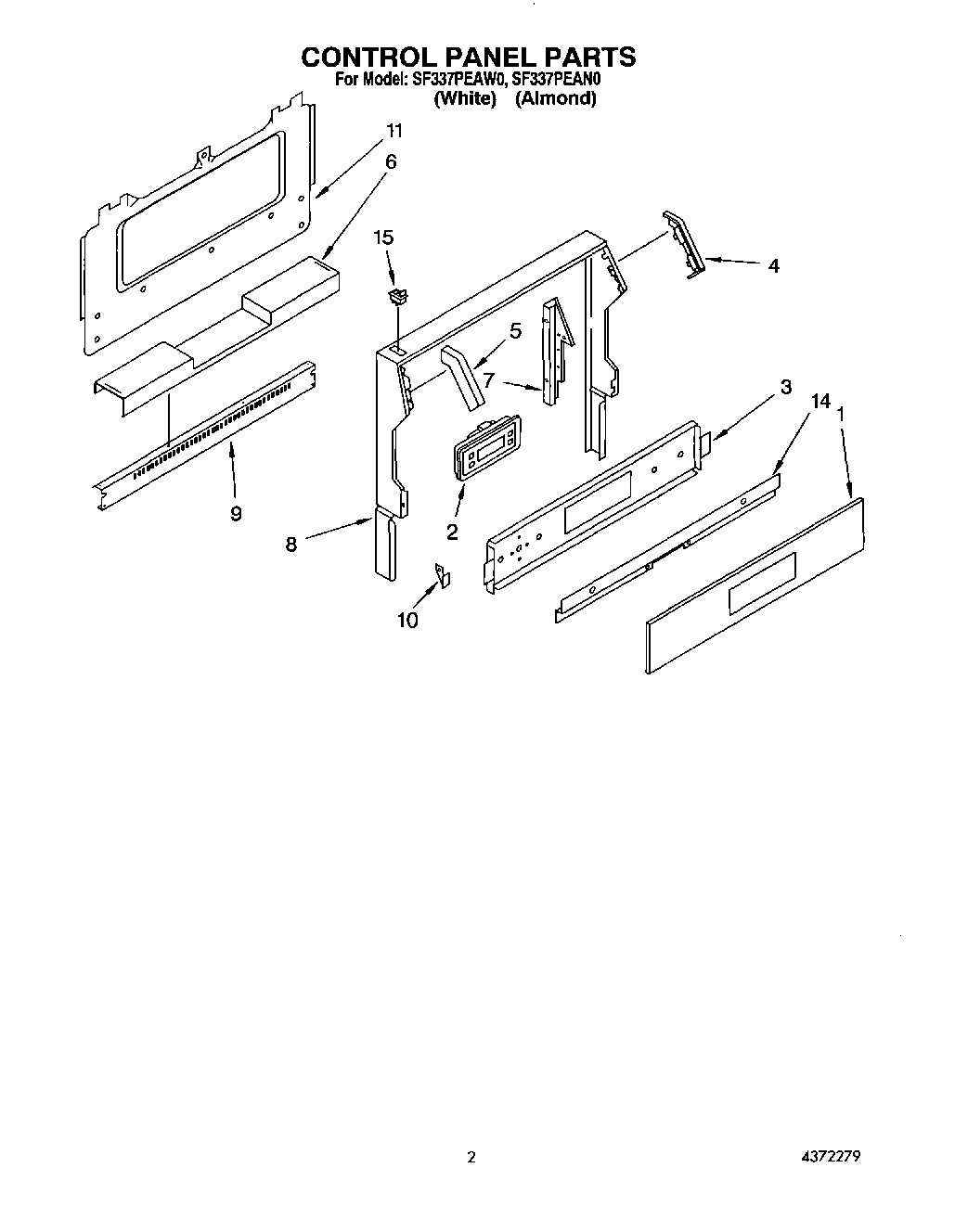

SF337PEAN0 02 – CONTROL PANEL, LITERATURE

SF337PEAN0 02 – CONTROL PANEL, LITERATURE

Written by

in

SF337PEAN0 02 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Instructions, Installation
Guide, Use & Care
1Panel, Control
2Clock, Electronic
3Plate, Timer Mounting
4Cap, End (R.H.)
5Cap, End (L.H.)
6Deflector, Flue
7Support, Control Panel (L.H.)
7Support, Control Panel (R.H.)
8Trim, Wrapper
9Trim, Vent
10Cap, Filler
11Shield, Rear Wall
14Retainer, Timer
15WP4314961 Whirlpool Lite Switch
