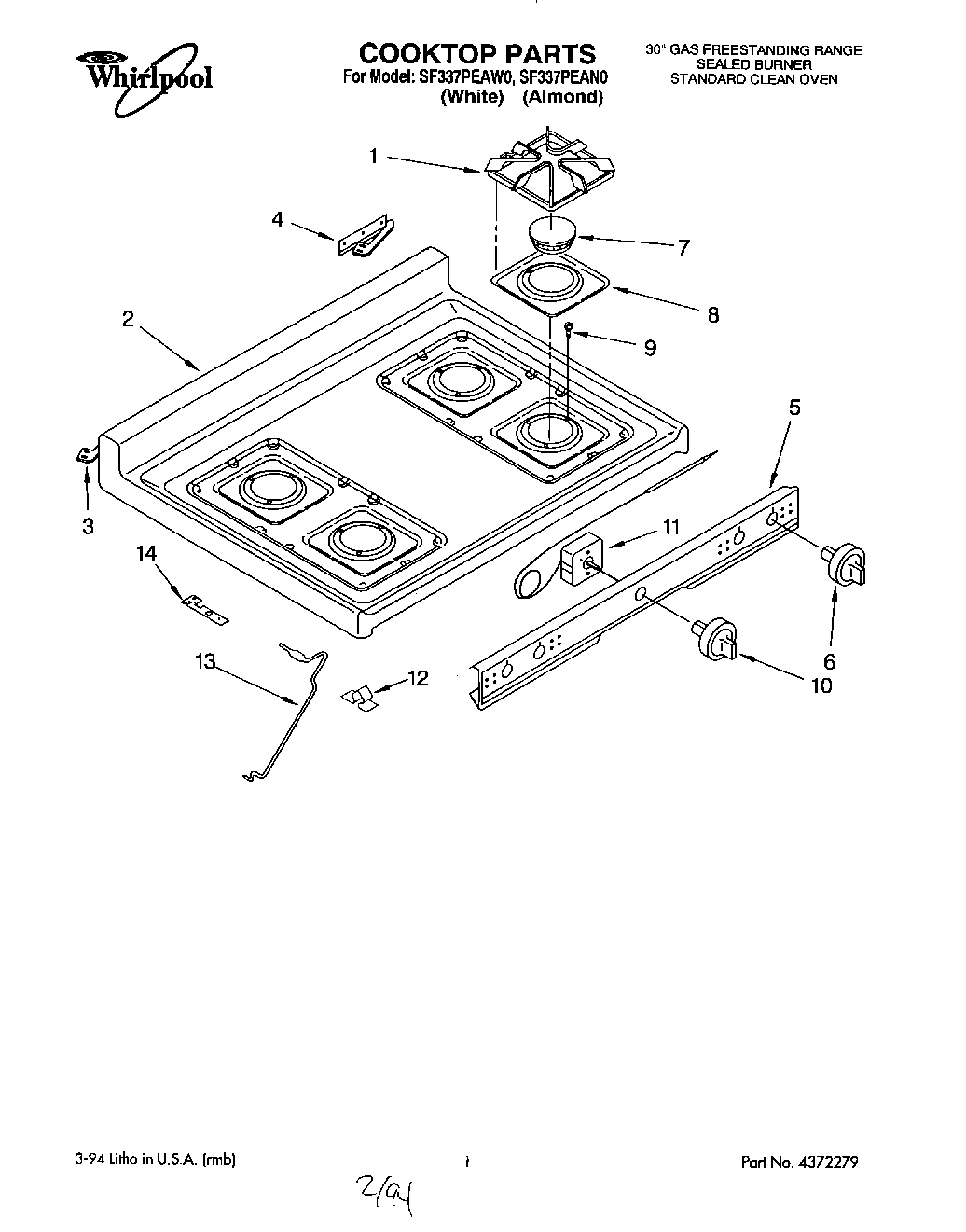

SF337PEAW0 01 – COOKTOP

SF337PEAW0 01 – COOKTOP

Written by

in

SF337PEAW0 01 – COOKTOP

Products

Position	Product
1	Grate
2	Top, Main (Almond)
2	Top, Main
3	Bracket, Hinge (Left Side)
4	Bracket, Hinge (Right Side)
5	Panel, Manifold
6	Knob, Control (4)
7	Cap, Burner (4)
8	Pan, Burner (4)
9	Screw, Burner Mtg.
10	Knob, Thermostat
11	Thermostat, Oven
12	Clip, Top Mtg.
13	Rod, Support Top
14	Bracket, Mounting (L.H.)
14	Bracket, Mounting (R.H.)
