SF340BEHB1 05 – DRAWER & BROILER

SF340BEHB1 05 – DRAWER & BROILER

Written by

in

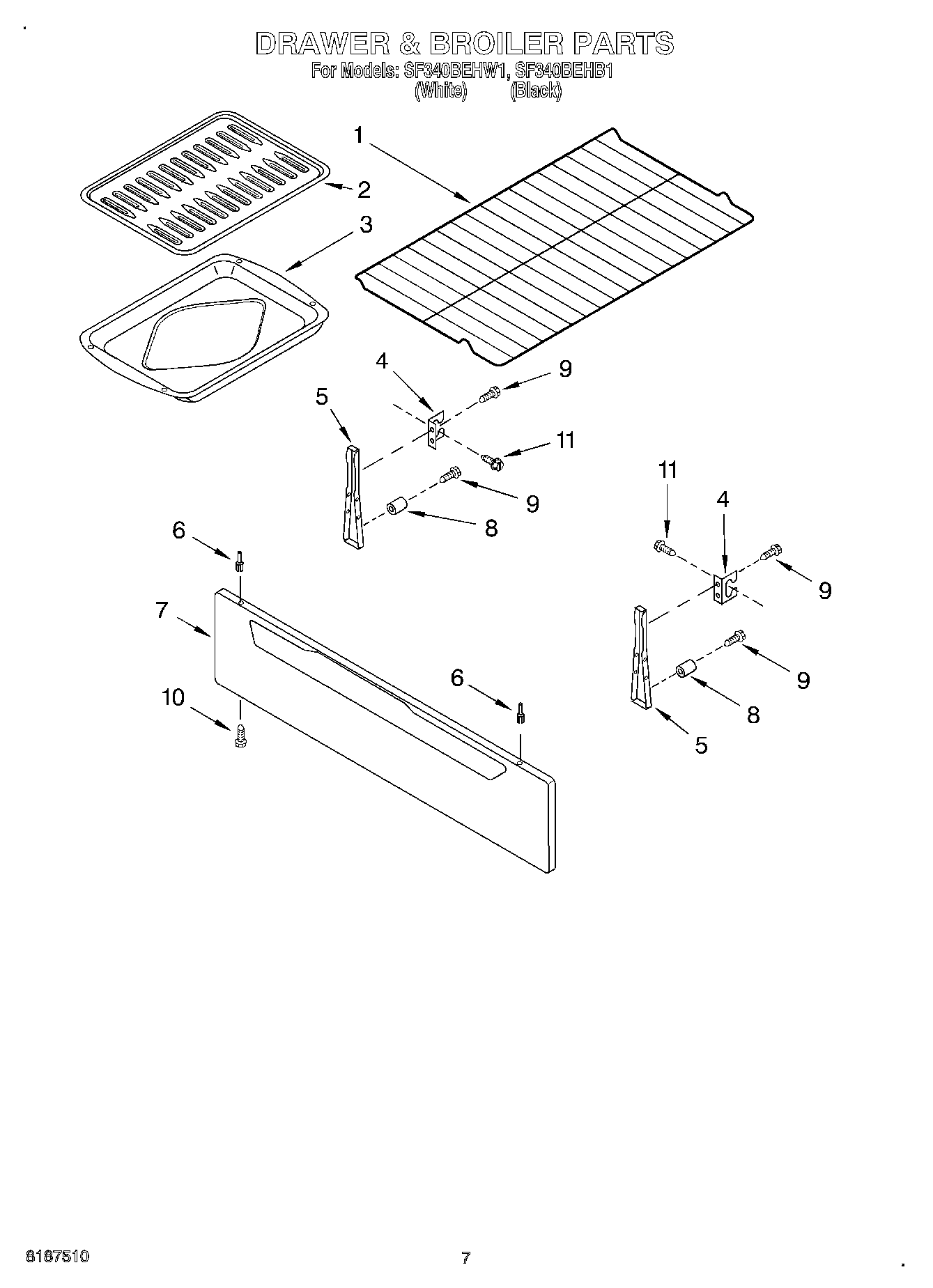

SF340BEHB1 05 – DRAWER & BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Bracket, Toe Panel
5BRKT-MNTG
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7Toe Panel (White)
7Toe Panel (Black)
8W10877054 Whirlpool Spacer Assembly
9WP3196175 Whirlpool Screw
10WP3400832 Whirlpool Screw
113196265 Whirlpool Oven Screw
