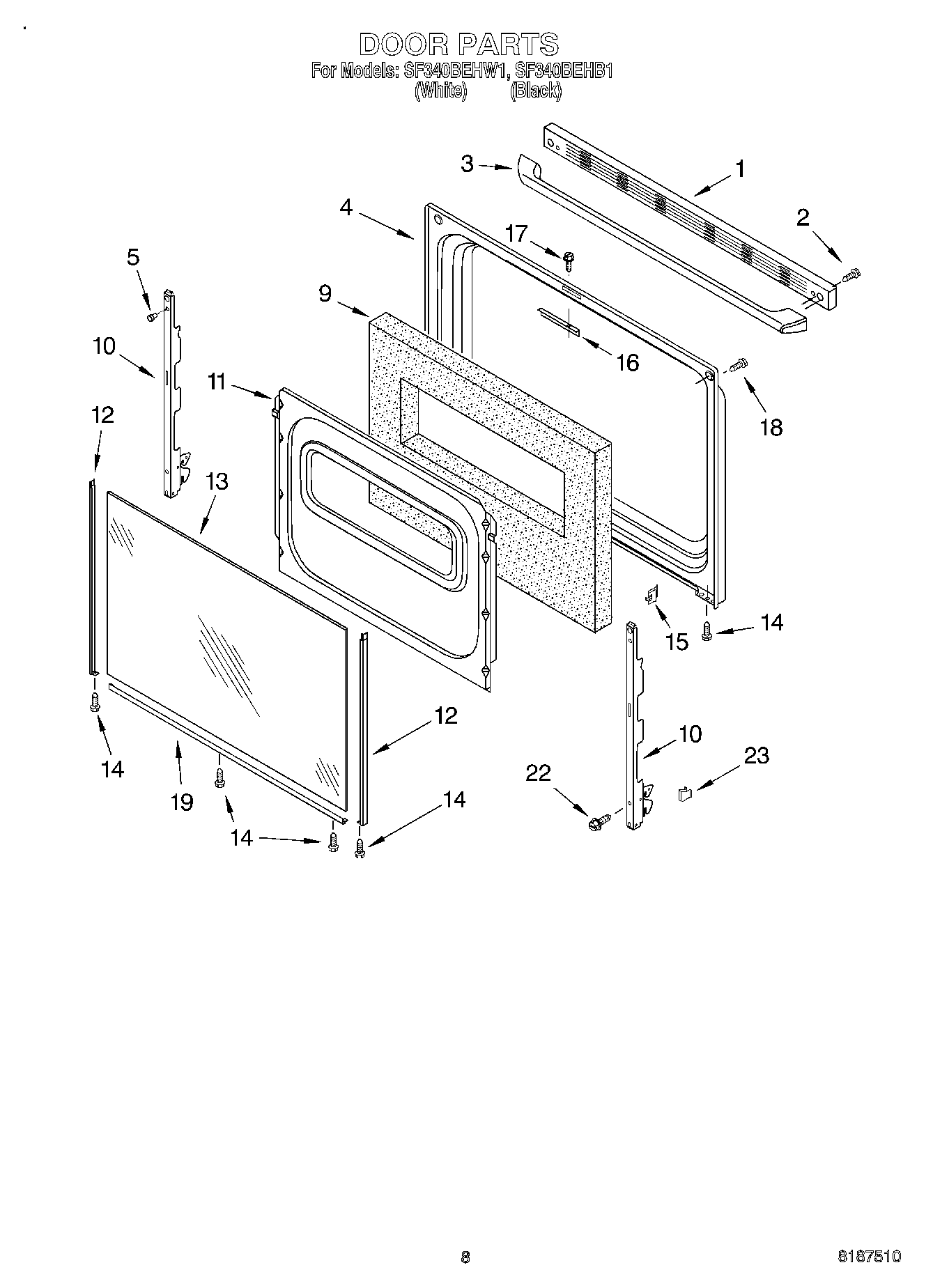

SF340BEHB1 06 – DOOR

Products

Position	Product
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	238614 Whirlpool Bumper Hinge
9	WPW10278991 Whirlpool Insulation
10	Hinge, Door (2)
11	W11699790 Whirlpool Retainer
13	Glass, Door (Black)
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	8184858 Whirlpool Door Trim
22	WP3196175 Whirlpool Screw
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	Grease
23	3196696 Whirlpool Clip
23	8212471 Whirlpool Oven Paint
23	1
23	Wire (14 Ga. 200 c Brown)
23	WPL 8272463
23	3196896 Whirlpool Clip
23	WPL 8053527
23	WPL 8054085
23	WPL 8054086
23	WPL 8273341
23	WPL 8273974
23	511873 Whirlpool Refrigerator Paint
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	4392901 Whirlpool Biscuit Spray Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	350942 Whirlpool Spray Paint
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	285006 Whirlpool Spray
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	16515 Whirlpool Clip
23	3400964 Whirlpool Oven Clip
23	WP3196925 Whirlpool Clip Assembly
23	814381 Whirlpool Pin
23	350930 Whirlpool White Spray Paint
