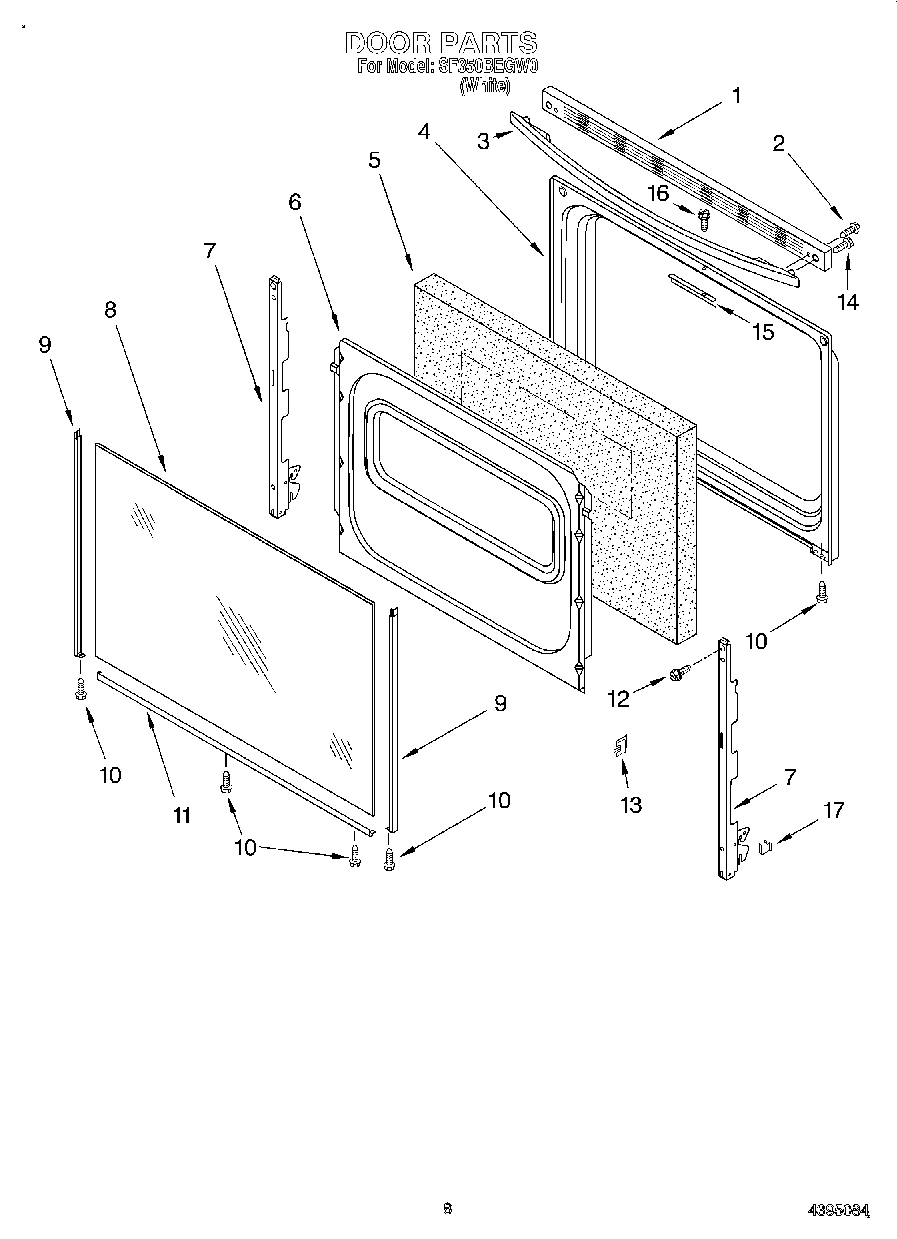

SF350BEGW0 06 – DOOR, LIT/OPTIONAL

SF350BEGW0 06 – DOOR, LIT/OPTIONAL

Written by

in

SF350BEGW0 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT8053374
	Literature Parts (Tech Sheet)
	3196896 Whirlpool Clip
	Literature (Installation, Instructions (Template))
	WPL 8053527
	814381 Whirlpool Pin
	3400964 Whirlpool Oven Clip
	16515 Whirlpool Clip
	WPL LIT8053708
	WPL 8053590
	Safer Cooking Tips
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	W11699790 Whirlpool Retainer
7	Hinge, Door (2)
8	Glass, Door (Black)
10	W10491985 Whirlpool Screw
11	8184858 Whirlpool Door Trim
12	238614 Whirlpool Bumper Hinge
13	Clip, Glass (4)
14	WP179051 Whirlpool Screw
15	Bracket, Latch
16	WP3400832 Whirlpool Screw
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	LP Conversion Kit (Nat to LP)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (12 Ga. 150 c Black)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	8212471 Whirlpool Oven Paint
17	Grease
17	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	WPL 72112
17	Platinum (Uncut)
17	Enamal, Toast (1 Qt. Uncut)
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest (Uncut)
17	Golden Harvest
17	72113 Whirlpool Touch-Up Paint
17	Almond (Uncut)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	350942 Whirlpool Spray Paint
17	511873 Whirlpool Refrigerator Paint
17	242831 Whirlpool Oven Wire
17	WP3196925 Whirlpool Clip Assembly
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	285006 Whirlpool Spray
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	350930 Whirlpool White Spray Paint
