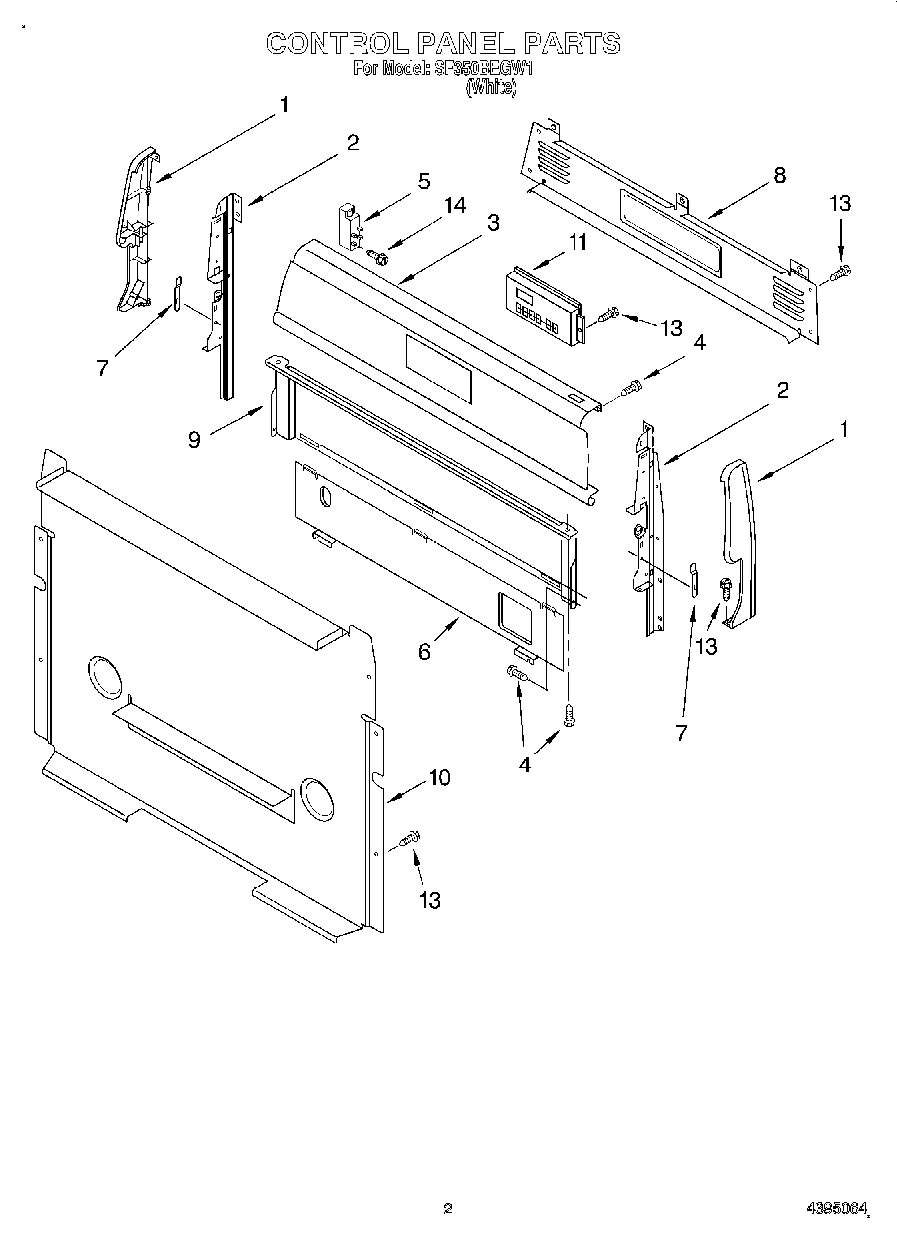

SF350BEGW1 02 – CONTROL PANEL

SF350BEGW1 02 – CONTROL PANEL

Written by

in

SF350BEGW1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
5Module Spark Reignition
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Control, Range (Black)
13SCREW
14WPY706189 Whirlpool Stove Screw
