SF350BEGW5 03 – MANIFOLD

SF350BEGW5 03 – MANIFOLD

Written by

in

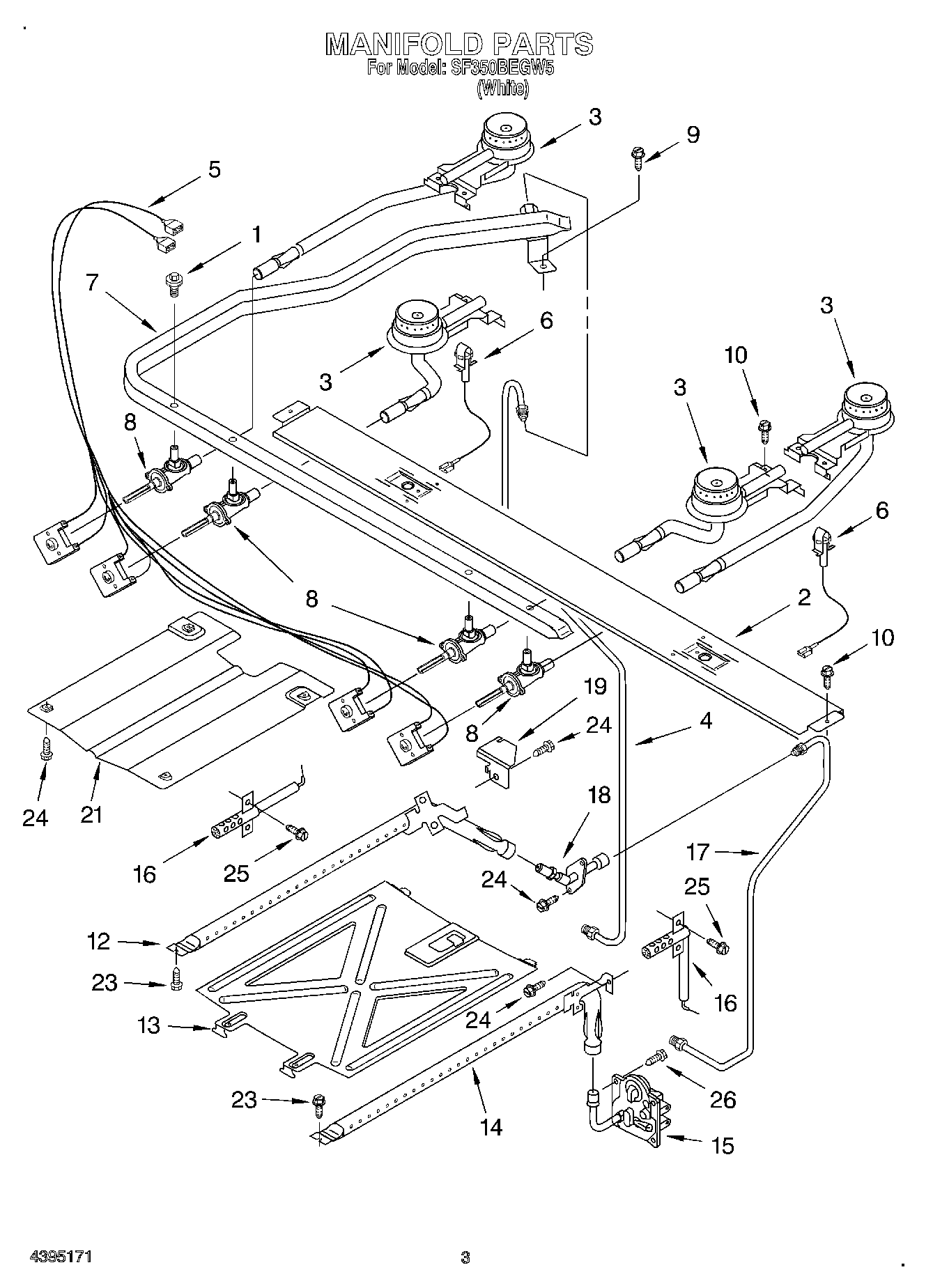

SF350BEGW5 03 – MANIFOLD

Products

PositionProduct
1WP3186217 Whirlpool Screw
2Support, Burner
3Burner (Left Rear)
3Burner, Left Front
3Burner (Right Front)
3Burner (Right Rear)
4Tubing (Manifold to Regulator)
5Harness, Igniter (W/Switches)
6Igniter, Surface (Right Hand)
6Ignitor, Surface (Left)
7Pipe, Manifold
8Valve, Burner (4)
10W10491985 Whirlpool Screw
12WP8054078 Whirlpool Broiler Burner
13Spreader, Flame (Oven)
148190618 Whirlpool Gas Range Oven Burner Assembly with Spark Igniter
15WPW10293048 Whirlpool Gas Valve
16WP8054129 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19Cover, Igniter
21W10137062 Whirlpool Burner Baffle
233196265 Whirlpool Oven Screw
24SCREW
25W11684507 Whirlpool Screw
26WP3400861 Whirlpool Screw
26LP Conversion Kit (Nat to LP)
26Spud Kit-Set of 4 (LP to Nat)
