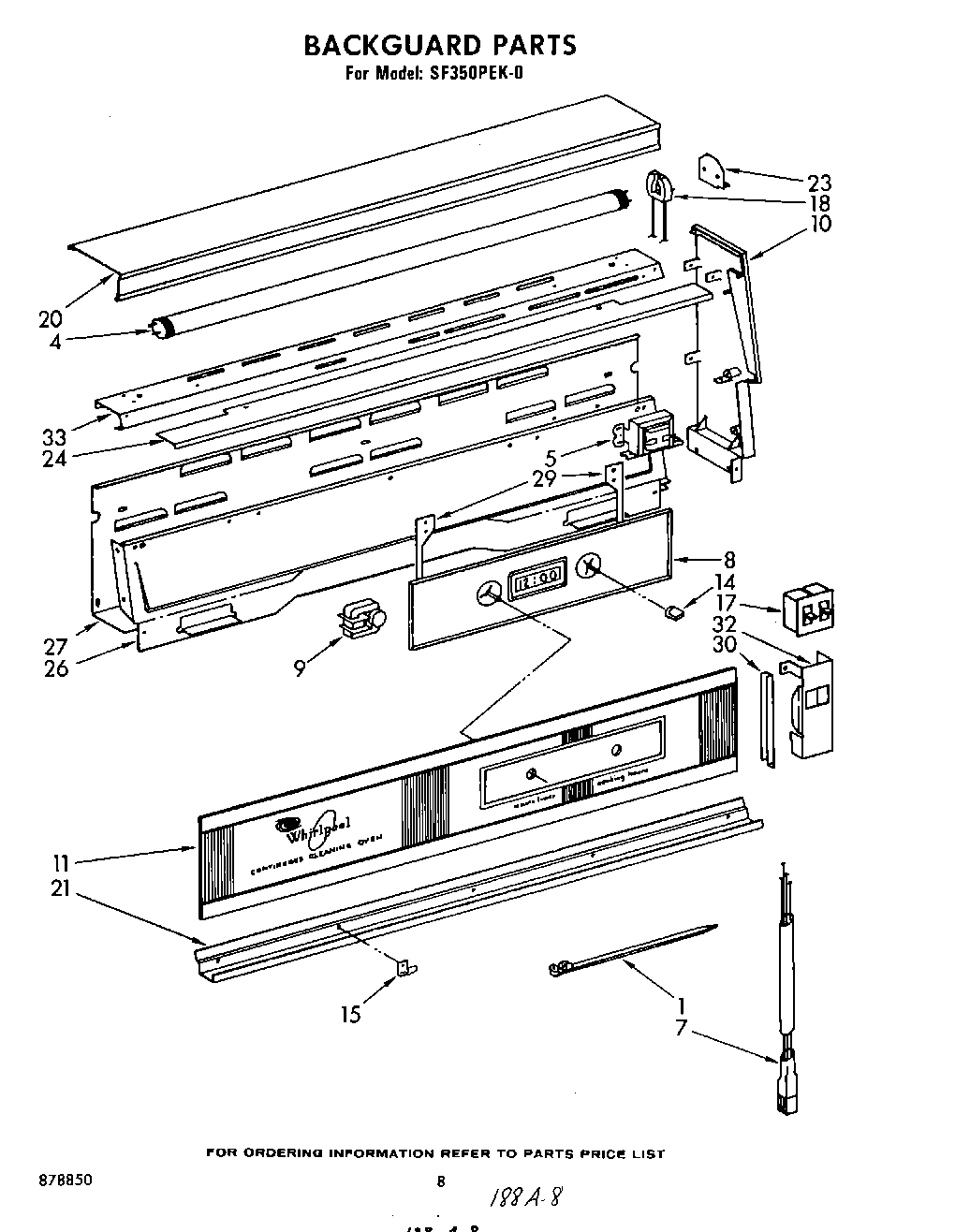

SF350PEK0 05 – BACKGUARD

Products

Position	Product
1	Clamp, Wire
4	WP95292 Whirlpool Fluorescent Light Bulb
5	Ballast, Fluorescent Light
7	Block, Disconnect Pin
8	Clock, Automatic (Includes Illus. 9)
9	Motor, Timer
10	Cap, End (Right Side)
10	Cap, End (Left Side)
11	Glass, Backguard
14	Knob, Clock (2)
15	Spacer, Backguard Glass (2)
17	Switch, Combination
18	Socket, Fluorescent Light (Right Side)
18	Socket, Fluorescent Light (Left Side)
20	Trim, Backguard Top
21	Trim, Backguard Bottom
23	Bracket, Brackguard Lampholder (Right Side)
23	Bracket, Brackguard Lampholder (Left Side)
24	Retainer, Glass
26	Panel Backguard (Almond)
26	Panel Backguard (Harvest Gold)
26	Panel Backguard (Coffee)
26	Panel Backguard (Platinum)
26	Panel Backguard (Toast)
26	Panel Backguard (White)
27	Cover, Backguard Wire
29	Support, Clock (Left Side)
29	Support, Clock (Right Side)
30	Trim, Backguard Glass (2)
32	Plate, Switch
33	Brace, Backguard
