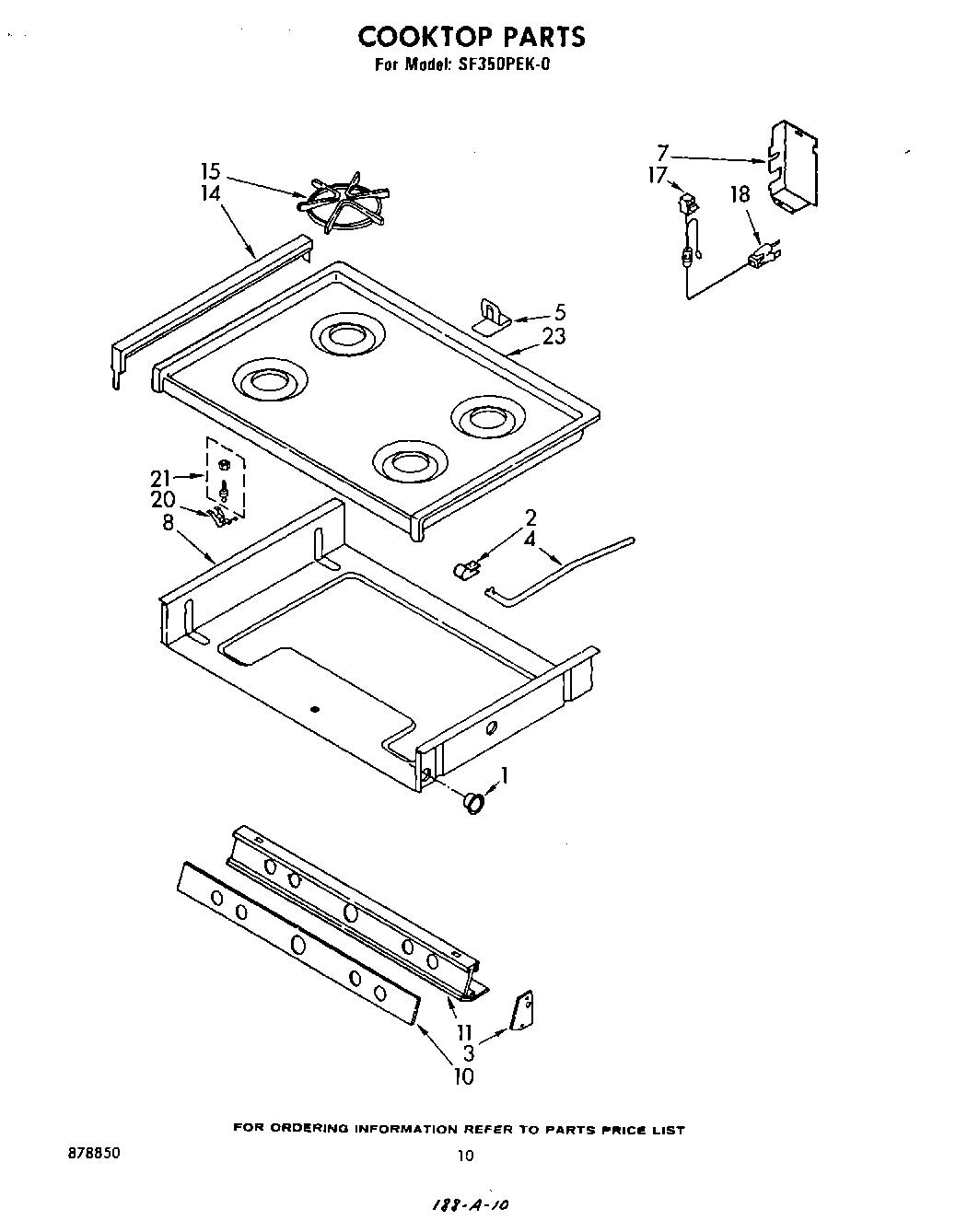

| 1 | Bushing, Snap |
| 2 | Clamp, Top Stop |
| 3 | End, Manifold Panel (Right Hand) |
| 3 | End, Manifold Panel (Left Hand) |
| 4 | Stop, Cook Top |
| 5 | Spacer, Main Top |
| 7 | Cover, Wire |
| 8 | Bottom, Burner Box |
| 10 | Inlay, Manifold Panel |
| 11 | Panel, Manifold |
| 14 | Trim, Main Top (Right Side) |
| 14 | Trim, Main Top (Left Side) |
| 15 | Grate, Burner (4) |
| 17 | Block, Disconnect Socket |
| 18 | Cord, Extension |
| 20 | Catch, Main Top (2) |
| 21 | Strike, Main Top (2) |
| 23 | Top, Main (Brushed Chrome) |
| 23 | Top, Main (Harvest Gold) |
| 23 | Top, Main (Coffee) |
| 23 | Top, Main (White) |
| 23 | Top, Main (Platinum) |
| 23 | Top, Main (Toast) |
| 23 | Top, Main (Almond) |
